导波雷达测量
行程时间原理
Levelflex FMP51

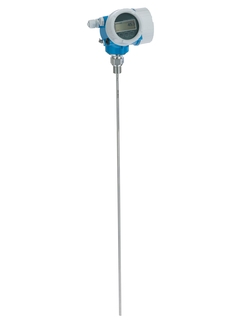

Levelflex FMP51 螺纹连接 ©Endress+Hauser

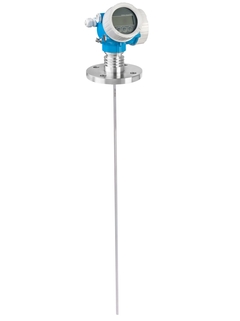

Levelflex FMP51 法兰连接 ©Endress+Hauser

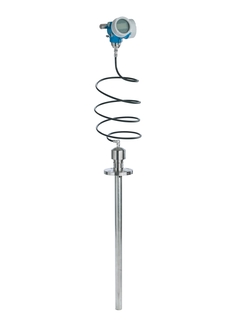

Levelflex FMP51 可拆分外壳,法兰直径 50 ©Endress+Hauser

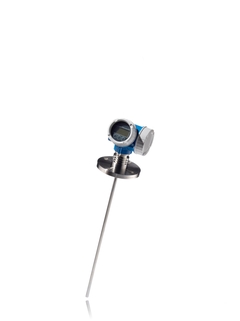

Levelflex FMP51特写 ©Endress+Hauser

满足液位测量最高要求的标准传感器

Levelflex FMP51适用于过程工业极端工况下的液位测量,如高温、高压等场合。即使液面出现波动、产生泡沫或当储罐内有障碍物产生干扰时,FMP51也能保持最稳定的测量值。Levelflex FMP51用于液体、浆料和泥浆的连续物位测量以及界面测量。测量值不受介质变化、温度变化、气体覆盖或蒸汽的影响。

  • 优势

    • 即使在多变的测量产品或过程条件下,依然保持可靠测量

    • HistoROM集成数据存储单元,带来快速便捷的调试、维修和诊断

    • 多回波追踪创新技术,为测量结果带来高度可靠性

    • 硬件与软件根据IEC 61508标准开发,达到SIL3级别

    • 心跳技术,在整个生命周期内实现高效、安全的工厂运营

    • 无缝集成到控制或资产管理系统,直观的引导式操作概念(现场或通过控制系统)

    • 通过世界权威的SIL和WHG实验认证,节约您的时间与经济成本

  • 应用领域

    可选择杆式、缆式或同轴杆测量。

    • 过程连接:始于¾" 螺纹或法兰

    • 温度:-40 到 +200°C (-40 到 +392°F)

    • 压力:-1 到 +40bar (-14.5 到 +580psi)

    • 最大测量范围:杆式 10m (33ft), 缆式 45m (148ft), 同轴杆 6m (20ft)

    • 精度误差: ±2mm (0.08")

    • 国际防爆保护认证, WHG溢出保护, SIL,船用认证,5-点线性协议

特征和规格

返回

Details

  • 测量原理

    导波雷达

  • 特点/应用

    Premium精度的设备
    杆式探头、缆式探头、同轴探头
    内置数据存储单元,出厂预标定,可靠测量:波动液面+泡沫,变化介质

  • 界面测量

    清晰的液/液界面;
    同时测量界面和总液面高度

  • 特点

    Heartbeat Technology,

    Bluetooth® commissioning,

    Operation and maintenance SmartBlue App,

    HistoROM,

    RFID TAG for easy identification

  • 电源/通信

    两线制(HART、PROFIBUS PA、FOUNDATION Fieldbus)
    四限制(HART)

  • 测量精度

    杆式探头:+/- 2 mm (0.08 in)
    缆式探头<= 15 m (49 ft): +/- 2 mm (0.08 in)

    Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)
    同轴探头:+/- 2 mm (0.08 in)

  • 环境温度

    -50...+80 °C
    (-58...+176 °F)

  • 过程温度

    -50...+200 °C
    (-58...+392 °F)

  • 过程压力(绝压)/最大过压限定值

    真空...40 bar
    (真空...580 psi)

  • 主要接液部件

    杆式探头:
    316L、Alloy C合金、陶瓷
    缆式探头:
    316、316L、Alloy C合金、陶瓷
    同轴探头:
    316L、Alloy C合金、陶瓷、PFA

  • 过程连接

    螺纹:
    G3/4...G1 1/2、
    MNPT 3/4...MNPT1 1/2
    法兰:
    ASME 1 1/2"...8"、
    DN50...DN 200、
    JIS 10K

  • 传感器长度

    杆式探头:10 m (33 ft)
    缆式探头:45 m (148 ft)
    同轴探头:6 m (20 ft)

  • 最大测量距离

    杆式探头: 10 m (33 ft);最小介电常数DK>1.6
    缆式探头: 25...30 m (82...98 ft);最小介电常数DK>1.6;
    30...45 m (98...148 ft);最小介电常数DK >1.9
    同轴探头;最小介电常数DK>1.4

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、KC、EAC

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN 10204-3.1
    NACE MR0175,MR0103
    ASME B31.1,B31.3
    AD2000

  • 船级认证

    GL、ABS、LR、BV、DNV

  • 选项

    分体式传感器,带3 m (9 ft)电缆
    气密馈通

  • 应用限制

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 19
    • Nr 19 Order code 71115174

      外壳过滤塞(304)

      Consists of: 2x filter plug metall 316L. 1x pressure compensation filter. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 19 Order code 71115175

      外壳过滤塞(黄铜/镍)

      Consists of: 2x filter plug brass nickel, pressure compensation filter. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 17
    • Nr 17 Order code 71115176

      外壳设置固定夹

      Usage: housing GT18/GT19/GT20, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 20
    • Nr 20 Order code 71110281

      铝盖

      Material: 316L. O-ring, EPDM, PTFE coated. Usage: FMP51/FMP52/FMP54/FMP55/ FMP56/FMP57, FMR51/FMR52/FMR53/ FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110282

      铝盖

      Material: 316L. O-ring NBR, PTFE coated. Usage: FMP51/FMP52/FMP54/FMP55/ FMP56/FMP57, FMR51/FMR52/FMR53/ FMR54/FMR57, FMR62/FMR67, FHX50. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110292

      铝盖

      Material: plastics PBT-FR sight glas PC. O-ring EPDM, PTFE coated. Usage: FHX50, FMP50/FMP51/FMP52/ FMP53/FMP54/FMP55/FMP56/FMP57, FMR50/ FMR51/FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110293

      铝盖

      Material: plastics PBT, metallized. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 20 Order code 71110297

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71110299

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71383631

      外壳

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383666

      外壳

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383674

      外壳

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 20 Order code 71383675

      外壳

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 25
    • Nr 25 Order code 71110284

      铝盖

      Material: 316L. O-ring EPDM /PTFE coated. Usage: terminal compartment Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110291

      铝盖

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, not for Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110295

      铝盖

      Material: plastics PBT, metallized. Usage: terminal compartment, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71110301

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: terminal compartment, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71110302

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: terminal compartment Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185516

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMP54/FMP56/FMP57, FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71185517

      铝盖

      Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185518

      Material: plastic PBT, metallizied. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 25 Order code 71383668

      外壳

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383670

      外壳

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383671

      外壳

      Material: 316L. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383679

      外壳

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383680

      外壳

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

    • Nr 25 Order code 71383682

      外壳

      Material: Alu. O-Ring FVMQ. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 65
    • Nr 65 Order code 71110303

      外壳密封套件

      Consists of: O-ring 88.5x3.53 EPDM/PTFE, cover electronics compartment, housing GT19. O-Ring 88.5x3.53 NBR, cover electronics compartment, housing GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, cover terminal compartment, housing GT19. O-Ring 91.67x3.53 NBR, cover terminal compartment, housing GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, housing/sensor. FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 65 Order code 71384797

      密封装置

      Consists of: O-Ring 88,5x3,53 FVMQ cover electronics compartment, housung GT18, GT20. O-Ring 91,67x3,53 FVMQ cover terminal compartment, housung GT18, GT20. Usage: FMP51/FMP54, FMR51/FMR52/FMR54. Usage: Prowirl 200.

  • 34
    • Nr 34 Order code 71108594

      I/O 模块

      Non-Ex, Ex. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71108594

      I/O 模块

      Non-Ex, Ex. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71108594

      I/O 模块

      Non-Ex, Ex. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71108595

      I/O 模块

      Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108595

      I/O 模块

      Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108595

      I/O 模块

      Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108595

      I/O 模块

      Non-Ex, Ex. 1x current output HART. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108599

      I/O 模块

      Non-Ex, Ex. 1x current output HART, 1x PFS. PFS=switch output. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57. FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71108603

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA. PFS=switch output. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108603

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA. PFS=switch output. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71108603

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA. PFS=switch output. Version 1. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

    • Nr 34 Order code 71164940

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71164940

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71164940

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71164940

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass 200, Prowirl 200, Promag 200.

    • Nr 34 Order code 71187812

      I/O 模块

      Version 2. Not for Ex d/XP. LP=low powered. 1x current output HART. Usage: FMP50/FMP51/FMP52/FMP53/FMP54/ FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/ FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207473

      I/O 模块

      Non-Ex, Ex. 10.4-48VDC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 34 Order code 71207474

      I/O 模块

      Non-Ex, Ex. Current output, 4-20mA HART + 4-20mA analog. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57.

    • Nr 34 Order code 71207475

      I/O 模块

      Non-Ex, Ex. 90-253VAC. 1x current output HART. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

  • 37
    • Nr 37 Order code 71110279

      端子套件 4-接线, I/O 模块

      Consists of: 2x terminal 2-pole, green. 2x terminal 2-pole, red. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

    • Nr 37 Order code 71110280

      端子套件 2-接线, I/O 模块

      Consists of: 4x terminal 2-pole, green. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71206552

      电缆

      Connection cable, shielded. Usage: FHX50.

    • Order code 71206554

      电缆

      Connection cable, shielded. Usage: FHX50.

    • Order code 71206555

      电缆

      Connection cable, shielded. Usage: FHX50.

    • Order code 71206556

      电缆

      Connection cable, shielded. Usage: FHX50.

    • Order code 71197334

      变送器 FHX50

      Consists of: electronics, ribbon cable. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass200, Prowirl 200, Promag 200, Prosonic Flow 200.

    • Order code

      Remote display FHX50 please order with separate order structure.

    • Order code 71296840

      Plug M12, VA

      To connect FHX50. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Not for dust Ex. Usage: Prowirl 200, Promass 200, Promag 200, Prosonic Flow 200.

    • Order code 71128617

      过压保护器

      4-20mA HART. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71128619

      过压保护器

      4-20mA HART, PROFIBUS PA, FOUNDATION Fieldbus, Imp./Freq./Switch output. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 30
    • Nr 30 Order code XPF0001-

      导波雷达Levelflex FMP5x电子插件

      Main electronics. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57.

  • 40
    • Nr 40 Order code XPD0024-

      显示模块

      For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Consists of: Display SD02, helix cable, ribbon cable, connector cover.

    • Nr 40 Order code XPD0025-

      显示模块

      For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200. Consists of: Display SD03 illuminated, ribbon cable, connector cover.

  • 57
  • 56
    • Order code 71373490

      PEEK绳

      Rope spacer for rope 4mm. D=48-95 mm/1.88-3.74 in. Diameter adaptable. Tmax 250oC/482oF. Material: PEEK. FDA, EG 1935/2004, EU 10/2011 compliant. Usage: rope assembly FMP50/FMP51/ FMP52/FMP54/FMP55.

    • Order code 71373492

      PEEK绳

      Rope spacer for rope 4mm. D=48-95 mm/1.88-3.74 in. Diameter adaptable. Tmax 250oC/482oF. Material: PEEK. FDA, EG 1935/2004, EU 10/2011 compliant. Usage: rope assembly FMP50/FMP51/ FMP52/FMP54/FMP55.

    • Order code 71381909

      PEEK杆

      Spacers for rods 12mm/0.5in. D=48-95 mm/1.89-3.74in. Diameter adaptable. Tmax 250oC/482oF. Material: PEEK. FDA, EG1935/2004, EU10/2011 compliant. Usage: Rod mounting FMP51/FMP54.

    • Order code 71377355

      蓝牙模块

      Module for wireless data communication. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67.

  • 55
  • 70
    • Order code 71102216

      安装组件

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code 71162242

      盖子|GT18/GT19/GT20,316L

      Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/ FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71069064

      中心垫圈 PEEK 48-95mm

      Spacers for rods 16mm/0.63in. D=48-95 mm/1.89-3.74in. Diameter adaptable. Tmax 250oC/482oF. Material: PEEK. FDA, EG1935/2004, EU10/2011 compliant. Usage: Rod mounting FMP51/FMP54.

    • Order code 71069065

      中心垫圈 PFA 37mm/1.46in

      Spacers for rods 16mm/0.63in. Tmax 250oC/482oF. Material: PFA. FDA, EG1935/2004, EU10/2011 compliant. Usage: FMP51/FMP52/FMP54/FMP55.

    • Order code 71157270

      中心垫圈 PFA 37mm/12mm

      Spacers for rods 12mm/0.5in. Tmax 250oC/482oF. Material: PFA. FDA, EG1935/2004, EU10/2011 compliant. Usage: FMP51.

    • Order code 71162453

      中心垫圈 PFA 37mm/8mm

      Spacers for rods 8mm/0.33in. Tmax 250oC/482oF. Material: PFA. FDA, EG1935/2004, EU10/2011 compliant. Usage: FMP51.

  • 54
  • 59
  • 57
    • Nr 57 Order code 71185027

      密封圈

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.

    • Nr 57 Order code 52014047

      密封圈

      Process gasket for process connections G1-1/2
