电容限位检测
Nivector FTI26

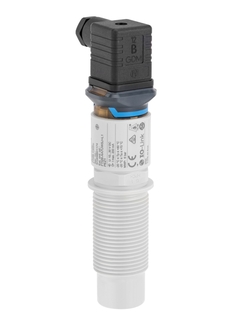

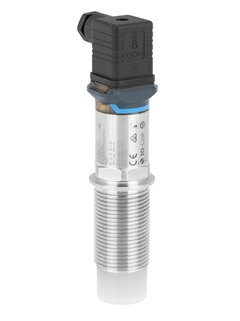

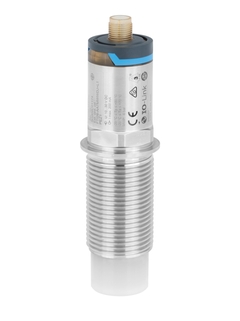

Nivector FTI26 ©Endress+Hauser
Nivector FTI26 ©Endress+Hauser
Nivector FTI26 ©Endress+Hauser

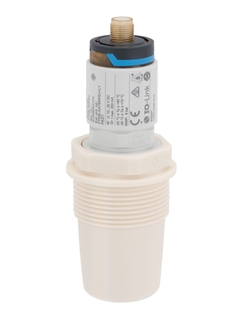

Nivector 带保护器的FTI26 ©Endress+Hauser
Nivector FTI26 ©Endress+Hauser

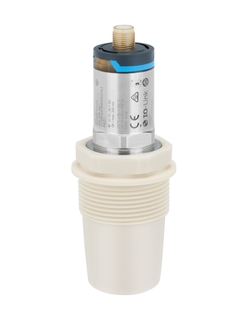

Nivector 带保护器的FTI26 ©Endress+Hauser

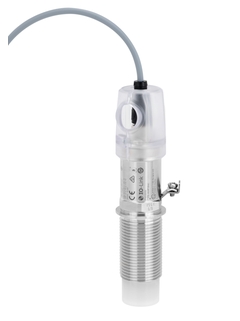

Nivector 防爆型FTI26 ©Endress+Hauser
Nivector FTI26 ©Endress+Hauser

适用食品行业中的各种粉末状或细颗粒状固体散料

Nivector FTI26是经济型料位开关,适用食品行业和各行业中的粉末应用场合。电容设备具有最优的抗黏附性能和极高的灵敏度。具备符合各个行业标准的认证证书。此外,FTI26带IO-Link通信,满足工业4.0的要求。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 紧凑型结构设计,安装简便,即使在狭小空间中或难于操作的场合中也能简便安装

    • 符合所有相关卫生型要求(3A、EHEDG、FDA、EG1935/2004);可清洗(IP69)

    • IO-Link降低了使用成本和操作复杂性,通过设计软件即可便捷地完成仪表设置

    • 最高等级的抗黏附性能和极高的灵敏度

    • 无需针对每种介质单独进行调节

    • 通过LED显示进行现场功能检测

  • 应用领域

    用于粉末状和细颗粒状固体散料的低限或高限检测,例如塑料颗粒、谷物、糖、调味品、咖啡粉、洗衣粉

    • 过程连接:G1"螺纹、Tri-Clamp 2"卡箍

    • 温度:-20...+80°C (-4...+176°F)

    • 压力:-1...+6bar (-14.5...+86psi)

    • 通过国际防爆认证(粉尘防爆)和卫生型认证

特征和规格

返回

Details

  • 测量原理

    固体电容

  • 特点/应用

    Compact for all types of powdered solids / small-grain bulk
    solids

  • 特点

    Active build-up compensation

  • 电源/通信

    12 V...30 VDC

  • 环境温度

    -20°C...60°C

    (-4°F...140°F)

  • 过程温度

    -40°C...80°C

    (-40°F...176°F)

  • 主要接液部件

    PC, ECTFE

    "Protector"

    FDA listed material PBT-GF

    (according to 21 CFR 177.1660)

  • 过程连接

    G1

  • 通信

    12 V...30 VDC

    IO-Link

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code 71267011

      测试磁铁

      Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51H, FTW23, FTW33.

    • Order code 71395785

      FTI26探头保护器

      Mounting adapter, thread G1-1/2. Material: PBT-GF, FDA listed. Temp.: -20...+80oC. Immersion: 63mm. :: Protection against abrasion. :: No solids flow at Nivector-exchange. Usage: FTI26.

    • Order code 71395862

      FTI26探头保护器

      Mounting adapter, thread R1-1/2. Material: PBT-GF, FDA listed. Temp.: -20...+80oC. Immersion: 63mm. ::Protection against abrasion. ::No solids flow at Nivector-exchange. Usage: FTI26.

    • Order code 71416936

      保护器

      Mounting adapter, thread G1-1/2. Material: PBT-GF, FDA listed. Temp.: -20...+80oC, immersion: 63mm. :: Protection against abrasion. :: No solids flow at Nivector-exchange. Usage: FTI26.

    • Order code 71395793

      转接头

      Process adapter G1. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTI26.

    • Order code 71395797

      FTI26焊接接头

      Material: 316L. Seal: EPDM 70 O-ring. FDA, EHEDG, 3-A compliant. Usage: FTI26.

    • Order code 71395801

      FTI26锁紧螺母

      Mounting aid. Material: plastic PA. Wrench size: 41mm. Usage: FDU90/FDU91/FDU92, FMR10/FMR20, FTC968 AC, FTI26.

    • Order code 71395803

      FTI26防爆护套

      Material: PC. Mandatory for Ex-version. W/o Ex-protection cover dust Ex-protection not guaranteed! Usage: FTI26, PMC21, PMP21.
