iTHERM CompactLine TM311

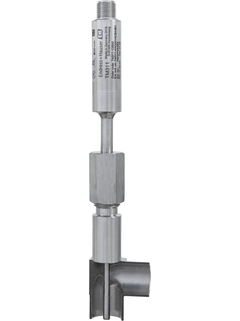

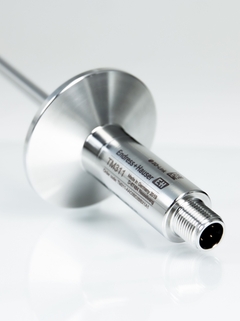

iTHERM CompactLine TM311温度计 ©Endress+Hauser

紧凑型Pt100温度计,安装在变送器中使用(IO-Link通信和4...20 mA电流输出),支持PC编程设置

紧凑型温度计通过Pt100温度传感器(A级精度,四线制连接)测量过程温度。可选安装在变送器中,转换Pt100输入信号。内置电子模块的仪表型号能够自动检测连接方式((IO-Link或4...20 mA)。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 安装快速,调试轻松:
      - 整体不锈钢材质,结构小巧紧凑
      - M12连接,IP69防护等级,轻松进行电气连接
      - Pt100温度传感器,四线制连接,通用输出信号(IO-Link或4...20 mA)
      - 预设置量程

    • 采用创新的传感器技术,计量性能优秀:
      - 超短响应时间
      - 即使在小插深条件下也具有高测量精度
      - 通过变送器-传感器匹配提高测量精度

    • 通过多项认证,操作可靠:
      - 设备安全性符合EN610101-1和CSA C/US标准
      - 电磁兼容性符合NAMUR NE21标准
      - 诊断信息符合NAMUR...

  • 应用领域

    • 专用于食品、饮料和制药行业中的卫生和无菌应用,以及在机器和设备制造领域实现最优标准化。

    • 测量范围:-50...+200 °C (-58...+392 °F)

    • 最大压力:50 bar (725 psi)

    • 防护等级:IP69

    • 输出

      未安装电子模块:Pt100(四线制连接)

      安装有电子模块:IO-Link、4...20 mA、1路PNP开关量输出(与接线方式相关)

特征和规格

返回

Details

  • 测量原理

    热电阻

  • 特点/应用

    metric and imperial style

    compact temperature probe

    fast response time

    high accuracy

    standard and hygienic design

    hygienic process connection

    threaded process connection

  • 热保护套管

    without

    incl. thermowell

    incl. T-/ellbow thermowell

  • 铠装芯子/探头

    pipe version, isolated wires, not flexible

  • 热保护套管外径

    3,0 mm (0,12'')

    6,0 mm (0,24'')

  • 所需最大插入深度

    up to 600,00 mm (23,62'')

  • 热保护套管材质

    1.4435 Delta-Ferrit < 1%

    316L

  • 过程连接

    compression fitting

    Thread

    weld in adapter

    clamp connections acc. to ISO2852

    screwed pipe joint acc. to DIN 11851

    aseptic screwed pipe joint acc. to DIN 11864-1

    metallic sealing system

    thread acc. to ISO 228 for liquiphant adaptor

    Varivent

    SMS 1147

    T- and elbow pieces

  • 热保护套管末端类型

    straight

    reduced

  • 表面光洁度Ra

    0,76 μm (29,92 μin)

    0,38 μm (14,96 μin)

    0,38 μm (14,96 μin) electropolished

  • 工作温度范围

    PT 100:

    -50 °C ...200 °C

    (-58 °F ...392 °F)

  • 最大过程压力(静压)

    at 20 °C: 50 bar (725 psi)

  • 测量精度

    class A acc. to IEC 60751

  • 响应时间

    t50 = 1 s

    t90 = 2 s

  • 模块化温度变送器

    no (4…20mA Signal, IO-Link)

  • 证书

    3A, EHEDG, ASME BPE, FDA, TSE

    1935/2004, 2023/2006, 10/2011

    DNVGL, BV

    cCSAus

    EAC

    RCM

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code

      The unit is not repairable

    • Order code 51004751

      可移动密封锥形管peek垫片有螺栓

      可移动密封锥形管 垫片+G1/2"压力螺栓 接液部分材质:316L,PEEK 最大压力:10bar (145psi)

    • Order code 51004752

      可移动密封锥形管peek垫片无螺栓

      可移动密封锥形管+垫片 接液部分材质:316L,PEEK 最大压力:10bar (145psi)

    • Order code 60022519
    • Order code 71405560

      Weld in adapter M12x1.5 1.4435/316L

    • Order code 71424800

      1/2" G螺纹底座

      for connection with G1/2" female thread. Material 316L/1.4435. 2x leakage bore.

    • Order code 52018765

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ", FMI51, FTI51 "GQJ" Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52028295

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ" w/o flange Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52021717

      O型圈

      for weld-in adapter G3/4 D=50 316L Liquiphant T FTL20H

    • Order code 52001052

      焊座

      Flush mount process connection FTL50/FTL50H "GQ2" Material: 316L Seal: Silicone O-ring

    • Order code 52011897

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80, QMW43. Usage: TMR35.

    • Order code 52014473

      O型圈

      for weld-in adapter G3/4 Liquiphant M "GQ2"

    • Order code 71093129

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.

    • Order code 52001051

      过程连接件|Weld-in G1, d=60, 316L

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52011896

      焊座,G1,d=60 ,3.1材质认证

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52014472

      O型圈

      for weld-in adapter G1 (52001051) Liquiphant M "GW2" Liquiphant T "7", Liquicap M "GWJ", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for weld-in andapter G1, 316L 3.1 (52011896) Liquiphant M "GW2", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for sliding sleeve Soliphant T

    • Order code 52001221

      焊座

      Flush mount process connection FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring

    • Order code 52011898

      焊座

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52014424

      密封垫圈

      for weld-in adapter G1, adjustable, 316L (52001221) Liquiphant M "GW2" for weld-in adapter G1, adjustable, 316L (52011898) Liquiphant M "GW2" for weld-in adapter G1, adjustable Liquiphant FTL330H/FTL330L, Liquiphant T FTL20H "UPJ

    • Order code 71449142

      Adapter cable, PIN, TM311 to TMR3x

    • Order code 71217708

      芯线组 4p D18 IP69K

      PVC cable, 4 x 0.34 mm2 (22 AWG) with M12x1 coupling nut from stainless steel; straight female connector type; screw plug; length 5 m (16.4 ft); IP69K.

    • Order code TK40-

      iTHERM TK40 Compression Fitting

      Weld-in compression fitting with hygienic design. For applications in the food/ beverages and pharmaceutical industries.

    • Order code TT411-

      iTHERM TT411 Thermowell

      Thermowell with hygienic design. Metrical version for applications in the food/beverages and pharmaceutical industries.
