产品规格参数
-
测量精度
Cl. A ,遵循IEC 60751标准
Cl. AA,遵循IEC 60751标准 -
响应时间
取决于设置
QuickSens: t90 = 1.5秒
StrongSens: t90 = 9.5秒 -
最大过程压力(静压)
20 °C时:40 bar (580 psi)
-
工作温度范围
PT100:
-200…600 °C
(-328…1.112 °F)
StrongSens:
-50…500 °C
(-58…932 °F)
QuickSens:
-50…200 °C
(-58…392 °F)
应用领域

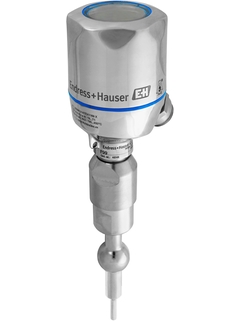

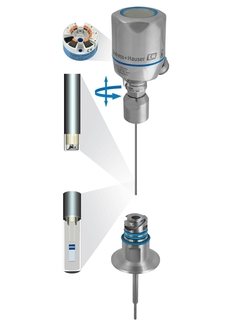

The modular sanitary thermometer iTHERM TM411 with digital display delivers highly accurate, reliable and fast temperature measurements in process lines, vessels, tanks, fermenters and more. The high-performance device is designed for the strictly regulated food and life sciences industries. Configure your hygienic instruments from a selection of thin film RTDs with QuickSens or StrongSens technology or 2x Pt100 wire wound temperature sensors, smart transmitters and hygienic process connections.
Designed for use in hygienic and aseptic applications in food, beverage and life sciences
Measuring range: –200 to 600 °C (-28 to 1 112 °F)
Pressure range up to 40 bar (580 psi)
Protection class: up to IP69K
Remote parametrization with secure Bluetooth® temperature transmitters
International approvals: Certified for use in hazardous areas, explosion protection as per ATEX/IECEx, CSA, FM, EAC Ex, JPN Ex, NEPSI; Hygiene standards according to 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
优势
Optimum process control: Fast sensor response times with iTHERM QuickSens technology (t90: 1.5 s)

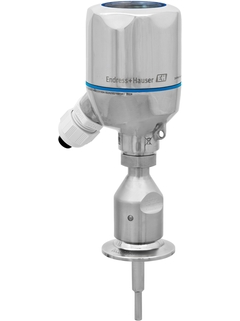

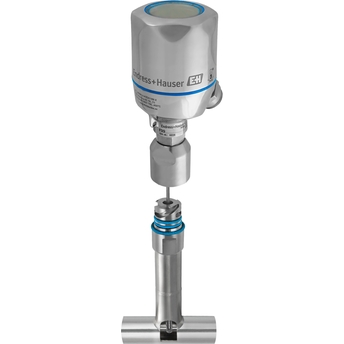

Up to 75% faster and safer recalibrations with iTHERM QuickNeck – tool-free quick-release for instant insert removal
High sensor availability under rough conditions: Vibration resistant RTD technology iTHERM StrongSens (> 60g)
Easy product selection, configuration and maintenance
Increase productivity and product safety in sanitary applications with highly accurate and reliable measurements
Thermowells, hygienic process connections and housings expertly manufactured from high-grade materials treated for low surface roughness
演示视频

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
老产品
-
-
《操作手册》(BA)
Modular hygienic thermometers
Universal modular thermometers with RTD insert for hygienic applications
EN ZH 20/01/2020语言:
英语
版本:
20/01/2020
文件大小:
591 KB
文件名:
BA02023TEN_0120.pdf
-
-
-
《防爆安全指南》(XA)
Modular RTD assemblies for hygienic applications iTHERM® TM411
JPN: Ex ia IIC T4 Ga/Gb
EN ZH 31/12/2019语言:
英语
版本:
31/12/2019
文件大小:
125.5 KB
文件名:
XA01937TEN_0119.pdf
-
-
-
《防爆安全指南》(XA)
Modular RTD assemblies for hygienic applications iTHERM TM411, TM412
0Ехia IIC T6…T1 Ga Х Ga/Gb Ех ia IIC T6…T1 Ga Х Еx ia IIIC T85°C…T450°C Da Х Еx ia IIIC T85°C…T450°C Da/Db Х
EN ZH 29/10/2021语言:
英语
版本:
29/10/2021
文件大小:
424 KB
文件名:
XA02760TEN_0121.pdf
-
-
-
《防爆安全指南》(XA)
XA TR1x, Tx88, TSx310, Tx6x, TC1x, TPx100, TM411, TR24
温度计和芯子 Ex ia IIC T1...T6 Ga Ex ia IIIC T<sub>200</sub> 85 °C...T<sub>200 </sub> 450 °C Da
EN ZH 30/08/202315/05/202331/07/2020语言:
中文
版本:
30/08/2023
文件大小:
1.4 MB
文件名:
XA02109TZH_0323-00.pdf
-
-
-
《防爆安全指南》(XA)
TRxx、TCxx、TS211、iTHERM TS111、TM211、TPx100、TSx310、TM1x1、TM411、TM412
温度计和测温芯子 Ex nA IIC T6-T1 Gc
EN ZH 31/07/2020语言:
中文
版本:
31/07/2020
文件大小:
1.3 MB
文件名:
XA02111TZH_0120.pdf
-
-
-
《防爆安全指南》(XA)
TM411, TM412
Control Drawing FM IS, NI
EN ZH 15/06/201801/12/2014语言:
英语
版本:
15/06/2018
文件大小:
79.3 KB
文件名:
XA01150TEN_0218.pdf
-
