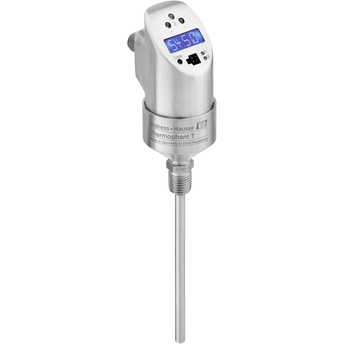

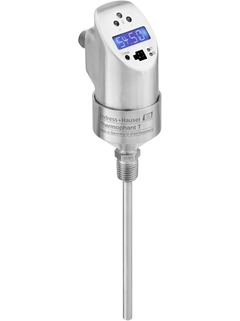

Thermophant® T TTR31
温度开关
用于过程温度的安全监测,一体化型,节约成本
现代工艺过程测量技术需要具有高性价比、节约空间、操作可靠、安装方便与调试等优点,这款温度开关完全满足这些要求,适用于过程温度的安全测量与监测,可选1~2路开关量输出,或1路开关量输出和1路标准模拟量输出用作。内置薄膜的防震传感器确保最高的操作安全性。
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量精度
-50...75 °C:<0.5 K
(-58...167 °F:<0.9 °F)
75...150 °C:<0.65 K
(167...302 °F:<1.2 °F) -
工作温度范围
-50...150 °C (-58...302 °F)
-
快速选择
个性化配置
-
优势
内置开关元件,带来更分散、更经济的过程监测与控制
高度重复性与长期稳定性

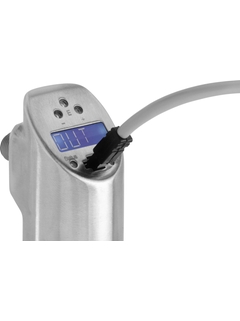

LEDs与数字显示屏具有功能控制与现场信息显示功能。
长期稳定的铂电阻(Pt100等级为A,符合IEC 60751标准)
整个环境温度范围内,都能确保高精度测量,以及很短的反应时间。
使用PC与FieldCare操作及可视化,或带 ReadWin® 2000设置软件。
符合DESINA标准
文档/手册/软件
-
Technical Information
Temperature Switch
Thermophant T TTR31, TTR35
Temperature switch for the safe measurement, monitoring and control of
process temperatures技术信息(TI) -
Operating instructions
Temperature switch
Thermophant T TTR31, TTR35
Temperature switch for the safe measurement, monitoring and control of
process temperatures操作手册(BA) -
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC Software操作手册(BA) -
Temperature switch Thermophant T TTR31, TTR35
device release: 01.01. - 01.02.
Temperature switch for the safe measurement, monitoring and control of
process temperatures操作手册(BA) -
Temperature Switch Thermophant T TTR31, TTR35
device release: 01.00. - 01.01.
Temperature switch for the safe measurement, monitoring and control of
process temperaturesShort Instruction (KA)10/04英语 -
Mesure de température
Capteurs et transmetteurs pour les industries de process
实际应用(FA)12/19fr -
温度测量
过程工业用温度传感器和温度变送器
实际应用(FA)12/14中文 -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych实际应用(FA)10/14波兰语 -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.实际应用(FA)06/13俄语 -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
实际应用(FA)04/18西班牙语 -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo实际应用(FA)04/18意大利语 -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)03/13英语 -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
实际应用(FA)03/13土耳其语 -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
实际应用(FA)02/20德语 -
Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)02/20英语 -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
竞争力手册(CP)08/11俄语 -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности竞争力手册(CP)04/10俄语 -
Catálogo soluciones esenciales
Alta calidad a precios competitivos
竞争力手册(CP)01/17西班牙语 -
Aluminium Laufen AG
Intelligente Wärmerückgewinnung
Um Prozesswärme optimal zu nutzen und damit die Energieeffizienz zu
steigern, entwickelte Endress+Hauser gemeinsam mit Aluminium Laufen
AG ein modernes Steuerungskonzept.案例分析(CS)06/13德语 -
Aluminium Laufen AG
Intelligent heat recovery
In order to optimise the use of process heat and to increase energy
efficiency, Endress+Hauser developed jointly with Aluminium Laufen
AG a modern control concept.案例分析(CS)06/13英语 -
E-direct Produktcatalogus 2018-2019
High quality, low price
Endress+Hauser 目录 (EC)10/18荷兰语 -
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !
Endress+Hauser 目录 (EC)09/19fr -
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!
Endress+Hauser 目录 (EC)06/20德语 -
RTD-thermometer
产品型号: TTR31-
一致性声明编号: HE_00537_01.17
制造商规格: RoHSManufacturer Declaration英语 -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
产品型号: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
一致性声明编号: EC_00568_01.17EU Declaration德语 , 英语 , fr -
RTD-thermometer
产品型号: TTR31-, TTR35-
一致性声明编号: EC_00350_01.16EU Declaration德语 , 英语 , fr -
Process RTD Heavy duty, RTD-thermometer
产品型号: TMR31-, TMR35-, TMT142R-, TMT162R-, TTR31-, TTR35-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC BY_112 11.01. TP020 003 143Miscellaneous俄语 -
DIN Rail Transmitter, Field transmitter, head transmitters, RTD-thermometer, Process TC Heavy duty, Process RTD Heavy duty, process displays, power supply and barrier, contactors / transmitters
产品型号: TMT85-, TMT84-, TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162-, TMT142-, TMT128-, TMT127-, TMT125-, TMT122-, TMT121-, TMT112-, TMT111-, TTR35-, TTR31-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR31-, TMR35-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC № RU D-DE.AG95.B.00650Miscellaneous俄语 -
RTD-thermometer
产品型号: TMR31-, TMR35-, TTR31-, TTR35-
地区/国家: Poland
认证机构: PZHHygienic Equipment波兰语 -
RTD-thermometer
产品型号: TTR31-, TTR35-
地区/国家: Russia
认证机构: Rosstandart
证书号: DE.C.32.004.A NO 53052/1Metrology俄语 -
RTD-thermometer
产品型号: TTR31-
地区/国家: International
认证机构: DNVGLMarine英语 -
RTD-thermometer, head transmitters, DIN Rail Transmitter, process displays, Memo-Graph, Field transmitter, Ecograph, contactors / transmitters
产品型号: TMT85-, TMT162-, TMT142-, RIA14-, RIA16-, RIA45-, RIA46-, RMA42-, RSG35-, RSG45-, TMR31-, TMR35-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT180-, TMT111-, TTR35-, TTR31-, RSG40-
地区/国家: Canada, USA
认证机构: ULOrdinary Location Product Safety英语
附件/备件
-
-
Order code 51516983
通讯接口 FXA291
Serial USB Computer Interface Technical Data: - USB Version1.1 or higher - Power supply via USB - IP51; NEMA/Typ 3 - Ambient temperature: -20....+60oC - Ex: II(2) G (EEx ia) II C - ATEX: BVS 05 ATEX E 095 Scope of deliovery: Commubox FXA 291 MS Windows USB driver Device is submitted for CSA/FM application. The device may not be modified and may be used with intrinsically safe circuits with corresponding characteristics only (see safety certificate).
-
