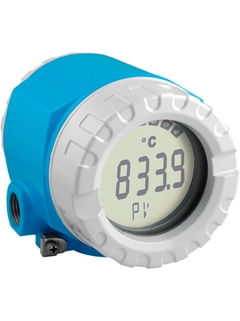

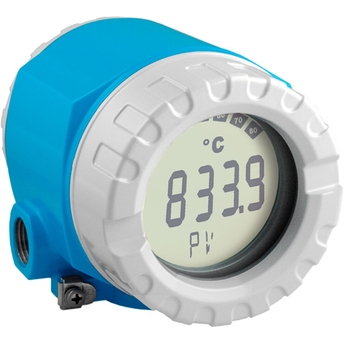

iTEMP® TMT162 现场温度变送器
电子监控、转换、显示输入信号,用于所有行业
在所有行业的关键过程应用中都表现出卓越的可靠性、精确度和长期稳定性。连接分离型温度变送器,传输来自RTD传感器和热电偶的转换信号,同时采用HART, FF现场总线™ H1或 PROFIBUS® PAHART®通信,传输电阻和电压信号。信号可背光显示。坚固耐用的外壳,适合现场安装,能在条件苛刻的过程区域直接应用,也可作为卫生型应用的备选。
- F
- L
- E
- X
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量精度
(Pt100,-50...200 °C)<= 0.15 K(HART)
(Pt100,-58...392 °F)<= 0.3 °F(HART)
(Pt100)<= 0.1 K(FF、PA)
(Pt100)<= 0.18 °F(FF、PA)
-
快速选择
个性化配置
-
优势
采用双腔室外壳和一体式全密封电子部件,在恶劣工况条件下具有高可靠性
背光显示屏,大测量值、柱状图和状态显示
诊断信息符合 NAMUR NE107 标准
通过国际认证,例如:FM、CSA(IS、NI、XP 和 DIP)和 ATEX(Ex ia、Ex nA nL、Ex d 和粉尘防爆);船级认证
SIL 认证,符合 IEC 61508:2010 标准
2 kV 隔离电压(传感器输入/输出)
-
应用领域
通用型输入,可用于热电阻 (RTD),热电偶 (TC),热电阻Ω),电压变送器 (mV)
HART® 用于将各种输入信号转换为4~20mA模拟输出信号的协议,使用 Field Xpert SFX350/370, field communicator 475 手持终端或PC进行变送器操作
FOUNDATION Fieldbus™ ITK 6.1.2
PROFIBUS® PA Profile 3.02

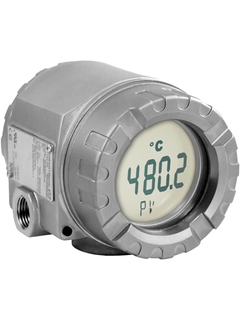

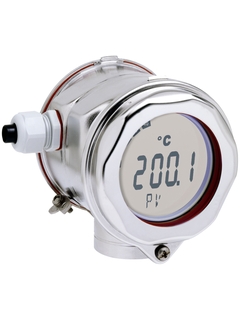

可选:不锈钢外壳用于卫生型场合或 Ex d场合
