RTD-Assembly S.A. Style TLSR1

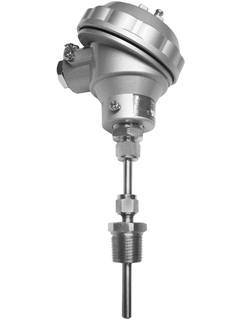

热电阻(RTD)温度计TLSR1的产品示意图 ©Endress+Hauser

此产品现已不再销售。

想要查看新产品,请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    热电阻

  • 特点/应用

    南美标
    电缆型传感器应用广泛
    带或不带热保护套管

  • 热保护套管

    与或不与热保护套管配套使用(单独订购)

  • 铠装芯子/探头

    矿物绝缘材料(MI),可弯曲

  • 所需最大插入深度

    最大2000 mm (78.74'')

  • 热保护套管材质

    1.4401 (316)

  • 可选带涂层

    未设置

  • 过程连接

    固定螺丝:
    NPT 1/4"
    NPT 1/2"
    G1/4"
    G1/2"
    可调节卡套:
    NPT 1/8"
    NPT 1/4"
    NPT 3/8"
    NPT 1/2"
    G1/8"
    G1/4"
    G3/8"
    G1/2"

  • 热保护套管末端类型

    圆形
    平面

  • 工作温度范围

    PT 100:
    -200 ...600 °C
    (-328 ...1.112 °F)

  • 最大过程压力(静压)

    20 °C时:10 bar (150 psi),无热保护套管

  • 测量精度

    Cl. A,符合IEC 60751标准
    Band 5(1/10 DIN)

  • 响应时间

    取决于设置

  • 模块化温度变送器

    是(4…20 mA;HART;PROFIBUS PA;FOUNDATION FIELDBUS)

  • 证书

    EN10204 3.1材料可溯源性

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code 71044061

      设备包

      2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector

    • Order code TMT180-

      模块温度变送器 TMT180

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT181-

      模块温度变送器 TMT181

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT84-

      模块温度变送器 TMT84

      Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable.

    • Order code TMT85-

      模块温度变送器 TMT85

      Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose.

  • B
    • Nr B Order code TID10-

      温度变送器显示器TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84.

    • Order code TMT182-

      模块温度变送器 TMT182

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine.

    • Order code TMT82-

      模块温度变送器 TMT82

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Order code FXA195-

      通讯接口 FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Order code READWIN-

      Readwin 2000调试包 READWIN

      Readwin 2000 Operation + Read. software

    • Order code TXU10-

      仪表调试包 TXU10

      用于可以PC编程调试的设备 程序设置+用于带USB接口的PC的连接线

    • Order code 51001112

      温变备件

      (4 screws, 6 springs, 10 spring rings)
