TH14

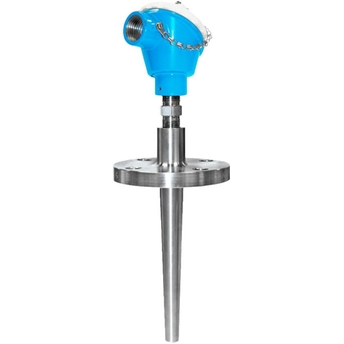

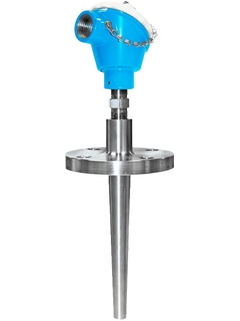

模块化热电阻(RTD)温度计(US型)
常规应用中的最佳温度测量技术
高度模块化温度计,适用于恶劣工况中的许多应用,例如:电厂、炼油厂、化工或石化行业。坚固耐用的温度计采用棒材热保护套管、SS316或INCONEL600法兰连接,与不同型号的模块化变送器配套使用,组成完整测量单元,可以直接测量,具有高测量精度和可靠性。
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
此产品暂未在中国市场销售
-
产品规格参数
-
测量精度
Cl. A ,遵循IEC 60751标准
Cl. B,遵循IEC 60751标准 -
响应时间
取决于设置
-
最大过程压力(静压)
20 °C时:500 bar (7.252 psi)
-
工作温度范围
PT 100:
-200...600 °C
(-328...1.112 °F) -
所需最大插入深度
最大2,743 mm (108,00'')
-
快速选择
个性化配置
-
优势
带标准表头的模块化温度计和用户自定义插入深度,使用灵活
一站式温度测量解决方案。内置传感器的一流变送器,适用于苛刻工业过程应用。拆箱后直接安装使用
安装在大多数设备上均能提升电气隔离性能(2 kV)
简单的模块化结构:性价比高。 订购和重新订购简单。含传感器和变送器的整体单元提供完整测量点解决方案
所有iTEMP®变送器的长期稳定性均≤ 0.05 % /年
缩径型/锥管型末端,响应时间短
模块化变送器选型简单:4...20 mA模拟量输出、HART®、PROFIBUS® PA或基金会现场总线(FF™)
-
应用领域
TH14是热电阻(RTD)温度计,安装在热保护套管中,结构坚固,适用于各种工业过程,包括恶劣工况。含带绝缘热电阻(RTD)部件的测量探头、铠装芯子和棒材热保护套管。
传感器可用于:
化工行业
石化行业
电厂
炼油厂
海上平台
