TH13

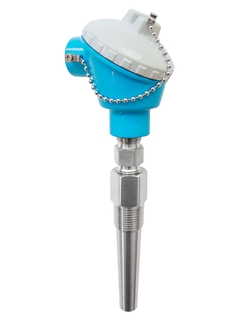

模块化热电阻(RTD)温度计(US型)
常规应用中的最佳温度测量技术
棒材保护套管的温度计坚固耐用，可与装配有变送器的表头组成完整单元，以满足不同的应用环境及空间需求。该温度计具有较高的测量精度和可靠性，且提供各种过程连接、尺寸和材料（如316L SS和Hastelloy C276），可灵活适用于各类应用。
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
此产品暂未在中国市场销售
-
产品规格参数
-
测量精度
Cl. A ，遵循IEC 60751标准
Cl. B，遵循IEC 60751标准 -
响应时间
取决于设置
-
最大过程压力（静压）
20 °C时：100 bar (1.450 psi)
-
工作温度范围
PT 100：
-200...600 °C
(-328...1.112 °F) -
所需最大插入深度
最大2,743 mm (108,00'')
-
-
优势
带标准表头的模块化温度计和用户自定义插入深度，使用灵活
一站式温度测量解决方案。内置传感器的一流变送器，适用于苛刻工业过程应用。拆箱后直接安装使用
安装在大多数设备上均能提升电气隔离性能(2 kV)
简单的模块化结构：性价比高。 订购和重新订购简单。含传感器和变送器的整体单元提供完整测量点解决方案
所有iTEMP®变送器的长期稳定性均≤ 0.05 % /年
缩径型/锥管型末端，响应时间短
模块化变送器选型简单：4...20 mA模拟量输出、HART®、PROFIBUS® PA或基金会现场总线(FF™)
-
应用领域
TH13是热电阻(RTDp温度计，安装在热保护套管中，结构坚固，适用于各种工业过程，包括恶劣工况。含带绝缘热电阻(RTD)部件的测量探头、铠装芯子和棒材热保护套管。
传感器适用于下列工业行业：
化工行业
石化行业
电厂
炼油厂
海上平台
文档/手册/软件
-
RTD TH13, TH14 and TH15
TH13, TH14 and TH15 RTD assemblies in thermowells
with spring loaded insert and housing for process industry技术信息(TI) -
TH13
Compact instructions
RTD Assembly in thermowell
Short Instruction (KA)02/13英语 -
Control Drawing CSA Intrinsically Safety, Nonincendive THxx, Txx Series,
TU111, TU121, TU211, TU221
Installation Notes for Hazardous Locations
证书FM/CSA (ZD) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
实际应用(FA)12/19French -
温度测量
过程工业用温度传感器和温度变送器
实际应用(FA)12/14中文 -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych实际应用(FA)10/14波兰语 -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.实际应用(FA)06/13俄语 -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
实际应用(FA)04/18西班牙语 -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo实际应用(FA)04/18意大利语 -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)03/13英语 -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
实际应用(FA)03/13土耳其语 -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
实际应用(FA)02/20德语 -
Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)02/20英语 -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
竞争力手册(CP)08/11俄语 -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности竞争力手册(CP)04/10俄语 -
TMT162, TH15 or TH13 and RN221N with Mercury in Glass (MIG) thermometer
replacement.
FDA proposes to allow the use of alternative temperature indicating
devices for processing low-acid canned foods.案例分析(CS)06/10英语 -
Increased productivity and Throughput
Elimination of waste, batch rework and losses with innovative active
backup on RTD assemblies with transmitters案例分析(CS)06/10英语 -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
产品型号: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
一致性声明编号: EC_00568_01.17EU Declaration德语 , 英语 , French -
TC Heavy duty, Process TC Heavy duty, Process TC Explosion proof, Process RTD Explosion proof, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TH55-, TH54-, TH53-, TH15-, TU111-, TU121-, TU211-, TU221-, TH14-, TH13-
地区/国家: USA
认证机构: CSA
类别: I//A,B,C,D/
保护: IS, NIExplosion Protection英语 -
ACCESSORIES: PIPE THERMOWELL, Process RTD Explosion proof, Process RTD Hygienic, Process TC Explosion proof, Process TC Heavy duty, TC Heavy duty
产品型号: TU67-, TU55-, TU54-, TU53-, TU52-, TU51-, TH54-, TH53-, TH27-, TH14-, TH13-, T54-, T53-, T14-, T13-
地区/国家: Canada, Canada (CRN)
认证机构: CRNPressure Equipment英语
附件/备件
-
-
-
Nr A Order code TS212-
Insert imperial iTHERM TS212
Insert replaceable central spring load imperial version ::Fastest response times for optimal process control through iTHERM QuickSens insert. ::Maximum robustness for highest process safety through iTHERM StrongSens insert. Maximum RTD accuracy at high temperature through iTHERM HotSens insert.
-
-
-
Order code TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
-
Nr A Order code TA30R-
Terminal Head TA30R
Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.
-
-
-
Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
-
-
Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
