TR63

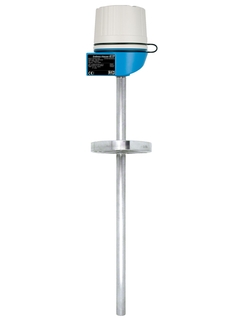

防爆型 Pt100 温度计
过程温度的安全测量,适用于石油、天然气等行业中恶劣工况的测量场合
此款温度计坚固耐用,适用于化工、石油、天然气、能源等行业的恶劣工况和安全要求高的测量场合。牢固的保护管和特殊材质足于应对恶劣的工作环境、腐蚀性物质和高压。可选变送器兼容各种通用通信协议,可即装即用,与直接连线的传感器相比,提高了测量精度和可靠性,设备设置灵活。
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量精度
Cl. A ,遵循IEC 60751标准
Cl. AA,遵循IEC 60751标准 -
响应时间
取决于设置
t50 = 4 s
t90 = 8 s -
最大过程压力(静压)
20 °C时:100 bar (1.450 psi)
-
工作温度范围
PT100 TF StrongSens:
-50 °C ...500 °C
(58 °F ...932 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(58 °F ...752 °F) -
所需最大插入深度
最大10,000.00 mm (393.70'')
-
快速选择
个性化配置
-
优势
防爆类型:本质安全型(Ex ia),隔爆型(Ex d),无火花型(Ex nA)
模块化设计,采用符合DIN EN 50446的标准接线盒和客户指定的插入深度,灵活性高
可选锥形端部,加快反应时间
过程连接:可选择螺纹、压缩接头和法兰
NUN接头防止变送器过热
-
船级认证
文档/手册/软件
-
技术资料
Omnigrad S TR63
防爆型铠装热电阻、智能可编程一体化温度变送器
可更换铠芯,自带热套管,齐全的过程连接,智能可编程温变技术信息(TI) -
Omnigrad S TR63, TC63
技术资料
一体式温度计,可配备热电阻(RTD)铠装芯子或热电偶(TC)铠装芯子
技术信息(TI) -
Omnigrad S TR/TC6x
RTD / TC Thermometer
1Ex d IIC T6...T1 Gb X
Ex tb IIIC 85 °C....450 °C Da X
Ga/Gb Ex d IIC T6...T1 X
Ex ta/tb IIIC 85 °C...450 °C Da/Db XEx 防爆说明(XA) -
iTHERM TS111, TM211
Omniset TPx100, Omnigrad TSx310
RTD/TC inserts and cable thermometers
ATEX:
II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC
IECEx:
Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
TRxx、TCxx、TS211、iTHERM
TS111、TM211、TPx100、TSx310、TM1x1、TM411、TM412
温度计和测温芯子
Ex nA IIC T6-T1 GcEx 防爆说明(XA) -
RTD/TC thermometers
ATEX II 3G, II 3D
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
Safety instructions RTD / TC Thermometer
Omnigrad S TR/TC 6x
ATEX II1/2, 2GD or II2G
(Ex d IIC T5, T6; Ex tD A21 IP66 T85 °C T100 °C)Ex 防爆说明(XA) -
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x
ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex
iaIIC
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db ХEx 防爆说明(XA) -
TR1x、TR4x、TR88、TSC310、TST310、TR6x、TC1x、TC6x、TC88、TPC100、
TPR100
、TM411、 TM412、TR24
温度计和测温芯子
Ex ia IIC T1-T6 Ga、Ex iaD 20 T85-T450Ex 防爆说明(XA) -
TR/TC6x
Ex d IIC T1...T6 Gb
Ex 防爆说明(XA) -
Omnigrad S TR/TC6x
ATEX:
II 1/2 or G or D Ex d IIC or ta/tb IIIC
IECEx:
Ex d IIC r ta/tb IIIC
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
实际应用(FA)12/19fr -
温度测量
过程工业用温度传感器和温度变送器
实际应用(FA)12/14中文 -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych实际应用(FA)10/14波兰语 -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.实际应用(FA)06/13俄语 -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
实际应用(FA)04/18西班牙语 -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo实际应用(FA)04/18意大利语 -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
实际应用(FA)03/13土耳其语 -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)03/13英语 -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
实际应用(FA)02/20德语 -
Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)02/20英语 -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
竞争力手册(CP)08/11俄语 -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности竞争力手册(CP)04/10俄语 -
Process RTD Heavy duty
产品型号: TR63-
一致性声明编号: HE_00520_01.17
制造商规格: RoHSManufacturer Declaration英语 -
Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC General purpose
产品型号: TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TR10-, TR11-, TR12-, TR13-
Manufacturer Declaration英语 -
Process RTD General purpose, Process TC General purpose, Process RTD Hygienic, Process RTD Heavy duty, Process RTD Direct contact, Process TC Heavy duty, Process TC direct in contact, ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS
产品型号: TC10-, TC12-, TC13-, TR11-, TR12-, TR13-, TR15-, TR24-, TM411-, TM412-, TR10-, TR45-, TR47-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TST310-, TC15-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TSC310-, TPR100-, TPC100-, TS111-
一致性声明编号: EC_00177_01.16EU Declaration德语 , 英语 , fr -
Process RTD Heavy duty, Process TC Heavy duty
产品型号: TC61-, TC62-, TC63-, TC65-, TC66-, TR61-, TR62-, TR63-, TR65-, TR66-
一致性声明编号: EC_00096_02.15EU Declaration德语 , 英语 -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
产品型号: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
一致性声明编号: EC_00568_01.17EU Declaration德语 , 英语 , fr -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM412-, TM411-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
一致性声明编号: EC_00177_02.16EU Declaration德语 , 英语 , fr -
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
产品型号: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
一致性声明编号: EC_00136_02.16EU Declaration德语 , 英语 -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, ACCESSORIES: T_INSERTS, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-, TPR100-
一致性声明编号: EC_00169_02.16EU Declaration德语 , 英语 , fr -
Process RTD General purpose, Process RTD Heavy duty, Process TC General purpose, Process TC Heavy duty
产品型号: TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: China
认证机构: ACMA
证书号: MD-17033A/09/ENMiscellaneous英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic
产品型号: TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS101-, TS111-, TST310-, TST434-, TST602-, TR45-, TR44-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR300-, TPR100-, TM411-, TM401-, TET300-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC RU D-DE.AZ01.B.01156Miscellaneous俄语 -
Process RTD Heavy duty, Process TC Heavy duty
产品型号: TC61-, TC62-, TC63-, TC65-, TC66-, TR61-, TR62-, TR63-, TR65-, TR66-
地区/国家: International (IECEx)
认证机构: KEMA
保护: Ex d IIC T6...T1 Gb, Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR10-, TPR100-, TPC100-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
保护: Ex d IIC T6...T1 Ga/Gb, Ex d IIC Txxx°C Gb, Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/Db, Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection俄语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/DbExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TS211-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TM111-, TM131-, TM411-, TPC100-, TPR100-
地区/国家: China
认证机构: NEPSI
保护: Ex nA IIC T6...T1 GcExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: China
认证机构: NEPSI
保护: Ex ia IIC T6...T1 Ga, Ex iaD Txxx°CExplosion Protection中文 -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, process displays, head transmitters, Field transmitter, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TMT85-, TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT162-, TMT142-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, RID16-, RID14-, RIA16-, RIA15-, RIA14-
地区/国家: India
认证机构: NAGPUR
保护: Ex ia IIC T6...T1, Ex ia IIC T6...T4, Ex ib IIC T6...T4Explosion Protection英语 -
Process RTD Heavy duty, Process TC Heavy duty
产品型号: TC61-, TC62-, TC63-, TC65-, TC66-, TR61-, TR62-, TR63-, TR65-, TR66-
地区/国家: Europe (ATEX)
认证机构: KEMA
类别: II 2 D, II 2 G, II 1/2 D, II 1/2 G
保护: Ex d IIC T6...T1 Ga/Gb, Ex d IIC T6...T1 Gb, Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection英语 -
Process RTD Heavy duty
产品型号: TR61-, TR62-, TR63-, TR65-, TR66-
地区/国家: South Korea
认证机构: KOSHA
保护: Ex d IIC T6...T4Explosion Protection -
Process RTD Heavy duty, Process RTD Hygienic
产品型号: TR61-, TR62-, TR63-, TR65-, TR66-, TC61-, TC62-, TC63-, TC65-, TC66-
地区/国家: Europe (ATEX)
认证机构: CESI
类别: II1/2GD, II2GD, II2G
保护: Ex d IIC T6, Ex tD A21Explosion Protection英语 , 意大利语 -
ACCESSORIES: RTD INSERT, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic
产品型号: TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR100-, TR88-
地区/国家: South Korea
认证机构: KOSHA
保护: Ex ia IIC T6...T1Explosion Protection -
Process RTD Heavy duty, Process TC Heavy duty
产品型号: TR66-, TR65-, TR63-, TR62-, TR61-, TC66-, TC65-, TC63-, TC62-, TC61-
地区/国家: China
认证机构: NEPSI
保护: Ex d IIC T6...T4 GbExplosion Protection中文 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: Europe (ATEX)
认证机构: DEKRA
类别: II 1/2 D, II 1/2 G, II 1 D, II 1 G
保护: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C DaExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Low cost RTD General purpose, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, RTD-thermometer
产品型号: TR88-, TS111-, TSM187-, TSM487-, TST187-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST487-, TST602-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR300-, TPR100-
地区/国家: Russia
认证机构: Rosstandart
证书号: IT.C.32.004.A_66572Metrology俄语 -
Process RTD Heavy duty
产品型号: TR63-, TR66-
地区/国家: South Korea
认证机构: KRMarine英语 -
Process RTD General purpose, Process RTD Heavy duty
产品型号: TM131-, TR63-, TR66-
地区/国家: International
认证机构: DNVGLMarine英语 -
Process RTD Heavy duty
产品型号: TR63-, TR66-
地区/国家: International
认证机构: BVMarine英语
附件/备件
-
-
-
-
Nr B Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Nr B Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
-
-
-
Nr D Order code TA30H-
Terminal Head TA30H
Retainer for terminal block or head transmitter + optional display. Design: explosion proof. Cover: screwed, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50 150 oC (housing). Protection: IP66/68, NEMA 4X (housing). Protection Ex d/XP: IP66/67 (housing).
-
-
-
Nr B Order code TMT181-
-
Nr B Order code TMT182-
-
Nr B Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
