TC88
模块化温度计

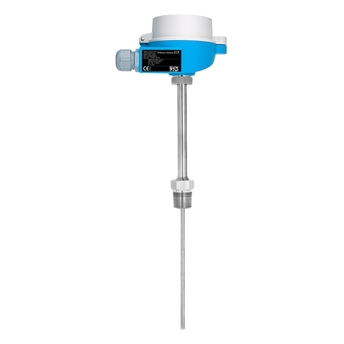

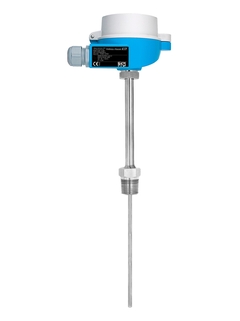

产品图片:TC88 热电偶温度计 ©Endress+Hauser
产品图片:应用中的 TC88 热电偶温度计

适合各行各业的全面、通用的温度测量技术

配置灵活、坚固耐用的温度计适合几乎所有行业应用,特别是食品化工行业。头部选装变送器的设备兼容所有通用通信协议,可即装即用,与直接连线的传感器相比,增强了测量精确度和可靠性。多种过程连接、规格和材质提供了应用的灵活性。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 模块化设计,采用符合DIN EN 50446的标准接线盒和客户指定的浸入长度,灵活性高

    • 延伸颈采用配件压紧连接,长度可调,适用不同护套管

    • 危险场所使用的保护类型:本质安全型(Ex ia),无火花型(Ex nA)

    • 头部变送器选择容易:模拟输出4至20 mA、HART®、PROFIBUS® PA或 FF现场总线

  • 应用领域

    • 通用型

    • 适用于已有温度套管的测量场合

    • 测量范围:–40~ 1100 °C (–40 ~ 2012 °F)

    • 防护等级 IP68

特征和规格

返回

Details

  • 测量原理

    热电偶

  • 特点/应用

    英标
    模块化温度计
    应用广泛
    可以在危险区中使用
    满足高压过程要求
    法兰过程连接
    带延长颈
    带热保护套管(金属)

  • 热保护套管

    与热保护套管配套使用

  • 铠装芯子/探头

    矿物绝缘材料(MI),可弯曲

  • 热保护套管外径

    Insert Diameter

    3,0 mm (0,12'')

    6,0 mm (0,24'')

  • 所需最大插入深度

    最大30,000.00 mm (1.181.10'')

  • 热保护套管材质

    1.4404 (316L)
    1.4571 (316Ti)
    Alloy 600合金

  • 可选带涂层

    未设置

  • 过程连接

    公螺纹:
    G1/2"
    NPT1/2"
    M14x1.5
    M18x1.5

  • 热保护套管末端类型

    直管型

  • 表面光洁度Ra

    0.8 μm (31.5 μin.)

  • 工作温度范围

    K型:
    -40...1.100 °C
    (-40...2.012 °F)
    J型:
    -40...750 °C
    (-40...1.382 °F)

  • 最大过程压力(静压)

    20 °C时:500 bar (7.252 psi)

  • 测量精度

    Cl. 1,符合IEC 60584标准

  • 响应时间

    取决于设置
    t50 = 1 s
    t90 = 2 s

  • 模块化温度变送器

    是(4 … 20 mA;HART;PROFIBUS PA;FOUNDATION FIELDBUS)

  • 防爆认证

    ATEX II
    NEPSI
    IECEx
    NEPSI

  • 证书

    Gost认证
    SIL(仅针对变送器)

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • C
  • A
  • E
    • Nr E Order code TN15-

      Extension neck for thermowell TN15

      Neck tube made from welded parts, with thread connection to a terminal head form DIN B and different connections to a separate thermowell.

  • D
    • Nr D Order code TA20A-

      Terminal Head TA20A

      Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.

    • Nr D Order code TA20B-

      Terminal Head TA20B

      Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black. Ambient temperature: max. +80 oC. Protection: IP65.

    • Nr D Order code TA20D-

      Terminal head TA20D

      Product being phased out, limited availability. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66

    • Nr D Order code TA20W-

      Terminal head TA20W

      Product being phased out, limited availability. Connection head hinged to mount a measuring insert with head transmitter or connection socket. To be mounted on an armature or a protection sleeve. Material: Aluminium Area temperature: max. +100 oC; ATEX: +95 oC Protection: IP66

    • Nr D Order code TA21E-

      Terminal Head TA21E

      Retainer for terminal block or head transmitter. Cover: srewable. Material: aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65.

  • F
  • B
    • Nr B Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Nr B Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Order code TID10-

      Display for head transmitter TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

    • Order code READWIN-

      Readwin 2000 Operation + Read. software

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  • D
    • Nr D Order code TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr D Order code TA30D-

      Terminal Head TA30D

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr D Order code TA30P-

      Terminal Head TA30P

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: Polyamid PA12 antistatic. Colour: black. Ambient temp.: -40...120oC (housing). Protection: IP65 (housing).

  • B
    • Nr B Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
