iTHERM TM401模块化的电阻温度计

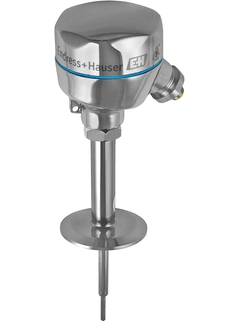

TM401模块化的电阻温度计 ©Endress+Hauser

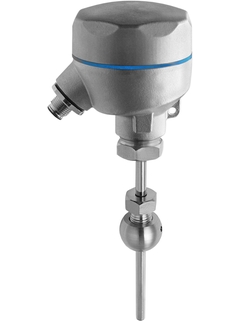

带球形焊接式适配器的TM401模块化的电阻温度计 ©Endress+Hauser

适合食品&饮料和生命科学行业使用的标准卫生和无菌设计

iTHERM温度计的设计满足食品&饮料和生命科学行业的基本要求,价格最优。作为一个市场细分明确的标准产品,它拥有多种规格。结果是产品选择简单迅速,从而节省时间和成本。设备使用的基础技术具有如下特点:工作元件固定,不可更换,可应用非危险区域,配备标准延伸颈,成本低。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 物超所值,发货迅速

    • 从产品选择到维护,使用户感到友好和可靠

    • 国际认证:卫生标准符合 3-A® , EHEDG, ASME BPE, FDA,TSE要求,适用性证书

    • 广泛的过程连接

特征和规格

返回

Details

  • 测量原理

    热电阻

  • 特点/应用

    英标型
    卫生型应用
    防腐应用
    卫生型过程连接
    带延长颈

  • 热保护套管

    无(不能与热保护套管配套使用)

  • 铠装芯子/探头

    无可更换铠装芯子

  • 热保护套管外径

    6.0 mm (0.24")
    8.0 mm (0.31")

  • 所需最大插入深度

    最大400 mm (15.75'')

  • 热保护套管材质

    316L

  • 过程连接

    卡套螺纹
    Triclamp卡箍
    Microclamp卡箍
    ISO2852接头
    Ingold接头
    G3/4" Liquiphant
    G1" Liquiphant
    Varivent
    SMS 1147
    DIN 11851螺纹管道接头

  • 热保护套管末端类型

    直管型
    缩径型

  • 表面光洁度Ra

    0.76 μm (30 μin)
    0.38 μm (15 μin)

  • 工作温度范围

    PT100:
    -50…200 °C
    (-58…392 °F)

  • 最大过程压力(静压)

    20 °C时:40 bar (580 psi)

  • 测量精度

    Cl. A,符合IEC 60751标准

  • 响应时间

    取决于设置

  • 模块化温度变送器

    是(4 ... 20 mA、HART)

  • 证书

    SIL (transmitter only)

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code 71182602

      密封

      5x O-ring 3.69x1.78 5x 0-ring 74.7x2.75

    • Order code 71182606

      密封

      5x O-ring 57x2.5 5x O-ring 64.3x1.8 blau

    • Order code 71367427

      垫片

      Packing unit: 10 pieces

    • Order code 71383294
    • Order code 60022519
    • Order code 71215757
    • Order code 52018765

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ", FMI51, FTI51 "GQJ" Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52028295

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ" w/o flange Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52021717

      O型圈

      for weld-in adapter G3/4 D=50 316L Liquiphant T FTL20H

    • Order code 52001052

      焊座

      Flush mount process connection FTL50/FTL50H "GQ2" Material: 316L Seal: Silicone O-ring

    • Order code 52011897

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80, QMW43. Usage: TMR35.

    • Order code 52014473

      O型圈

      for weld-in adapter G3/4 Liquiphant M "GQ2"

    • Order code 52001051

      过程连接件|Weld-in G1, d=60, 316L

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52011896

      焊座,G1,d=60 ,3.1材质认证

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71093129

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.

    • Order code 52014472

      O型圈

      for weld-in adapter G1 (52001051) Liquiphant M "GW2" Liquiphant T "7", Liquicap M "GWJ", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for weld-in andapter G1, 316L 3.1 (52011896) Liquiphant M "GW2", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for sliding sleeve Soliphant T

    • Order code 52001221

      焊座

      Flush mount process connection FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring

    • Order code 52011898

      焊座

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52014424

      密封垫圈

      for weld-in adapter G1, adjustable, 316L (52001221) Liquiphant M "GW2" for weld-in adapter G1, adjustable, 316L (52011898) Liquiphant M "GW2" for weld-in adapter G1, adjustable Liquiphant FTL330H/FTL330L, Liquiphant T FTL20H "UPJ

    • Order code 71405560

      Weld in adapter M12x1.5 1.4435/316L

    • Order code 71424800

      1/2" G螺纹底座

      for connection with G1/2" female thread. Material 316L/1.4435. 2x leakage bore.

    • Order code XPT0002-DC

      Connector for thermometer + transmitter

    • Order code 71044061

      设备包

      2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector

    • Order code XPT0004-

      Spare parts kit cover terminal headTA30R

      cover of connecting head

  • A
    • Nr A Order code TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr A Order code TA30R-

      Terminal Head TA30R

      Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.

    • Nr A Order code TA30S-

      Terminal Head TA30S

      Retainer for terminal block or head transmitter. Cover: screwed. Material: Polypropylene. Colour: white. Ambient Temperature: -30...+130oC. Protection: IP65, NEMA4X (housing). :: easy wiring through good accessibility. :: compact design, low weight.

  • B
    • Nr B Order code TMT180-

      iTEMP TMT180, Head Transmitter Pt100

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT71-

      iTEMP TMT71, Transmitter 4-20mA

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

    • Order code TMT72-

      iTEMP TMT72, Transmitter HART

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

  • B
    • Nr B Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr B Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
