TC13
Modular TC thermometer

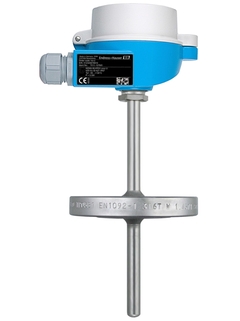

TC Thermometer, explosion-protected with thermowell and a variety of different flanges
The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量精度
Cl. 1,符合IEC 60584标准
-
响应时间
取决于设置
t50 = 6 s
t90 = 13 s -
最大过程压力(静压)
20 °C时:50 bar (725 psi)
-
工作温度范围
K型:
-40...1.100 °C
(-40...2.012 °F)
J型:
-40...750 °C
(-40...1.382 °F) -
所需最大插入深度
最大10,000.00 mm (393.70'')
-
快速选择
个性化配置
-
优势
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter...
-
应用领域
Universal range of application
Measuring range: -40 to 1100 °C (-40 to 2012 °F)
Pressure range up to 100 bar (1450 psi)
Degree of protection: up to IP68
文档/手册/软件
-
技术资料
Omnigrad M TC13
热电偶(TC) 温度计
可更换铠装芯子,热保护套管采用法兰过程连接
PCP (4...20 mA)、HART® 或PROFIBUS® PA 电子部件技术信息(TI) -
Omnigrad M TR13, TC13
Modular thermometer, with optional RTD or TC insert
技术信息(TI) -
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db ХEx 防爆说明(XA) -
RTD/TC thermometers
ATEX II 3G, II 3D
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
iTHERM TS111, TM211
Omniset TPx100, Omnigrad TSx310
RTD/TC inserts and cable thermometers
ATEX:
II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC
IECEx:
Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x
ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex
iaIIC
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
TR1x、TR4x、TR88、TSC310、TST310、TR6x、TC1x、TC6x、TC88、TPC100、
TPR100
、TM411、 TM412、TR24
温度计和测温芯子
Ex ia IIC T1-T6 Ga、Ex iaD 20 T85-T450Ex 防爆说明(XA) -
Omnigrad M TR10, TR11, TR12, TR13, TC10, TC12, TC13
ATEX: II 1/2D Ex ta/tb IIIC T85 °C...T450 °D Da/Db
IECEx: Ex ta/tb IIIC T85 °C...T450 °C Da/Db
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
实际应用(FA)12/19fr -
温度测量
过程工业用温度传感器和温度变送器
实际应用(FA)12/14中文 -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych实际应用(FA)10/14波兰语 -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.实际应用(FA)06/13俄语 -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
实际应用(FA)04/18西班牙语 -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo实际应用(FA)04/18意大利语 -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
实际应用(FA)03/13土耳其语 -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)03/13英语 -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
实际应用(FA)02/20德语 -
Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)02/20英语 -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
竞争力手册(CP)08/11俄语 -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности竞争力手册(CP)04/10俄语 -
Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC General purpose
产品型号: TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TR10-, TR11-, TR12-, TR13-
Manufacturer Declaration英语 -
Process TC General purpose
产品型号: TC13-
一致性声明编号: HE_00490_01.17
制造商规格: RoHSManufacturer Declaration英语 -
Process RTD General purpose, Process TC General purpose, Process RTD Hygienic, Process RTD Heavy duty, Process RTD Direct contact, Process TC Heavy duty, Process TC direct in contact, ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS
产品型号: TC10-, TC12-, TC13-, TR11-, TR12-, TR13-, TR15-, TR24-, TM411-, TM412-, TR10-, TR45-, TR47-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TST310-, TC15-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TSC310-, TPR100-, TPC100-, TS111-
一致性声明编号: EC_00177_01.16EU Declaration德语 , 英语 , fr -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM412-, TM411-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
一致性声明编号: EC_00177_02.16EU Declaration德语 , 英语 , fr -
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
产品型号: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
一致性声明编号: EC_00136_02.16EU Declaration德语 , 英语 -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
产品型号: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
一致性声明编号: EC_00568_01.17EU Declaration德语 , 英语 , fr -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, ACCESSORIES: T_INSERTS, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-, TPR100-
一致性声明编号: EC_00169_02.16EU Declaration德语 , 英语 , fr -
Process RTD General purpose, Process TC General purpose
产品型号: TC10-, TC12-, TC13-, TR10-, TR11-, TR12-, TR13-
一致性声明编号: EC_00191_02.16EU Declaration德语 , 英语 , fr -
Process RTD General purpose, Process RTD Heavy duty, Process TC General purpose, Process TC Heavy duty
产品型号: TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: China
认证机构: ACMA
证书号: MD-17033A/09/ENMiscellaneous英语 -
ACCESSORIES: TC INSERT, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TSC310-, TPC300-, TPC100-, TEC300-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-, TAF11-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC RU D-DE.AZ01.B.01156Miscellaneous俄语 -
Process RTD General purpose, Process TC General purpose
产品型号: TC10-, TC12-, TC13-, TR10-, TR11-, TR12-, TR13-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: Europe (ATEX)
认证机构: DEKRA
类别: II 1/2 D, II 1/2 G, II 1 D, II 1 G
保护: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C DaExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR10-, TPR100-, TPC100-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
保护: Ex d IIC T6...T1 Ga/Gb, Ex d IIC Txxx°C Gb, Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/Db, Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection俄语 -
ACCESSORIES: TC INSERT, Process TC General purpose, Process TC Heavy duty
产品型号: TPC100-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: South Korea
认证机构: KOSHA
保护: Ex ia IIC T6...T1Explosion Protection -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, process displays, head transmitters, Field transmitter, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TMT85-, TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT162-, TMT142-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, RID16-, RID14-, RIA16-, RIA15-, RIA14-
地区/国家: India
认证机构: NAGPUR
保护: Ex ia IIC T6...T1, Ex ia IIC T6...T4, Ex ib IIC T6...T4Explosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/DbExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TS211-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TM111-, TM131-, TM411-, TPC100-, TPR100-
地区/国家: China
认证机构: NEPSI
保护: Ex nA IIC T6...T1 GcExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: China
认证机构: NEPSI
保护: Ex ia IIC T6...T1 Ga, Ex iaD Txxx°CExplosion Protection中文 -
Process RTD General purpose, Process TC General purpose
产品型号: TC10-, TC12-, TC13-, TR10-, TR11-, TR12-, TR13-
地区/国家: Europe (ATEX)
认证机构: DEKRA
类别: II 1/2 D
保护: Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection英语 -
ACCESSORIES: TC INSERT, Process TC Direct contact, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TSC310-, TPC300-, TPC200-, TPC100-, TEC420-, TEC300-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-, TAF11-
地区/国家: Russia
认证机构: Rosstandart
证书号: IT.C.32.004.A_66573Metrology俄语
