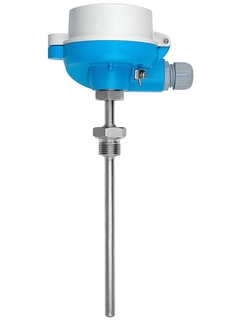

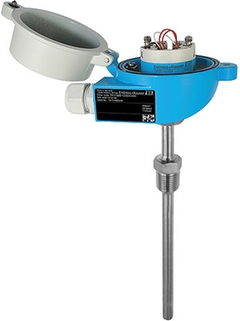

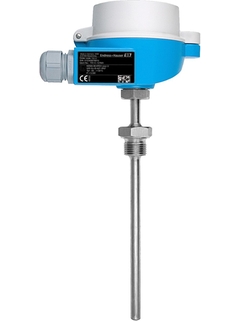

TC10
模块化热电偶温度计
适合各行各业的全面、通用的温度测量技术
高度模块化、坚固耐用的温度计适合几乎所有行业应用。头部选装变送器的设备兼容所有通用通信协议,可即装即用,与直接连线的传感器相比,增强了测量精确度和可靠性。多种过程连接、规格和材质提供了应用的灵活性。
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量精度
Cl. 1,符合IEC 60584标准
-
响应时间
取决于设置
t50 = 6 s
t90 = 13 s -
最大过程压力(静压)
20 °C时:75 bar (1088 psi)
-
工作温度范围
K型:
-40...1.100 °C
(-40...2.012 °F)
J型:
-40...750 °C
(-40...1.382 °F) -
所需最大插入深度
最大10,000.00 mm (393.70'')
-
快速选择
个性化配置
-
优势
模块化设计,采用符合DIN EN 50446的标准接线盒和客户指定的浸入长度,灵活性高
测量工作元件兼容性高,设计符合DIN 43772标准
延伸颈防止头部变送器过热
短锥/锥形端部,加快反应时间
危险场所使用的保护类型:本质安全型(Ex ia),无火花型(Ex nA)
头部变送器选择容易:模拟输出4至20 mA、HART®、PROFIBUS® PA或 FF现场总线
文档/手册/软件
-
Omnigrad M TC10
Modular Thermocouple assembly,
Extension neck and thermowell, threaded connection技术信息(TI) -
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db ХEx 防爆说明(XA) -
RTD/TC thermometers
ATEX II 3G, II 3D
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
TR1x、TR4x、TR88、TSC310、TST310、TR6x、TC1x、TC6x、TC88、TPC100、
TPR100
、TM411、 TM412、TR24
温度计和测温芯子
Ex ia IIC T1-T6 Ga、Ex iaD 20 T85-T450Ex 防爆说明(XA) -
iTHERM TS111, TM211
Omniset TPx100, Omnigrad TSx310
RTD/TC inserts and cable thermometers
ATEX:
II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC
IECEx:
Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x
ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex
iaIIC
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
Omnigrad M TR10, TR11, TR12, TR13, TC10, TC12, TC13
ATEX: II 1/2D Ex ta/tb IIIC T85 °C...T450 °D Da/Db
IECEx: Ex ta/tb IIIC T85 °C...T450 °C Da/Db
Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Ex 防爆说明(XA) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
实际应用(FA)12/19fr -
温度测量
过程工业用温度传感器和温度变送器
实际应用(FA)12/14中文 -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych实际应用(FA)10/14波兰语 -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.实际应用(FA)06/13俄语 -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
实际应用(FA)04/18西班牙语 -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo实际应用(FA)04/18意大利语 -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
实际应用(FA)03/13土耳其语 -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)03/13英语 -
Temperature measurement
Thermometers and transmitters for the process industry
实际应用(FA)02/20英语 -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
实际应用(FA)02/20德语 -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
竞争力手册(CP)08/11俄语 -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности竞争力手册(CP)04/10俄语 -
Process TC General purpose
产品型号: TC10-
一致性声明编号: HE_00488_01.17
制造商规格: RoHSManufacturer Declaration英语 -
Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC General purpose
产品型号: TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TR10-, TR11-, TR12-, TR13-
Manufacturer Declaration英语 -
Process RTD General purpose, Process TC General purpose, Process RTD Hygienic, Process RTD Heavy duty, Process RTD Direct contact, Process TC Heavy duty, Process TC direct in contact, ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS
产品型号: TC10-, TC12-, TC13-, TR11-, TR12-, TR13-, TR15-, TR24-, TM411-, TM412-, TR10-, TR45-, TR47-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TST310-, TC15-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TSC310-, TPR100-, TPC100-, TS111-
一致性声明编号: EC_00177_01.16EU Declaration德语 , 英语 , fr -
Process RTD General purpose, Process TC General purpose
产品型号: TC10-, TC12-, TC13-, TR10-, TR11-, TR12-, TR13-
一致性声明编号: EC_00191_02.16EU Declaration德语 , 英语 , fr -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM412-, TM411-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
一致性声明编号: EC_00177_02.16EU Declaration德语 , 英语 , fr -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
产品型号: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
一致性声明编号: EC_00568_01.17EU Declaration德语 , 英语 , fr -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, ACCESSORIES: T_INSERTS, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-, TPR100-
一致性声明编号: EC_00169_02.16EU Declaration德语 , 英语 , fr -
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
产品型号: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
一致性声明编号: EC_00136_02.16EU Declaration德语 , 英语 -
ACCESSORIES: TC INSERT, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TSC310-, TPC300-, TPC100-, TEC300-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-, TAF11-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC RU D-DE.AZ01.B.01156Miscellaneous俄语 -
Process RTD General purpose, Process RTD Heavy duty, Process TC General purpose, Process TC Heavy duty
产品型号: TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: China
认证机构: ACMA
证书号: MD-17033A/09/ENMiscellaneous英语 -
Process RTD General purpose, Process TC General purpose
产品型号: TC10-, TC12-, TC13-, TR10-, TR11-, TR12-, TR13-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection英语 -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, process displays, head transmitters, Field transmitter, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TMT85-, TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT162-, TMT142-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, RID16-, RID14-, RIA16-, RIA15-, RIA14-
地区/国家: India
认证机构: NAGPUR
保护: Ex ia IIC T6...T1, Ex ia IIC T6...T4, Ex ib IIC T6...T4Explosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/DbExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TS211-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TM111-, TM131-, TM411-, TPC100-, TPR100-
地区/国家: China
认证机构: NEPSI
保护: Ex nA IIC T6...T1 GcExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: China
认证机构: NEPSI
保护: Ex ia IIC T6...T1 Ga, Ex iaD Txxx°CExplosion Protection中文 -
ACCESSORIES: TC INSERT, Process TC General purpose, Process TC Heavy duty
产品型号: TPC100-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: South Korea
认证机构: KOSHA
保护: Ex ia IIC T6...T1Explosion Protection -
Process RTD General purpose, Process TC General purpose
产品型号: TC10-, TC12-, TC13-, TR10-, TR11-, TR12-, TR13-
地区/国家: Europe (ATEX)
认证机构: DEKRA
类别: II 1/2 D
保护: Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: Europe (ATEX)
认证机构: DEKRA
类别: II 1/2 D, II 1/2 G, II 1 D, II 1 G
保护: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C DaExplosion Protection英语 -
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR10-, TPR100-, TPC100-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
保护: Ex d IIC T6...T1 Ga/Gb, Ex d IIC Txxx°C Gb, Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/Db, Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/DbExplosion Protection俄语 -
ACCESSORIES: TC INSERT, Process TC Direct contact, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TSC310-, TPC300-, TPC200-, TPC100-, TEC420-, TEC300-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-, TAF11-
地区/国家: Russia
认证机构: Rosstandart
证书号: IT.C.32.004.A_66573Metrology俄语
附件/备件
-
-
-
Nr D Order code TA20A-
Terminal Head TA20A
Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.
-
Nr D Order code TA20B-
Terminal Head TA20B
"Product being phased out, limited availability." Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black. Ambient temperature: max. +80 oC. Protection: IP65.
-
Nr D Order code TA20D-
Terminal head TA20D
Product being phased out, limited availability. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66
-
Nr D Order code TA20R-
Terminal Head TA20R
Product being phased out, limited availability. Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: AISI316L/1.4404. max temperature 100oC, ATEX: +95oC. Protection class IP66/IP67.
-
Nr D Order code TA20W-
Terminal head TA20W
Product being phased out, limited availability. Connection head hinged to mount a measuring insert with head transmitter or connection socket. To be mounted on an armature or a protection sleeve. Material: Aluminium Area temperature: max. +100 oC; ATEX: +95 oC Protection: IP66
-
-
-
Nr B Order code TMT84-
iTEMP TMT84, Transmitter PA
Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
Nr B Order code TMT85-
iTEMP TMT85, Transmitter FF
Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.
-
-
-
-
Nr D Order code TA30A-
Terminal Head TA30A
Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).
-
-
-
Nr B Order code TMT82-
iTEMP TMT82, Transmitter HART
2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
-
