Omnigrad M TR48

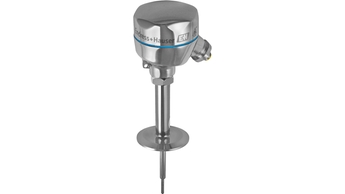

产品图片 Omnigrad M TR48

此产品现已不再销售。

想要查看新产品,请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    热电阻

  • 特点/应用

    带延伸颈,可变安装角,卫生型设计,适用于食品、制药行业使用

  • 热保护套管

    无套管

  • 铠装芯子/探头

    不可替换

  • 热保护套管外径

    4,5 mm (0,18'')

  • 所需最大插入深度

    300

  • 热保护套管材质

    1.4435 (316L)

  • 过程连接

    卫生型焊入式:球形压紧装置(可调节或不可调节)

  • 热保护套管末端类型

    直渐缩管

  • 表面光洁度Ra

    0,4 μm (15,7 μin.)

    0,8 μm (31,5 μin.)

  • 工作温度范围

    -50…200℃

  • 最大过程压力(静压)

    75...140 bar

  • 测量精度

    A类或1/3 DIN B

  • 响应时间

    t50 = 3s,t90 = 10s

  • 模块化温度变送器

    PCP 4...20 mA,HART,PROFIBUS PA

  • 防爆认证

    ATEX

  • 证书

    Gost Metrology

    FDA

    SIL (transmitter only)

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • A
    • Nr A Order code TA20A-

      接线盒 TA20A

      Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.

    • Nr A Order code TA20B-

      接线盒 TA20B

      Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black Ambient temperature: max. +80 oC Protection: IP65

    • Nr A Order code TA20R-

      接线盒 TA20R

      Stainless steel AISI 316L W 1.4404. Max temperature 100 oC, ATEX: +95 oC. Protection class IP66/IP67

    • Nr A Order code TA21E-

      接线盒 TA21E

      Retainer for terminal block or head transmitter. Cover: srewable. Material: Aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65.

  • C
    • Nr C Order code TMT82-

      模块温度变送器 TMT82

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Nr C Order code TMT84-

      模块温度变送器 TMT84

      Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable.

    • Nr C Order code TMT85-

      模块温度变送器 TMT85

      Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose.

    • Nr C Order code TID10-

      温度变送器显示器TID10

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84.

    • Order code READWIN-

      Readwin 2000调试包 READWIN

      Readwin 2000 Operation + Read. software

    • Order code TXU10-

      仪表调试包 TXU10

      用于可以PC编程调试的设备 程序设置+用于带USB接口的PC的连接线

    • Order code FXA195-

      通讯接口 FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  • A
    • Nr A Order code TA30A-

      接线头 TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Nr A Order code TA30D-

      接线头 TA30D

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

  • C
    • Nr C Order code TMT180-

      模块温度变送器 TMT180

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr C Order code TMT181-

      模块温度变送器 TMT181

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Nr C Order code TMT182-

      模块温度变送器 TMT182

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine.
