Omnigrad M TR47

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

测量原理

热电阻
特点/应用

带延伸颈，强抗压保护，带套管可变安装角，卫生型设计
热保护套管

棒状套管
铠装芯子/探头

可替换 (无需中断过程）
热保护套管外径

3,00 mm ...13,00 mm

(0,12'' ...0,51'')
所需最大插入深度

up to 600,00 mm (23,62'')
热保护套管材质

1.4435 (316L)
可选带涂层

Tantal
过程连接

卫生型焊入式，柱型、球型
热保护套管末端类型

直渐缩管
表面光洁度Ra

0,4 μm (15,7 μin.)

0,8 μm (31,5 μin.)
工作温度范围

-50...400℃
最大过程压力（静压）

170 bar
测量精度

A类或1/3 DIN B
响应时间

t50 = 4s，t90 = 11s
模块化温度变送器

PCP 4...20 mA，HART，PROFIBUS PA
防爆认证

ATEX 1 GD EEx ia
证书

Gost Metrology

FDA

3A

SIL (transmitter only)

显示更多
显示更少

文档/手册/软件

下载类型

过滤

Technical Information
omnigrad M TR47, TR48
Hygienic RTD temperature sensor assembly for weld-in installation
With or without thermowell and M.I. replaceable insert
PCP (4...20 mA), HART® or PROFIBUS-PA® electronic safety

技术信息(TI)
iTHERM TS111, TM211 Omniset TPx100, Omnigrad TSx310 RTD/TC inserts and cable thermometers ATEX: II1D, II1/2D Ex ia IIIC or II1G, II1/2G Ex ia IIC IECEx: Ex ia IIC Ga, Ga/Gb
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex 防爆说明(XA)
TR1x、TR4x、TR88、TSC310、TST310、TR6x、TC1x、TC6x、TC88、TPC100、 TPR100 、TM411、 TM412、TR24
温度计和测温芯子
Ex ia IIC T1-T6 Ga、Ex iaD 20 T85-T450

Ex 防爆说明(XA)
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db Х

Ex 防爆说明(XA)
Omnigrad TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x ATEX: II 1D, II 1/2D Ex ia IIIC or II 1G, II 1/2G Ex ia IIC IECEx: Ex iaIIC Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex 防爆说明(XA)
RTD/TC thermometers ATEX II 3G, II 3D Safety Instructions
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.

Ex 防爆说明(XA)
Mesure de température
Capteurs et transmetteurs pour les industries de process

实际应用(FA)

12/19

fr
温度测量
过程工业用温度传感器和温度变送器

实际应用(FA)

12/14

中文
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznych

实际应用(FA)

10/14

波兰语
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.

实际应用(FA)

06/13

俄语
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso

实际应用(FA)

04/18

西班牙语
Misura della temperatura
Termometri e trasmettitori
per l'industria di processo

实际应用(FA)

04/18

意大利语
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry

实际应用(FA)

03/13

英语
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler

实际应用(FA)

03/13

土耳其语
Temperature measurement
Thermometers and transmitters for the process industry

实际应用(FA)

02/20

英语
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie

实际应用(FA)

02/20

德语
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли

竞争力手册(CP)

08/11

俄语
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленности

竞争力手册(CP)

04/10

俄语
Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC General purpose
产品型号: TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TR10-, TR11-, TR12-, TR13-

Manufacturer Declaration

英语
Product Family: Process RTD Hygienic
产品型号: TR48-, TR47-, TR46-, TR45-, TR44-

FDA Declaration

德语 , 英语 , fr
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
产品型号: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
一致性声明编号: EC_00136_02.16

EU Declaration

德语 , 英语
Process RTD General purpose, Process TC General purpose, Process RTD Hygienic, Process RTD Heavy duty, Process RTD Direct contact, Process TC Heavy duty, Process TC direct in contact, ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS
产品型号: TC10-, TC12-, TC13-, TR11-, TR12-, TR13-, TR15-, TR24-, TM411-, TM412-, TR10-, TR45-, TR47-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TST310-, TC15-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TSC310-, TPR100-, TPC100-, TS111-
一致性声明编号: EC_00177_01.16

EU Declaration

德语 , 英语 , fr
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, ACCESSORIES: T_INSERTS, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR10-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-, TPR100-
一致性声明编号: EC_00169_02.16

EU Declaration

德语 , 英语 , fr
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC direct in contact, Process TC General purpose, Process TC Heavy duty
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM412-, TM411-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
一致性声明编号: EC_00177_02.16

EU Declaration

德语 , 英语 , fr
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, ACCESSORIES: T_INSERTS, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic
产品型号: TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS101-, TS111-, TST310-, TST434-, TST602-, TR45-, TR44-, TR25-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR300-, TPR100-, TM411-, TM401-, TET300-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC RU D-DE.AZ01.B.01156

Miscellaneous

俄语
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: China
认证机构: NEPSI
保护: Ex ia IIC T6...T1 Ga, Ex iaD Txxx°C

Explosion Protection

中文
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: Europe (ATEX)
认证机构: DEKRA
类别: II 1/2 D, II 1/2 G, II 1 D, II 1 G
保护: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da

Explosion Protection

英语
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, process displays, head transmitters, Field transmitter, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TMT85-, TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT162-, TMT142-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, RID16-, RID14-, RIA16-, RIA15-, RIA14-
地区/国家: India
认证机构: NAGPUR
保护: Ex ia IIC T6...T1, Ex ia IIC T6...T4, Ex ib IIC T6...T4

Explosion Protection

英语
ACCESSORIES: RTD INSERT, ACCESSORIES: TC INSERT, Process RTD Direct contact, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic, Process TC Direct contact, Process TC direct in contact
产品型号: TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-, TR11-, TR10-, TPR100-, TPC100-, TM411-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da, Ex ia IIIC Txxx°C Da/Db

Explosion Protection

英语
ACCESSORIES: RTD INSERT, Process RTD General purpose, Process RTD Heavy duty, Process RTD Hygienic
产品型号: TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR24-, TR15-, TR13-, TR12-, TR11-, TR10-, TPR100-, TR88-
地区/国家: South Korea
认证机构: KOSHA
保护: Ex ia IIC T6...T1

Explosion Protection

显示更多
显示更少

附件/备件

???显示为PDF???

搜索

过滤

Order code

Specification

- Order code 71249291

  导热油 FDA认证 30g

  显示详细信息隐藏详细信息
- Order code 71367406

  铜密封圈

  Packing unit: 10 pieces

  显示详细信息隐藏详细信息
- Order code 71111513

  陶瓷接线端

  显示详细信息隐藏详细信息
- Order code 71111514

  陶瓷接线端

  显示详细信息隐藏详细信息
- Order code 71111515

  陶瓷接线端

  显示详细信息隐藏详细信息
- Order code 71044061

  设备包

  2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector

  显示详细信息隐藏详细信息
- Order code 71163501

  密封圈

  显示详细信息隐藏详细信息
- Order code 52028179

  垫圈

  Profile gasket for cover Stainless steel housing F15

  显示详细信息隐藏详细信息
- Order code 60017971

  显示屏

  Display LC for TA20J

  显示详细信息隐藏详细信息
- Order code 71043745

  大气补偿过滤口

  Consists of: filter plug plastic, Pressure compensation filter, O-ring. Usage: housing F15. Non Ex.

  显示详细信息隐藏详细信息
- Order code TPR100-

  热电阻芯 TPR100

  Mineral insulated cable (MgO) Replaceable insert acc.EN60751. max. measuring range: -200...600 oC (depending on configuration)

  显示详细信息隐藏详细信息
- Order code TN15-

  延长颈 TN15

  Neck tube made from welded parts, with thread connection to a terminal head form DIN B and different connections to a separate thermowell.

  显示详细信息隐藏详细信息
- Order code TT411-

  iTHERM TT411保保护套管

  Thermowell with hygienic design. Metrical version for applications in the food/beverages and pharmaceutical industries.

  显示详细信息隐藏详细信息
A
- Nr A Order code TA20A-

  接线盒 TA20A

  Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.

  显示详细信息隐藏详细信息
- Nr A Order code TA20B-

  接线盒 TA20B

  Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black Ambient temperature: max. +80 oC Protection: IP65

  显示详细信息隐藏详细信息
- Nr A Order code TA20D-

  接线盒 TA20D

  Product being phased out, limited availability. Connection head to mount a measuring insert with up to two head transmitters or a connection socket and one head transmitter. For mounting on armature or protection sleeve. Material: Aluminium, varnished Ambient temperature: max. +100 oC; ATEX: +95 oC. Protection: IP66

  显示详细信息隐藏详细信息
D
- Nr D Order code TA20R-

  接线盒 TA20R

  Stainless steel AISI 316L W 1.4404. Max temperature 100 oC, ATEX: +95 oC. Protection class IP66/IP67

  显示详细信息隐藏详细信息
A
- Nr A Order code TA20W-

  接线盒 TA20W

  Product being phased out, limited availability. Connection head hinged to mount a measuring insert with head transmitter or connection socket. To be mounted on an armature or a protection sleeve. Material: Aluminium Area temperature: max. +100 oC; ATEX: +95 oC Protection: IP66

  显示详细信息隐藏详细信息
- Nr A Order code TA21E-

  接线盒 TA21E

  Retainer for terminal block or head transmitter. Cover: srewable. Material: Aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65.

  显示详细信息隐藏详细信息
C
- Nr C Order code TMT82-

  模块温度变送器 TMT82

  2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

  显示详细信息隐藏详细信息
- Nr C Order code TMT84-

  模块温度变送器 TMT84

  Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable.

  显示详细信息隐藏详细信息
- Nr C Order code TMT85-

  模块温度变送器 TMT85

  Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose.

  显示详细信息隐藏详细信息
- Nr C Order code TID10-

  温度变送器显示器TID10

  to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84.

  显示详细信息隐藏详细信息
- Order code TXU10-

  仪表调试包 TXU10

  用于可以PC编程调试的设备程序设置+用于带USB接口的PC的连接线

  显示详细信息隐藏详细信息
- Order code READWIN-

  Readwin 2000调试包 READWIN

  Readwin 2000 Operation + Read. software

  显示详细信息隐藏详细信息
- Order code FXA195-

  通讯接口 FXA195

  Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  显示详细信息隐藏详细信息
A
- Nr A Order code TA30A-

  接线头 TA30A

  Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

  显示详细信息隐藏详细信息
- Nr A Order code TA30D-

  接线头 TA30D

  Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

  显示详细信息隐藏详细信息
C
- Nr C Order code TMT180-

  模块温度变送器 TMT180

  Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

  显示详细信息隐藏详细信息
- Nr C Order code TMT181-

  模块温度变送器 TMT181

  Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

  显示详细信息隐藏详细信息
- Nr C Order code TMT182-

  模块温度变送器 TMT182

  Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine.

  显示详细信息隐藏详细信息

显示更多
显示更少

老产品
- TST74

替代产品

F

L

E

X

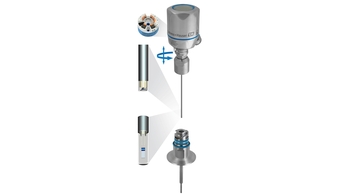

iTHERM TM411
