绝压与表压测量
Cerabar PMP75

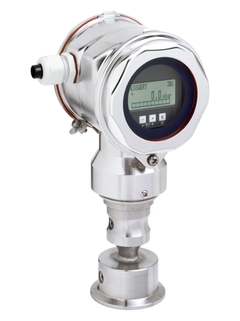

Cerabar PMP75 ©Endress+Hauser

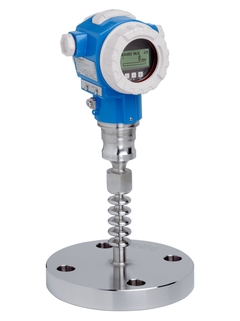

Cerabar PMP75 ©Endress+Hauser

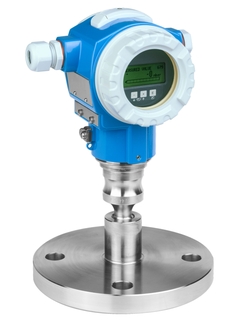

Cerabar PMP75 ©Endress+Hauser

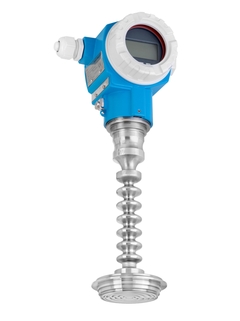

Cerabar PMP75 TempC薄膜 ©Endress+Hauser
Cerabar PMP75 TempC薄膜 ©Endress+Hauser
  • Cerabar PMP75
  • Cerabar PMP75
  • Cerabar PMP75
  • Cerabar PMP75 TempC薄膜
  • Cerabar PMP75 TempC薄膜

数字压力变送器采用膜片密封，适用于气体、蒸汽和和液体。

Ceraba PMP75数字压力变送器采用金属膜片密封，主要用于过程工业和卫生行业，可用于测量液体或气体的压力、液位、体积和质量。变送器适用于高温、高压场合，温度范围可从-70至400 °C。测量范围可调，可快速设置，节省成本和时间。设计符合IEC61508标准SIL2/3功能安全系统。

Extended选型
  • F
  • L
  • E
  • X

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富，适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 测量精度

      0.075% +隔膜密封系统的影响

    • 过程温度

      -70...400 °C
      (-94...752 °F)

    • 压力测量范围

      100mbar...400bar
      (1.5...5800 psi)

    • 过程压力（绝压）/最大过压限定值

      1050bar (15200psi)

    • 主要接液部件

      Alloy C276合金
      316L
      Monel
      钽
      PTFE膜

    • 最大测量距离

      7000m (22.966ft) H2O

    • 过程膜片的材质

      316L、AlloyC合金、
      钽
      铑>金
      PTFE

    • 传感器

      100 mbar...700 bar
      (1.5...10.150 psi)
      表压/绝压

Loading alternative products

快速选择

从我们建议的选项中选择
Sales price
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

PMP75
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
价格核算中…
暂时无价格信息
from CHF 803.-
  • 可选附加功能
请使用 Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

附加组件

  • 优势

    • 大量、多种隔膜密封材料和过程连接

    • HistoROM®/M-DAT 记忆存储单元，可回溯仪表设定与测量值

    • 根据IEC 61508开发与设计，适用于SIL2/3安全系统（最小，最大，范围）

    • 从测量薄膜到电子器件的过载保护与功能监控

    • 快速设置菜单可快速设置基本调试参数，菜单引导式操作，提供高级故障诊断功能。拥有无缝、独立的系统集成(HART/PA/FF)

    • 气密引线提供标准的第二道防线

    • 全新TempC膜片，最小化温度的影响，恢复时间短

  • 应用领域

    双腔室铝或不锈钢 (316L) 外壳

    • 过程链接：螺纹，法兰或卫生型连接

    • 温度范围：-70 至 +400°C (-94 至 +752°F)

    • 压力范围：+100mbar 至 +400bar (+1.5 至 +5.800psi)

    • 精度误差：±0.075%

    • 国际防爆保护认证，WHG过溢防护，EN 10204-3.1，海上认证，3A认证

特征和规格

返回

Details

  • 测量原理

    绝压和表压

  • 特点

    数字式变送器，带压阻硅传感器和焊接金属膜片
    模块化变送器
    高长期稳定性
    通过自诊断功能提高安全性
    第二层过程安全栅

  • 供电电压

    4...20mA HART
    10.5...45V DC（非防爆）：
    Ex ia：10.5...30V DC
    PROFIBUS PA：
    9...32 V DC（非防爆）
    FOUNDATION Fieldbus：
    9...32 V DC（非防爆）

  • 参考测量精度

    0.075% +隔膜密封系统的影响

  • 长期稳定性

    0.05% URL /年

  • 过程温度

    -70...400 °C
    (-94...752 °F)

  • 环境温度

    -40...85 °C
    (-40...185 °F)

  • 传感器

    100 mbar...700 bar
    (1.5...10.150 psi)
    表压/绝压

  • 最小可标定量程

    5 mbar (0.075 psi)

  • 抗真空压力

    10 mbar (1.45 psi)

  • 最大量程比

    100:1

  • 最大过压限定值

    1050bar (15.750psi)

  • 过程连接

    螺纹：
    G1/2...G2、R1/2、MNPT1/2...MNPT2、NPT1/2...NPT1
    法兰：
    DN25...100、
    ASME 1"...4"、
    JIS 10K
    隔膜密封系统

  • 卫生型过程连接

    Tri-Clamp
    DIN11851
    NEUMO
    Varivent
    SMS
    DRD
    通用接头

  • 过程膜片的材质

    316L、AlloyC合金、
    钽
    铑>金
    PTFE

  • 垫圈材质

    无，焊接膜片

  • 填充液

    硅油、
    惰性油、
    植物油、
    高温油、
    低温油、

  • 外壳材质

    铸铝、
    AISI 316L

  • 通信

    4...20mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、EAC

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN10204-3.1
    NACE MR0103

  • 卫生型认证

    3A、EHEDG

  • 船级认证

    GL/ ABS

  • 特点

    诊断功能
    TempC膜片

  • 替代产品

    PMP71B

  • 测量原理

    绝压和表压

  • 特点/应用

    数字式变送器，带压阻硅传感器和焊接金属膜片
    模块化变送器
    高长期稳定性
    通过自诊断功能提高安全性
    第二层过程安全栅

  • 特点

    诊断功能
    多语言显示软件

  • 电源/通信

    4...20mA HART：
    10.5...45 VDC
    Ex ia：10.5...30 VDC
    PROFIBUS PA /
    FOUNDATION Fieldbus：
    9...32 VDC

  • 测量精度

    0.075% +隔膜密封系统的影响

  • 长期稳定性

    0.05% URL /年

  • 环境温度

    -50...85°C
    (-58...185°F)

  • 过程温度

    -70...400 °C
    (-94...752 °F)

  • 过程压力（绝压）/最大过压限定值

    1050bar (15200psi)

  • 压力测量范围

    100mbar...400bar
    (1.5...5800 psi)

  • 主要接液部件

    Alloy C276合金
    316L
    Monel
    钽
    PTFE膜

  • 过程连接

    螺纹
    法兰（DIN、ASME、JIS），带齐平安装的膜片
    Tri-Clamp ISO02852卡箍
    卫生型连接

  • 最大测量距离

    7000m (22.966ft) H2O

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、EAC

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN 10204-3.1
    NACE MR0175、MR0103

  • 卫生型认证

    3A、EHEDG

  • 船级认证

    GL/ ABS

  • 选项

    HistoROM/M-Dat
    四行数字显示
    不锈钢外壳或铝外壳
    分离型外壳

  • 替代产品

    PMP71B

  • 应用限制

    传感器：金属焊接
    带压时，使用带两台压力变送器的差压测量（电子差压）。注意
    表压比：
    静压

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 13
  • 15
    • Nr 15 Order code 52020760

      缆塞

      consists of: cable gland M20 O-ring 18.72x2.62 VMQ Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020761

      电缆入口

      consists of: gasket 18.72x2.51 NBR adapter M20 > G1/2 O-ring 18.77x1.78 NBR Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020762

      插接头

      Harting plug set Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020763

      插接头

      Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Order code 71111056

      大气补偿过滤口

      Consists of: vent screw 304. Pressure compensation filter. O-ring EPDM, protection lid. Usage: housing T14, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Housing F31, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55. Housing F15 w/o B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

    • Order code 71219639

      大气补偿过滤口

      Consists of: vent screw 304. Pressure compensation filter. O-ring VMQ, protection lid. Usage: housing T17, FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/ PMP75. Housing F15 bei B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

  • 20
    • Nr 20 Order code 52020432

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 52020433

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 20 Order code 52028310

      不锈钢盖

      Material: 316L O-ring EPDM, FDA individual tested, EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 20 Order code 71002774

      不锈钢盖

      Material: 316L flat gasket VMQ, centering ring, screw not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71002810

      带视窗盖

      Material: 316L Sight glass: mineral glass flat gasket VMQ, centering ring, screw approval 2,3,4,8,Q,W,7,8 Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71002811

      带视窗盖

      Material: 316L Sight glass: Polycarbonat PC flat gasket VMQ, centering ring, screw approval A,F,R,S,U,1,6 Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71206965

      不锈钢盖

      Material: 316L. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP72/PMP75.

    • Nr 20 Order code 71206968

      不锈钢盖

      Material: 316L. Sight glass: mineral glass,coated. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 20 Order code 71245247

      铝盖

      Material: aluminium, coated. Sight glass: mineral glass, coated. O-ring EPDM, FDA. Not for EEx d/XP. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 20 Order code 71245249

      铝盖

      Material: aluminium. Sight glass mineral glass, coated. O-ring EPDM, FDA. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 20 Order code 71245250

      盖

      Material: 316L. Sight glass: mineral glass, coated. O-ring EPDM, FDA. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 21
    • Order code 71290825

      接地端子

      Consists of: spring washer, screw, earth handle, clamp. Usage: housing T14/T15/T17, FMB70, FMD71/FMD72/ FMD77/FMD78, PMC71, PMP71/PMP75, PMD70/PMD75. Housing F30/F31, FMB50/FMB51/FMB52/ FMB53, PMC51, PMD55, PMP51/PMP55.

  • 25
    • Nr 25 Order code 52020432

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 25 Order code 52020433

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 25 Order code 52028310

      不锈钢盖

      Material: 316L O-ring EPDM, FDA individual tested, EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 25 Order code 71002774

      不锈钢盖

      Material: 316L flat gasket VMQ, centering ring, screw not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 25 Order code 71206965

      不锈钢盖

      Material: 316L. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP72/PMP75.

  • 30
    • Nr 30 Order code 52024111

      电子插件

      4-20mA, version 2.0 push buttons on housing Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 30 Order code 52024400

      电子插件

      4-20mA, version 2.0 push button on electronics Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 30 Order code 71026358

      电子插件

      4-20mA, version 2.1 push button on electronics Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 30 Order code 71026359

      电子插件

      4-20mA, version 2.1 push buttons on housing Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 30 Order code 71196092

      电子插件

      4-20mA, version 02.11.zz. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71196093

      电子插件

      4-20mA, version 2.11.zz. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71263933

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on electronics. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71263934

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on housing. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71386147

      电子插件 HART Ex, v2.30

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on electronics. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71386153

      电子插件

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on housing. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Order code 52026762

      升级电子插件 HART Ex, v2.1

      consists of: electronics HART Ex, version 2.0 push button on electronics display housing to convert to electronic version 2.0 Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Order code 52026763

      升级电子插件 HART Ex,ext.push b.,v2.1

      consists of: electronics HART Ex, version 2.0, push buttons external display housing to convert to electronic version 2.0 push button for housing HART version 2 Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

  • 30
    • Nr 30 Order code 71071824

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.00.zz. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071825

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.00.zz. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071826

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 15mA +/- 1mA. Push button on electronics. Verwendung: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071827

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 15mA +/- 1mA. Push button on housing. Verwendung: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214057

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214064

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214066

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 02.00.zz. Current consumption 15mA +/-1mA. Push button on housing. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214069

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 02.00.zz. Current consumption 15mA +/-1mA. Push button on electronics. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214890

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 04.00.zz, FF, DevRev07. Current consumption 15mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for SIL.

    • Nr 30 Order code 71214892

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 04.00.zz, FF, DevRev07. Current consumption 15mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for SIL.

    • Nr 30 Order code 71224775

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.01.zz, PROFIBUS PA, Profile 3.02, DevRev03. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71224776

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.01.zz, PROFIBUS PA, Profile 3.02, DevRev03. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 31
    • Nr 31 Order code 52027785

      存储器

      Setup-/diagnostic software included. Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 35
    • Nr 35 Order code 52020434

      接线端子

      RFI-filter Cerabar S PMC71/PMP71/PMP72/PMP75 Deltabar S PMD70/PMD75/FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 35 Order code 52026605

      接线端子

      RFI-filter PROFIBUS PA Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 35 Order code 52027691

      接线端子

      RFI-filter FOUNDATION Fieldbus Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 35 Order code 71028473

      接线端子

      Overvoltage protection, RFI-filter Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71028475

      接线端子

      Overvoltage protection, RFI-filter PROFIBUS PA Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71028476

      接线端子

      Overvoltage protection, RFI-filter FOUNDATION Fieldbus Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71121574

      接线端子

      RFI filter. PROFIBUS PA. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for TIIS.

    • Nr 35 Order code 71191892

      接线端子

      RFI-filter. Not for TIIS Ex ia, TIIS Ex d. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 35 Order code 71191894

      接线端子

      Overvoltage protection, RFI-filter. Not for TIIS Ex ia, TIIS Ex d. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 40
    • Nr 40 Order code 71002865

      显示模块

      Digital display with snapped bracket languages de, en, fr, es, it, nl for electronics from software version 2.0 languages ja, zh for electronics from software version 2.0.1 Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Order code 71102216

      安装组件

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code 71304770

      安装组件

      Material: 316L. Usage: mounting kit to attach the own mounting bracket / weather protection cover, FMB70, PMC71, PMP71/PMP75.

    • Order code 71043886

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043888

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043889

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71070738

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 52023572

      密封垫圈

      Process gasket for universal process adapter Deltapilot S DB50L/DB50S Levelflex M FMP41C

    • Order code 52002041

      焊座

      Flush mount process connection FTL50H/FTL51H "PE2", PMC45, PMP46 "KL", PMC71, PMP75 "TK", FMB70 "TK", FMD78 "TK" Material: 316L Seal: PTFE flat

    • Order code 214880-0002

      Weld-in adapter UNI D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 52006262

      焊座, UNI D85

      Flush mount process connection FMI51/FMI52, FTI51/FTI52 "UPJ", FMP41C "UPK"/"UQK", PMC45 "HA", FMB70 "00" Universal adapter Core hole: 85mm Material: 316L

    • Order code 52010173

      焊座, UNI D85，3.1材质认证

      Flush mount process connection. Core hole: 85mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FMB50, FMB70, FMD71/FMD78, FMI51/FMI52, FMP52, FTI51/FTI52, PMC51, PMP23, PMP55, PMP75.

    • Order code 52010174

      焊座, UNI D65，3.1材质认证

      Flush mount process connection FMI51/FMI52, FTI51/FTI52 "UPJ", FMP41C "UPK"/"UQK", PMC45 "HA", FMB70 "00" Universal adapter Core hole: 65mm Material: 316L Inspection cert. EN10204-3.1 material

    • Order code 52024469

      过程连接件|Weld-in G1-1/2, 316L

      mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Correct installation only with dummy

    • Order code 52024470

      焊座

      mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Inspection cert. EN10204-3.1 material

    • Order code 71377369

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMD71/FMD72, PMC71, PMP55, PMP71/75.

    • Order code 71377370

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377371

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377379

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMD71/FMD72, PMC71, PMP55, PMP71/75.

    • Order code 71377380

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71377383

      冲洗环

      Consists of: 2x flushing ring connection. Thread ASME FNPT 1/2. Usage: FMB70, FMD71/FMD72/FMD77/FMD78, PMC71, PMP55, PMP71/75.

    • Order code 71007843

      ToF 适配器 FXA291

      Usage: connection Micropilot M, Micropilot S, Levelflex M, Prosonic M, Tank Side Monitor, Deltabar S, Cerabar S, Gammapilot M, Micropilot I, to Commubox FXA291.

    • Order code 71000221

      适配电缆

      Connection service tool RS232(52013675)/ ToF adapter FXA291 (71007843) > Micropilot M, Prosonic M, Levelflex M, Cerabar S, Deltabar S

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

成功案例

比较产品
本网站使用cookies。如果您继续使用本网站，即表明您同意我们使用cookies。 单击此处，了解更多信息
