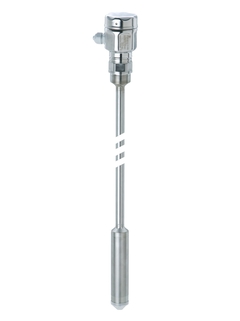

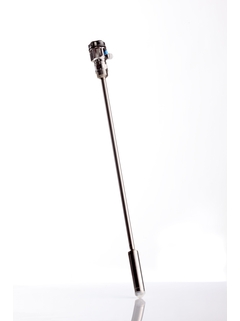

静压式液位计 Deltapilot FMB51

©Endress+Hauser
©Endress+Hauser

压力传感器采用CONTITE元件,用于静压式物位测量

Deltapilot FMB51杆式传感器采用CONTITE测量元件,带固定式过程连接,主要用于环保行业,可测量敞开式或封闭式容器中液体或浆料介质的液位,测量不受泡沫影响。设计符合IEC61508标准,满足SIL2功能安全要求

  • 优势

    • 优良的可重复性和长期的稳定性

    • 量程比:100:1

    • 全密封CONTITE测量元件:抗冷凝,气候防护; 高参考精度:±0.2%,可选:±0.1%; 最小温度影响

    • 点对点模块,测量差压、静压和压力(Deltabar M - Deltapilot M - Cerabar M),如,可更换显示, 通用型电子元件

    • 调试简单,无需操作工具

  • 应用领域

    静压式传感器可用于以下测量:

    • 过程工业、过程测量、制药和食品行业等领域的液体和浆料介质的静压测量

    • 液体液位、体积或质量的测量

特征和规格

返回

Details

  • 测量原理

    静压

  • 特点/应用

    压力变送器,用于压力测量或静压液位测量,带齐平安装的金属CONTITE传感器:
    - 全密封焊接
    - 完全抗冷凝
    - 不受气候条件的影响
    - 长期稳定性
    - 最小温度影响

    杆式仪表

  • 特点

    模块化差压和过程压力变送器(可替换显示单元,通用电子部件)

    诊断功能

    密封焊接的Contite传感器(抗冷凝和气候防护)

  • 电源/通信

    4...20mA HART:
    10.5...45 VDC
    Ex ia:10.5...30 VDC
    PROFIBUS PA /
    FOUNDATION Fieldbus:
    9...32 VDC(非防爆型)

  • 测量精度

    标准:0.2%
    可选:0.1%

  • 长期稳定性

    0.05% URL /年

  • 环境温度

    -40...85 °C
    (-40...185 °F)

  • 过程温度

    -10...85°C
    (14…212°F)

  • 过程压力(绝压)/最大过压限定值

    40 bar (600 psi)

  • 压力测量范围

    100mbar...10bar
    (1.5psi...150psi)

  • 主要接液部件

    Alloy C合金
    316L
    可选AuPt涂层

  • 过程连接

    螺纹:
    G1 1/2、MNPT1 1/2
    法兰:
    DN40...DN100、
    ASME 2"...4"、
    JIS 10K

  • 最大测量距离

    100m (328ft) H2O

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN 10204-3.1
    NACE MR0175

  • 饮用水认证

    KTW、NSF

  • 选项

    分离型外壳
    初始设备设定值
    过电压保护

  • 应用限制

    如果带压,使用两台压力变送器测量差压(电子差压)
    注意表压比:静压力

  • 测量原理

    静压

  • 特点

    压力变送器,用于压力测量或静压液位测量,带齐平安装的金属CONTITE传感器:
    - 全密封焊接
    - 完全抗冷凝
    - 不受气候条件的影响
    - 长期稳定性
    - 最小温度影响

    杆式仪表

  • 供电电压

    4...20 mA HART
    10.5...45 VDC(非防爆):
    Ex ia:10.5...30 VDC
    PROFIBUS PA:
    9...32 VDC(非防爆)
    FOUNDATION Fieldbus:
    9...32 VDC(非防爆)

  • 参考测量精度

    标准:0.2%
    可选:0.1%

  • 长期稳定性

    0.05% URL /年

  • 过程温度

    -10...85°C
    (14…212°F)

  • 环境温度

    -40...85 °C
    (-40...185 °F)

  • 传感器

    100 mbar...10 bar
    (1.5 psi...150 psi)

  • 最小可标定量程

    10 mbar (1.45 psi)

  • 抗真空压力

    0 mbar绝压

  • 最大量程比

    100:1

  • 最大过压限定值

    40 bar (600 psi)

  • 过程连接

    螺纹:
    G1 1/2、MNPT1 1/2
    法兰:
    DN40...DN100、
    ASME 2"...4"、
    JIS 10K

  • 过程膜片的材质

    316L、AlloyC合金、
    铑>金

  • 垫圈材质

    Viton、EPDM、Kalrez、无

  • 填充液

    惰性油、
    合成油

  • 外壳材质

    316L、铸铝

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN10204-3.1
    NACE MR0175

  • 饮用水认证

    KTW/ NSF

  • 特点

    模块化差压和过程压力变送器(可替换显示单元,通用电子部件)

    诊断功能

    密封焊接的Contite传感器(抗冷凝和气候防护)

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 19
    • Nr 19 Order code 71111056

      外壳

      Consists of: vent screw 304. Pressure compensation filter. O-ring EPDM, protection lid. Usage: housing T14, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Housing F31, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55. Housing F15 w/o B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

    • Nr 19 Order code 71219639

      外壳

      Consists of: vent screw 304. Pressure compensation filter. O-ring VMQ, protection lid. Usage: housing T17, FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/ PMP75. Housing F15 bei B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

  • 20
    • Nr 20 Order code 52027000

      不锈钢盖

      Gasket 67,5x2,9x1,5 VMQ/PTFE Stainless steel housing F15

    • Nr 20 Order code 52027002

      视窗盖带密封垫

      Sight glass: glass Gasket 67,5x2,9x1,5 VMQ/PTFE Stainless steel housing F15

    • Nr 20 Order code 52028207

      视窗盖带密封垫

      Sight glass: Polycarbonat PC Gasket 67,5x2,9x1,5 VMQ/PTFE for use in non-hazardous area (EEx ia) Stainless steel housing F15

    • Nr 20 Order code 52028267

      带窗不锈钢盖

      Sight glass: Glass Claw for cover Gasket 67,5x2,9x1,5 VMQ/PTFE for dust Ex version Stainless steel housing F15 Cerabar M

    • Nr 20 Order code 52028268

      不锈钢盖

      Claw for cover Gasket 67,5x2,9x1,5 VMQ/PTFE Stainless steel housing F15 Cerabar M

    • Nr 20 Order code 71092705

      铝盖

      Material: aluminium. O-ring: EPDM. Not for Ex d/XP. Usage: FMB50/FMB51/FMB52/FMB53, FTC260/FTC262, PMC51, PMD55, PMP51/PMP55.

    • Nr 20 Order code 71092707

      铝盖

      Material: aluminium. Sight glass: mineral glass. O-ring: EPDM. Not for Ex d/XP. Usage: FMB50/FMB51/FMB52/FMB53, FTC260/FTC262, PMC51, PMD55, PMP51/PMP55.

  • 21
  • 15
    • Nr 15 Order code 52002449

      缆塞

      consists of: cable gland M20 gasket NBR plug Pg13.5 Cerabar M

    • Nr 15 Order code 52005984

      插接头

      with gasket for Aluminium and stainless steel housing

    • Nr 15 Order code 52020762

      插接头

      Harting plug set Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 71092709

      缆塞

      Consists of: cable gland M20, synthetic. O-ring 17.0x2.0 EPDM + PTFE/FDA. Usage: housing F30/31, FMB50/FMB51/FMB52/FMB53, PMC51, PMD55, PMP51/PMP55.

    • Nr 15 Order code 71092711

      缆塞

      Consists of: cable gland M20, metal. O-ring 17.0x2.0 EPDM + PTFE/FDA. Usage: housing F15/F31, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55, housing F30 PMD55.

    • Nr 15 Order code 71092712

      电缆入口

      Consists of: gasket 18.72x2.51 NBR 70. Adapter M20 > G1/2. Not for Ex d. Usage: FMB50/FMB51/FMB52/FMB53, PMC51, PMD55, PMP51/PMP55.

    • Nr 15 Order code 71120017

      旋塞阀

      Consists of: plug, seal, screw. Usage: FMB50/FMB51/FMB52/FMB53, PMC51, PMD55, PMP51/PMP55.

    • Order code 71290825

      接地端子

      Consists of: spring washer, screw, earth handle, clamp. Usage: housing T14/T15/T17, FMB70, FMD71/FMD72/ FMD77/FMD78, PMC71, PMP71/PMP75, PMD70/PMD75. Housing F30/F31, FMB50/FMB51/FMB52/ FMB53, PMC51, PMD55, PMP51/PMP55.

  • 40
    • Nr 40 Order code 71091670

      显示模块

      Digital display, 3 push buttons, snapped bracket. Usage: FMB50/FMB51/FMB52/FMB53, PMC51, PMD55, PMP51/PMP55.

  • 30
  • 40
    • Order code 71220481

      膜片保护盖 FMB51/52/53, 5 个

      Usage: FMB51/FMB52/FMB53.

    • Order code 71067434

      更改铭牌

      Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.

    • Order code 71102216

      安装附件

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code 52024469

      焊座

      mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Correct installation only with dummy

    • Order code 52024470

      焊座

      mounting process connection G1-1/2 PMC45, PMP48 "AG", PMC71 "1G"/"1H"/"1J", PMP71"1G"/"1H", PMP75 "1G"/"1H"/ "1J", DB51/DB52 "10"/"11", FMB70 "1G" / "1H" Material: 316L Inspection cert. EN10204-3.1 material

    • Order code 52024471

      焊接支架

      to avoid any deformation during welding of nozzle 52024469 / 52024470.

    • Order code 52006263

      M12航空插座

      M12 插头 自连接 M12转成格兰

    • Order code 52010285

      M12航空插头,90度弯头,带5m电缆

      适用于M12插头 带5m电缆 PVC材质,铜镀锡/ 镍锁紧螺母

    • Order code 71114212

      M12航空插头,90度

      自连接 可用于: M12插头

    • Order code 71043886

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043888

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043889

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71070738

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.
