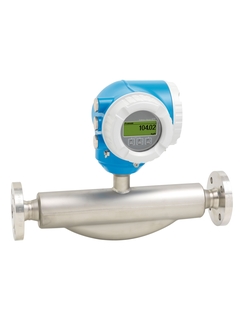

Proline Promass F 300,适用于化工行业

- F
- L
- E
- X

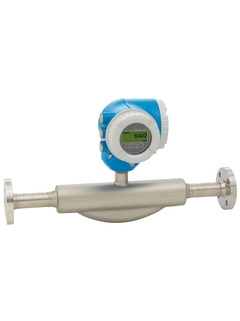

Proline Promass F 300,适用于化工行业(NAMUR)

- F
- L
- E
- X

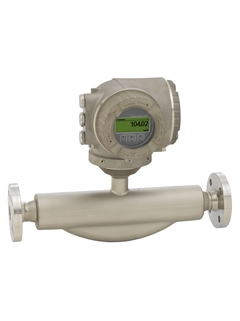

Proline Promass F 300,适用于化工行业

- F
- L
- E
- X

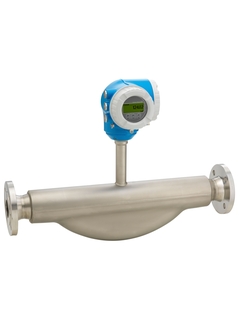

Proline Promass F 300,适用于化工行业

- F
- L
- E
- X

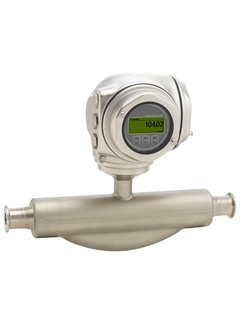

Proline Promass F 300,适用于食品与饮料行业和生命科学行业

- F
- L
- E
- X

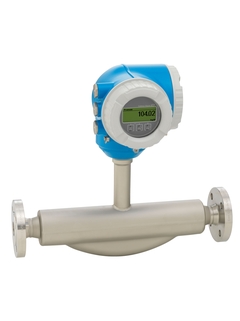

Proline Promass F 300,适用于化工行业
产品规格参数
-
最大测量误差
Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³ -
测量范围
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
-
介质温度范围
Standard: –50 to +150 °C (–58…+302 °F)
Option: –50 to +240 °C (–58…+464 °F)
High temperatur option: –50 to +350 °C (–58…+662 °F)
Option: –196 to +150 °C (–320 to +302 °F) -
最大过程压力
PN 100, Class 600, 63K
-
接液部件材质
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)
应用领域
Promass F是经验证的高精度传感器。不受波动和恶劣环境的影响,应用广泛。与一体式变送器配套使用,Promass F 300操作灵活,系统集成便捷:操作和接线在变送器的同一侧,可选远程显示、可自由配置的I/O功能和多样的系统总线集成方式。Heartbeat Technology 心跳技术能够确保测量的可靠性,并延长校准周期。
测量原理不受流体物理特性的影响(例如:粘度和密度)。
在变化的苛刻工况条件下进行液体和气体测量,具有最高测量性能。
仪表特点
质量流量测量误差:±0.05 % (PremiumCal)
介质温度:-196...350 °C (-320...662 °F)
标称口径:DN 8...250 (3/8...10")
一体式双腔室外壳,最多带3路输入/输出
背光显示、触摸键控制和WLAN访问
提供分离型显示单元
优势
最高过程安全性:不受波动和恶劣工况的影响
较少过程测量点:多参数测量(流量、密度、温度)
节省安装空间:无前/后直管段长度要求
完整查看过程信息和诊断信息:提供多种用户自定义输入/输出组合方式和现场总线
降低复杂性和多样性:用户自定义输入/输出功能
自带验证功能:内置Heartbeat Technology (心跳技术)
演示视频
-
科里奥利力流量测量原理

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
老产品
-
测量原理
科里奥利质量流量
-
产品标题
Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter.
Highest measurement performance for liquids and gases under varying, demanding process conditions. -
传感器特点
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Mass flow: measurement error ±0.05 % (PremiumCal). Medium temperature: –196 to 350 °C (–320 to 662 °F). Nominal diameter: DN 8 to 250 (³⁄₈ to 10"). -
变送器特点
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available. -
公称口径范围
DN 8 to 250 (⅜ to 10")
-
接液部件材质
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304) -
测量变量
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
-
最大测量误差
Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³ -
测量范围
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
-
最大过程压力
PN 100, Class 600, 63K
-
介质温度范围
Standard: –50 to +150 °C (–58…+302 °F)
Option: –50 to +240 °C (–58…+464 °F)
High temperatur option: –50 to +350 °C (–58…+662 °F)
Option: –196 to +150 °C (–320 to +302 °F) -
环境温度范围
Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F) -
传感器外壳材质
Standard: 1.4301 (304)
Option: 1.4404 (316/316L) -
变送器外壳材质
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
-
防护等级
Compact version: IP66/67, type 4X enclosure.
External WLAN antenna: IP67
IP69 -
显示/操作
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available -
输出
3 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output -
输入
Status input
4-20 mA input -
数字通信
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA
-
电源
DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area) -
防爆认证
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex
-
产品安全性
CE, C-tick, EAC marking
-
功能安全性
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
-
计量认证和证书
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
MI-005 (Liquids other than water, Hydrocarbons, LPG, cryogenic liquids)
NTEP (Liquids other than water, LPG, cryogenic liquids)
MC (Liquids other than water, cryogenic liquids)
MI-002, PTB -
船级认证和证书
LR approval, DNV GL approval, ABS approval, BV approval, CCS approval
-
压力认证和证书
PED, CRN, AD 2000
-
材料证书
3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK -
卫生型认证和证书
3-A, EHEDG, cGMP
-
测量原理
科里奥利质量流量
-
产品标题
Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter.
Highest measurement performance for liquids and gases under varying, demanding process conditions. -
传感器特点
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Mass flow: measurement error ±0.05 % (PremiumCal). Medium temperature: –196 to 350 °C (–320 to 662 °F). Nominal diameter: DN 8 to 250 (³⁄₈ to 10"). -
变送器特点
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available. -
公称口径范围
DN 8 to 250 (⅜ to 10")
-
接液部件材质
Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304) -
测量变量
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
-
最大测量误差
Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³ -
测量范围
0 to 2 200 000 kg/h (0 to 80 840 lb/min)
-
最大过程压力
PN 100, Class 600, 63K
-
介质温度范围
Standard: –50 to +150 °C (–58 to +302 °F)
Option: –50 to +240 °C (–58 to +464 °F)
High temperatur option: –50 to +350 °C (–58 to +662 °F)
Option: –196 to +150 °C (–320 to +302 °F) -
环境温度范围
Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F) -
传感器外壳材质
Standard: 1.4301 (304)
Option: 1.4404 (316/316L) -
变送器外壳材质
AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
-
防护等级
Compact version: IP66/67, type 4X enclosure.
External WLAN antenna: IP67
IP69 -
显示/操作
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available -
输出
3 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output -
输入
Status input
4-20 mA input -
数字通信
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA
-
电源
DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area) -
防爆认证
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex
-
测量原理
科里奥利质量流量
-
产品标题
Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter.
Highest measurement performance for liquids and gases under varying, demanding process conditions. -
传感器特点
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Mass flow: measurement error ±0.05 % (PremiumCal). Medium temperature: –196 to 350 °C (–320 to 662 °F). Nominal diameter: DN 8 to 250 (³⁄₈ to 10"). -
变送器特点
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available. -
公称口径范围
DN 8...250 (⅜...10")
-
接液部件材质
测量管:1.4539 (904L)、1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金
连接部分:1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金、1.4301 (F304) -
测量变量
质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度
-
最大测量误差
质量流量(液体):±0.10 %(标准)、0.05 %(可选)
体积流量(液体):±0.10 %
质量流量(气体):±0.35 %
密度(液体):±0.0005 g/cm³ -
测量范围
0...2 200 000 kg/h (0...80 840 lb/min)
-
最大过程压力
PN 100,Cl. 600,63K
-
介质温度范围
标准型:–50...+150 °C (–58…+302 °F)
可选:–50...+240 °C (–58…+464 °F)
高温型:–50...+350 °C (–58…+662 °F)
可选:–196...+150 °C (–320...+302 °F) -
环境温度范围
标准:–40...+60 °C (–40...+140 °F)
可选:–50...+60 °C (–58...+140 °F) -
传感器外壳材质
标准:1.4301 (304)
可选:1.4404 (316/316L) -
变送器外壳材质
卫生型变送器设计:铝合金AlSi10Mg涂层;1.4409 (CF3M),类同316L;不锈钢
-
防护等级
一体式仪表:IP66/67, type 4X。
外接WLAN天线:IP67
IP69 -
显示/操作
四行背光显示,触摸键操作(外部操作)
通过现场显示屏和调试软件设置
提供分离型显示单元 -
输出
3路输出:
4...20 mA HART(有源/无源)
4...20 mA WirelessHART
4...20 mA(有源/无源)
脉冲/频率/开关量输出(有源/无源)
双脉冲输出(有源/无源)
继电器输出 -
输入
状态输入
4...20 mA输入 -
数字通信
HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA
-
电源
24 VDC
100...230 VAC
100...230 VAC / 24 VDC(非危险区) -
防爆认证
ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC
-
产品安全性
CE认证、C-tick认证、EAC认证
-
功能安全性
功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用
-
计量认证和证书
在认证标定装置上执行标定(符合ISO/IEC 17025标准)
Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)
MI-005液体,不同于水(碳水化合物、低温液体)
NTEP(非水液体、LPG、低温液体) -
船级认证和证书
LR approval, DNV GL approval, ABS approval, BV approval, CCS approval
-
压力认证和证书
PED、CRN、AD 2000
-
材料证书
3.1材料证书
NACE MR0175/MR0103,PMI,焊接测试遵循EN ISO、ASME、NORSOK标准 -
卫生型认证和证书
3-A、EHEDG
-
测量原理
科里奥利质量流量
-
产品标题
Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter.
Highest measurement performance for liquids and gases under varying, demanding process conditions. -
传感器特点
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Mass flow: measurement error ±0.05 % (PremiumCal). Medium temperature: –196 to 350 °C (–320 to 662 °F). Nominal diameter: DN 8 to 250 (³⁄₈ to 10"). -
变送器特点
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available. -
公称口径范围
DN 8...250 (⅜...10")
-
接液部件材质
测量管:1.4539 (904L)、1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金
连接部分:1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金、1.4301 (F304) -
测量变量
质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度
-
最大测量误差
质量流量(液体):±0.10 %(标准)、0.05 %(可选)
体积流量(液体):±0.10 %
质量流量(气体):±0.35 %
密度(液体):±0.0005 g/cm³ -
测量范围
0...2 200 000 kg/h (0...80 840 lb/min)
-
最大过程压力
PN 100,Cl. 600,63K
-
介质温度范围
标准型:–50...+150 °C (–58…+302 °F)
可选:–50...+240 °C (–58…+464 °F)
高温型:–50...+350 °C (–58…+662 °F)
可选:–196...+150 °C (–320...+302 °F) -
环境温度范围
标准:–40...+60 °C (–40...+140 °F)
可选:–50...+60 °C (–58...+140 °F) -
传感器外壳材质
标准:1.4301 (304)
可选:1.4404 (316/316L) -
变送器外壳材质
带铝合金AlSi10Mg涂层:1.4409 (CF3M),类似316L;不锈钢或卫生型变送器外壳
-
防护等级
一体式仪表:IP66/67, type 4X
外接WLAN天线:IP67
IP69 -
显示/操作
四行背光显示,触摸键操作(外部操作)
通过现场显示屏和调试软件设置
提供分离型显示单元 -
输出
3路输出:
4...20 mA HART(有源/无源)
4...20 mA WirelessHART
4...20 mA(有源/无源)
脉冲/频率/开关量输出(有源/无源)
双脉冲输出(有源/无源)
继电器输出 -
输入
状态输入
4...20 mA输入 -
数字通信
HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA
-
电源
24 VDC
100...230 VAC
100...230 VAC / 24 VDC(非危险区) -
防爆认证
ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC
-
产品安全性
CE认证、C-tick认证、EAC认证
-
功能安全性
功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用
-
计量认证和证书
在认证标定装置上执行标定(符合ISO/IEC 17025标准)
Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)
MI-005非水液体(碳水化合物、低温液体)
NTEP(非水液体、LPG、低温液体) -
船级认证和证书
LR approval, DNV GL approval, ABS approval, BV approval, CCS approval
-
压力认证和证书
PED、CRN、AD 2000
-
材料证书
3.1材料证书
NACE MR0175/MR0103,PMI,焊接测试遵循EN ISO、ASME、NORSOK标准 -
卫生型认证和证书
3-A、EHEDG
-
测量原理
科里奥利质量流量
-
产品标题
Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter.
Highest measurement performance for liquids and gases under varying, demanding process conditions. -
传感器特点
Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Mass flow: measurement error ±0.05 % (PremiumCal). Medium temperature: –196 to 350 °C (–320 to 662 °F). Nominal diameter: DN 8 to 250 (³⁄₈ to 10"). -
变送器特点
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available. -
公称口径范围
DN 8...250 (⅜...10")
-
接液部件材质
测量管:1.4539 (904L)、1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金
连接部分:1.4404 (316/316L)、Alloy C22 2.4602 (UNS N06022)合金、1.4301 (F304) -
测量变量
质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度
-
最大测量误差
质量流量(液体):±0.10 %(标准)、0.05 %(可选)
体积流量(液体):±0.10 %
质量流量(气体):±0.35 %
密度(液体):±0.0005 g/cm³ -
测量范围
0...2 200 000 kg/h (0...80 840 lb/min)
-
最大过程压力
PN 100,Cl. 600,63K
-
介质温度范围
标准型:–50...+150 °C (–58…+302 °F)
可选:–50...+240 °C (–58…+464 °F)
高温型:–50...+350 °C (–58…+662 °F)
可选:–196...+150 °C (–320...+302 °F) -
环境温度范围
标准:–40...+60 °C (–40...+140 °F)
可选:–50...+60 °C (–58...+140 °F) -
传感器外壳材质
标准:1.4301 (304)
可选:1.4404 (316/316L) -
变送器外壳材质
带铝合金AlSi10Mg涂层:1.4409 (CF3M),类似316L;不锈钢变送器外壳
-
防护等级
一体式仪表:IP66/67, type 4X
外接WLAN天线:IP67
IP69 -
显示/操作
四行背光显示,触摸键操作(外部操作)
通过现场显示屏和调试软件设置
提供分离型显示单元 -
输出
3路输出:
4...20 mA HART(有源/无源)
4...20 mA WirelessHART
4...20 mA(有源/无源)
脉冲/频率/开关量输出(有源/无源)
双脉冲输出(有源/无源)
继电器输出 -
输入
状态输入
4...20 mA输入 -
数字通信
HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA
-
电源
24 VDC
100...230 VAC
100...230 VAC / 24 VDC(非危险区) -
防爆认证
ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC
-
产品安全性
CE认证、C-tick认证、EAC认证
-
功能安全性
功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用
-
计量认证和证书
在认证标定装置上执行标定(符合ISO/IEC 17025标准)
Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)
MI-005非水液体(碳水化合物、低温液体)
NTEP(非水液体、LPG、低温液体) -
船级认证和证书
LR approval, DNV GL approval, ABS approval, BV approval, CCS approval
-
压力认证和证书
PED、CRN、AD 2000
-
材料证书
3.1材料证书
NACE MR0175/MR0103,PMI,焊接测试遵循EN ISO、ASME、NORSOK标准 -
卫生型认证和证书
3-A、EHEDG
配置产品,下载CAD设计图
从我们建议的选项中选择
-
-- selected coding-- selected label99.999,00<%label%>
-
如需查看其他非推荐选项,请使用 Configurator进行完整产品选型
-
-- selected coding-- selected label99.999,00<%feature%>
-
<%label%>99.999,00
-
如需查看其他非推荐选项,请使用 Configurator进行完整产品选型
-
Process Connection
-
<%label%>99.999,00
-
<%label%>99.999,00
-
-
<%feature%><%coding%><%label%>
-
单价
-
<%range%><%price%>
-
- 可选附加功能
个性化配置
常用搭配产品
附件
关联产品
