Proline Promag P 300
电磁流量计

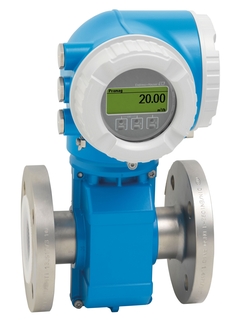

产品图片：电磁流量计 Proline Promag P 300 / 5P3B，适用于各类过程应用 ©Endress+Hauser

Proline Promag P 300，适用于各类过程应用

电磁流量测量原理

心跳技术简要说明(3'14")

  • 产品图片：电磁流量计 Proline Promag P 300 / 5P3B，适用于各类过程应用

耐高温流量计，搭配操作简便的一体式变送器，适用于各类过程应用。

Promag P传感器专用于化工及过程应用中的高温、腐蚀性介质测量。与一体式变送器配套使用，Promag P 300操作灵活，系统集成便捷：在仪表的同一侧接线、远程显示、改进的连接方式。Heartbeat Technology (心跳技术)确保始终合规，保证过程安全。

快速选择

从我们建议的选项中选择
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

5P3B
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • 可选附加功能
请使用Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

附加组件

  • 优势

    • 应用广泛：多种焊接部件材料可选

    • 节能的流量测量：无节流部件，确保无压损

    • 免维护：无可移动部件

    • 完整查看过程信息和诊断信息：提供多种用户自定义输入/输出组合方式和现场总线

    • 降低复杂性和多样性：用户自定义输入/输出功能

    • 自带验证功能：内置Heartbeat Technology (心跳技术)

  • 应用领域

    • 双向测量原理不受压力、密度、温度和粘度的影响

    • 用于化工及过程应用中的高温、腐蚀性介质测量的专用流量计

    仪表特点

    • 标称口径：max. DN 600 (24")

    • 所有通用防爆(Ex)认证

    • PTFE或PFA内衬

    • 一体式双腔室外壳，最多带3路输入/输出

    • 背光显示、触摸键控制和WLAN访问

    • 提供分离型显示单元

特征和规格

返回

Details

  • 测量原理

    电磁

  • 产品标题

    最高耐温等级的流量计，搭配操作简便的一体式变送器。用于化工及过程应用中的高温、腐蚀性介质测量的专用流量计。

  • 传感器特点

    应用广泛：提供多种接液部件材料。节能的流量测量：管道内无其他装置，无压损。免维护：无移动部件。最大公称口径： DN 600 (24")。所有通用防爆认证。

  • 变送器特点

    提供完整的过程信息和诊断信息：多种用户自行组合的I/O接口和现场总线。降低复杂性和多样性：允许用户自定义输入/输出功能。自校验：Heartbeat Technology（心跳技术）。紧凑的双腔室外壳，最多允许连接3路输入/输出。背光显示，触摸键操作和WLAN访问。

  • 公称口径范围

    DN 15...600 (½...24")

  • 接液部件材质

    内衬：PFA、PTFE
    电极：1.4435 (316L)、Alloy C22, 2.4602 (UNS N06022)合金、钽、铂、
    钛、双相钢Duplex 1.4462 (UNS S31803)

  • 测量变量

    体积流量、电导率、质量流量

  • 最大测量误差

    体积流量（标准）：±0.5 % o.r. ± 1 mm/s (0.04 in/s)
    体积流量（可选）：±0.2 % o.r. ± 2 mm/s (0.08 in/s)

  • 测量范围

    4 dm³...9600 m³/h (1...44 000 gal/min)

  • 最大过程压力

    PN 40、Cl. 300、20K

  • 介质温度范围

    PFA内衬：–20...+150 °C (–4...+302 °F)
    高温型PFA内衬：–20...+180 °C (–4...+356 °F)
    PTFE内衬：–40...+130 °C (–40...+266 °F)

  • 环境温度范围

    碳钢法兰：–10...+60 °C (+14...+140 °F)
    不锈钢法兰：–40...+60 °C (–40...+140 °F)

  • 传感器外壳材质

    DN 15...300 (½...12")：铝合金AlSi10Mg涂层
    DN 350...600 (14...24")：碳钢，带保护漆涂层

  • 变送器外壳材质

    带铝合金AlSi10Mg涂层：1.4409 (CF3M)，类似316L；不锈钢或卫生型变送器外壳

  • 防护等级

    标准：IP66/67，Type 4X
    可选：IP69

  • 显示/操作

    四行背光显示，触摸键操作（外部操作）
    通过现场显示屏和调试软件设置
    提供分离型显示单元

  • 输出

    3路输出：
    4...20 mA HART（有源/无源）
    4...20 mA WirelessHART
    4...20 mA（有源/无源）
    脉冲/频率/开关量输出（有源/无源）
    双脉冲输出（有源/无源）
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC（非危险区）

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准，允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定（符合ISO/IEC 17025标准）
    Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, LH/BV approval

  • 压力认证和证书

    PED、CRN

  • 材料证书

    3.1材料证书

  • 卫生型认证和证书

    ACS、NSF 61

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 31
  • 39
    • Nr 39 Order code 71185788

      T-DAT模块

      Usage: Promag/Promass 100/300/500, 500 digital, Prosonic Flow E 100, Prosonic Flow 300, 500 digital, Promag 400(C). (C) = generation index C.

  • 33
  • 37
    • Nr 37 Order code 71323010

      模块盒, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 34
  • 37
    • Nr 37 Order code 71323011

      模块盒, 300, Non-haz

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 46
  • 35
  • 45
    • Nr 45 Order code 71323073

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

  • 50
  • 45
    • Nr 45 Order code 71323074

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option B = EtherNet, PROFINET. Consists of: 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71327818

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323075

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323076

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

    • Nr 45 Order code 71327819

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

  • 49
    • Nr 49 Order code 71323079

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment with remote display DKX001. Consists of: 1x connection terminal 4-Pol.

  • 20
    • Nr 20 Order code 71323016

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

  • 21
    • Nr 21 Order code 71323018

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 HNBR.

  • 20
    • Nr 20 Order code 71323020

      铝盖组件 玻璃视窗

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

  • 21
    • Nr 21 Order code 71323022

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 HNBR.

  • 70
    • Nr 70 Order code 71323026

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

  • 22
    • Nr 22 Order code 71323028

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 HNBR.

  • 74
    • Nr 74 Order code 71323030

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Consists of: 10x O-Ring 117,1x3,53 HNBR.

  • 22
    • Nr 22 Order code 71323032

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

  • 74
    • Nr 74 Order code 71323036

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

  • 28
  • 76
  • 71
    • Nr 71 Order code 71323069

      界面密封圈组件

      Usage: transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface, 5x O-Ring 29,87x1,78 HNBR for for sensor plug.

  • 11
    • Nr 11 Order code 71368488

      保护壳

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71368489

      保护壳

      Usage: transmitter housing Alu/hygienic, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323081

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 87
    • Nr 87 Order code 71343505

      防护外壳组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing. Consists of: weather protection cover 4404, installation material.
