Proline Promag L400 电磁流量计

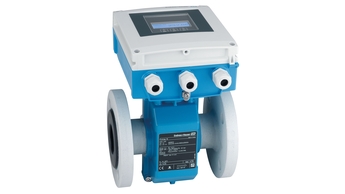

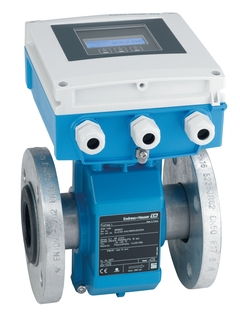

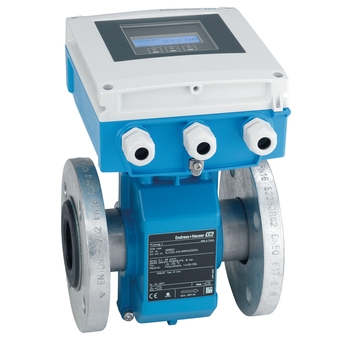

产品图片：电磁流量计 Proline Promag L 400 / 5L4C，适用于水和污水行业 — Proline Promag L 400，适用于水和污水行业

电磁流量测量原理

Proline 网络服务器介绍

搭配轻型传感器的流量计，适用于水和污水行业。

轻型 Promag L 适用于水和污水行业。其独有的松套法兰过程连接，有利于实现灵活、简便的安装。Promag D 400 配备了功能强大的变送器，适用于水和污水行业，可大幅缩减时间及成本。此外，心跳技术可始终确保合规性与过程安全性。

添加到购物车
配置
选型
登录和配置后的定价

比较

附加组件

Memograph M RSG45

保存、显示、分析和通信
更多信息
比较
RMA42
过程变送器，带控制单元

通用变送器，回路供电，一台设备内含隔离栅和限位开关！
更多信息
比较

优势
降低了安装成本 - 松套法兰设计，安装灵活（DN < 350/14")
节能型流量测量 - 横截面与管道一致，无压损
免维护 - 无活动件
操作安全 - 背光显示、触摸控制，无需开启设备
无需增加硬件和软件即可提供本地化操作，节约时间 - 集成网络服务器
集成验证 - Heartbeat Technology

应用领域
双向测量原理不受压力、密度、温度和粘度的限制

适用于水和污水行业

仪表特性

自重减轻可达 30%

公称直径：DN 25 ~ 2400 (1 ~ 90")

安装开档尺寸可缩短至 DVGW/ISO

变送器外壳采用耐用型聚碳酸酯或铝材

WLAN 连接

内置数据记录仪：测量值监测

特征和规格

测量原理

电磁
产品标题

先进的变送器搭配轻质量传感器使用，适用于水和污水应用。完全适用于水和污水行业中的标准应用。
传感器特点

降低了安装成本-独一无二的松套法兰设计，安装灵活（DN<350/14")。节能的流量测量：管道内无其他装置，无压损。免维护：无移动部件。传感器重量最多可以减轻30 %。公称口径：DN 25...2400 (1...90")。
变送器特点

操作安全：配备带触摸键控制的背光显示单元，无需打开仪表操作。省时的现场操作，无需安装其他软件和硬件：内置网页服务器。自校验：Heartbeat Technology（心跳技术）。变送器采用经久耐用的聚碳酸酯或铝外壳。允许WLAN访问。
公称口径范围

松套法兰；松套法兰，成型钢板：DN 25...300 (1...12")
固定法兰：DN 350...2400 (14...90")
接液部件材质

内衬：聚酰胺、硬橡胶
电极：1.4435 (316L)、Alloy C22 2.4602 (UNS N06022)合金
测量变量

体积流量、电导率、质量流量
最大测量误差

体积流量（标准）：±0.5 % o.r. ± 1 mm/s (0.04 in/s)
体积流量（可选）：±0.2 % o.r. ± 2 mm/s (0.08 in/s)
测量范围

9 dm³/min...162 000 m³/h (2.5 gal/min...1030 Mgal/d)
最大过程压力

PN 16, Cl. 150
介质温度范围

硬橡胶内衬：0...+80 °C (+32...+176 °F)
聚氨酯内衬：–20...+50 °C (–4...+122 °F)
PTFE内衬：–20...+90 °C (–4...+194 °F)
环境温度范围

碳钢法兰：–10...+60 °C (+14...+140 °F)
不锈钢法兰：–40...+60 °C (–40...+140 °F)
传感器外壳材质

DN 25...300 (1...12")：铝合金AlSi10Mg，带涂层
DN 350...2400 (14...90")：碳钢，带保护漆涂层
传感器接线盒：铝合金AlSi10Mg，带涂层
变送器外壳材质

聚碳酸酯；铝合金AlSi10Mg涂层
防护等级

一体式仪表：IP6667，type 4X
分体式传感器（标准）：IP6667，type 4X
分体式传感器（可选）：IP68，type 6P
分体式变送器：IP66/67，type 4X
显示/操作

四行背光显示，触摸键操作（外部操作）
通过现场显示单元和调试软件设置
输出

3路输出：
0...20 mA / 4...20 mA HART（有源）
脉冲/频率/开关量输出（无源）
脉冲/频率输出（无源）
开关量输出（无源）
输入

状态输入
数字通信

HART、PROFIBUS DP、EtherNet/IP、Modbus RS485
电源

100...240 VAC / 24 VAC/DC
防爆认证

cCSAus
计量认证和证书

在认证标定装置上标定（符合ISO/IEC 17025标准）、NAMUR
卫生型认证和证书

饮用水认证：ACS、KTW/W270、NSF 61、WRAS BS 6920
