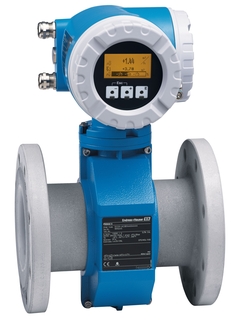

Proline Promag 55S 适用于高固体含量、高磨损测量应用
电磁流量测量原理
Promag S 专用于非均匀、粗糙和腐蚀性流体等介质。传感器采用了针对行业优化的内衬，坚固耐用，可适用于最具挑战性的环境和计量工作中，如污水处理、纸浆与造纸、基础原材料与冶金等行业。Promag 55S 配备了高性能变送器，不仅能够可靠地测量流量，还可以在低维护要求下计算固体含量。
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
体积流量（标准）：±0.5 % o.r. ± 1 mm/s (0.04 in/s)
体积流量（可选）：±0.2 % o.r. ± 2 mm/s (0.08 in/s)
0.06 dm3...600 m3/h (0.015...2650 gal/min)
0...+60 °C (+32...+140 °F)、 0...+80 °C (+32...+176 °F)、–20...+50 °C (–4...+122 °F)、–20...+180 °C (–4...+356 °F)、–20...+150 °C (–4...+266 °F)
PN 40、Cl. 300、JIS 20 K
内衬：聚酰胺、硬橡胶、PFA、PTFE、天然橡胶
电极：1.4435/304L、Alloy C-22合金、钽、铂、Duplex 1.4465、碳化钨、钛
Loading alternative products
独特的信号处理，超群的信号稳定性
最高安全系数-行业优化的测量电极和内衬
节能型流量测量-横截面与管道一致，无压损
性能最佳-针对要求苛刻的流体，内置固体含量检测
最高安全水平-集成电极清洗
数据自动恢复，易于维护
免维护 - 无可动部件
双向测量原理不受压力、密度、温度和粘度的限制
理想应用于高固体含量和高磨损性介质测量
仪表特性
加强型线圈系统
可选内衬范围广
固体含量可达重量的 80 %
四行背光显示，触摸控制
两路开关量输出
HART, PROFIBUS PA/DP, FOUNDATION Fieldbus
