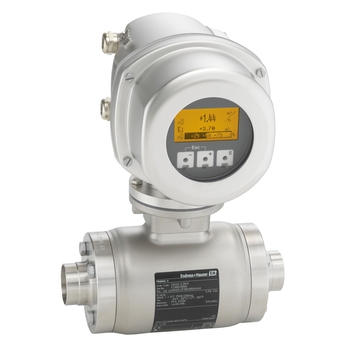

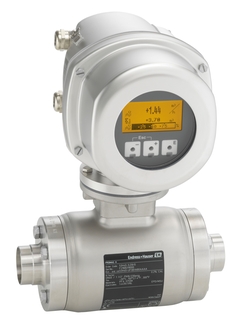

Promag 53H

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

测量原理

电磁
产品标题

该流量计采用灵活系统集成，能测量极小流量，适合苛刻的卫生行业应用。
传感器特点

安装灵活：配备多种卫生型过程连接。节能的流量测量：管道内无其他装置，无压损。免维护：无移动部件。PFA内衬。不锈钢传感器外壳（3A、EHEDG）。
变送器特点

高品质：加料&灌装软件、密度、电极清洗和高级诊断功能。计算简便：双向累积。自动恢复数据，用于服务。四行背光显示，触摸键控制。提供一体式或分体式仪表。
公称口径范围

DN 2...150
1/12"...6"
接液部件材质

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
测量变量

Volume flow
最大测量误差

±0.2%
测量范围

0...600 m3/h
最大过程压力

PN16...40
介质温度范围

-20...+150°C
(-4...+302°F)
环境温度范围

-20...+60°C
-40...+60°C（可选）
防护等级

IP 67 (NEMA 4x)
显示/操作

四行背光显示/触摸键控制
输出

4...20 mA
脉冲/频率（有源/无源）
继电器
状态
输入

状态
电流输入
数字通信

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus
防爆认证

ATEX
FM
CSA
TIIS
产品安全性

CE认证、C-tick认证、EAC认证
卫生型认证和证书

3-A、EHEDG

显示更多
显示更少
