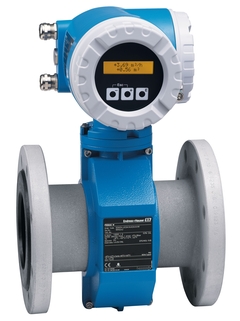

Promag 50W

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

测量原理

电磁
产品标题

The sensor with degree of protection IP68 (Type 6P enclosure) and a modular electronic concept.
The specialist in the water and wastewater industry for the most demanding applications.
传感器特点

Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
International drinking water approvals. Degree of protection IP68 (Type 6P enclosure).
变送器特点

Quality – designed for custody transfer; featuring worldwide recognized metrological approvals. Safe operation – display provides easily readable process information. Fully industry-compliant – IEC/EN/NAMUR.
2-line backlit display with push buttons. Device as compact or remote version. HART, PROFIBUS PA/DP.
公称口径范围

DN 25...2000
1"...78"
最大测量误差

±0.5%
±0.2%（可选）
测量范围

0...110,000 m3/h
最大过程压力

PN6...40
Cl 150...300
JIS 10...20K
AWWA Class D
AS 2129 Table E
AS 4087 PN16
介质温度范围

-20...+80°C
(-4...+176°F)
环境温度范围

-20...+60°C
-40...+60°C（可选）
防护等级

IP 67 (NEMA 4x)
IP 68 (Nema 6P)
显示/操作

两行背光显示
按键操作
输出

4...20 mA
脉冲/频率
状态
输入

状态
数字通信

HART
PROFIBUS PA/DP
防爆认证

ATEX、IECEx、NEPSI、FM、CSA
产品安全性

CE认证、C-tick认证、EAC认证
压力认证和证书

PED、CRN
卫生型认证和证书

饮用水认证：ACS、NSF 61、KTW/W270、WRAS BS6920

显示更多
显示更少

文档/手册/软件

下载类型

过滤

Proline Promag 50W, 53W Technical Information
Electromagnetic flowmeter for measuring the flow of conductive fluids in
water or
wastewater applications

技术信息(TI)
Proline Promag 50 HART Operating Instructions
Electromagnetic flowmeter

操作手册（BA）
Proline Promag 53 HART Operating Instructions
Electromagnetic flowmeter

操作手册（BA）
Proline Promag 50 PROFIBUS DP/PA Description of Device Functions
Description of the device functions (options and inputs). Additional
documentation for Operating Instructions PROline Promag 50 PROFIBUS-PA.

操作手册（BA）
Proline Promag 50
Description of the device functions (options and inputs). Additional
documentation for Operating Instructions Proline Promag 50.

操作手册（BA）
Fieldgate Data Access Operating Instructions
Software for acquiring Fieldgate data
Software Version 2.06.xx

操作手册（BA）
Proline Promag 50 PROFIBUS DP/PA Operating Instructions
Electromagnetic flowmeter

操作手册（BA）
Proline Promag 50 简明操作指南
电磁流量计

Short Instruction (KA)

11/17

英语
Proline Promag 50/53 Assembly Instructions/Montageanleitung
Armoured Cable for Promag 50/53 Remote Version
Verstärkte Kabel für Promag 50/53 Getrenntausführung

Short Instruction (KA)

02/01

德语 , 英语
Promag 10 to Proline Promag 50/53 Conversion Instructions
Conversion instructions of Promag 10 W/P/H compact or remote version to
Proline Promag 50/53 W/P/H compact or remote version.

转换指南(UA)
Replacing amplifier board Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, Cubemass DCI 8CN, CNGmass
DCI 8DF, Prosonic Flow 90, 93, t-mass 65

安装指南(EA)
Converting the Transmitter
Promag 50, 53 W, L , Promag W, L 400 Index C

安装指南(EA)
Replacing cover and O-ring Installation Instructions
romag 10, 23, 50, 51, 53, 55, 400, 800, Promass 40, 80, 83, 84, 8ME,
CNGmass 8FF, LPGmass 8FE, Cubemass 8CM, Prosonic Flow 90, 91,9
2, 93, t-mass 65, Prowirl 72, 73

安装指南(EA)
Interface parts Installation Instructions
Promag 10, 23, 50, 51, 53, 55, 400, 800

安装指南(EA)
I/O-board, subprint, screening sheed Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, Cubemass DCI 8CN,
CNGmass DCI 8DF, Prosonic Flow 90, 93, t-mass 65

安装指南(EA)
Replacing transmitter parts Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, Prosonic Flow 90, 93,
t-mass 65, Cubemass 8CN, CNGmass 8DF

安装指南(EA)
Replacing S-DAT Installation Instructions
Promag 23, 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, 8WF, Cubemass
DCI 8CN, CNGmass DCI 8DF, t-mass 65

安装指南(EA)
Conversion transmitter Promag 50, 53 compact version to Promag 55 compact version Installation Instructions
Promag 50, 53, 55

安装指南(EA)
Conversion transmitter Promag 50, 53 remote version to Promag 55 remote version Installation Instructions
Promag 50, 53, 55

安装指南(EA)
Repair kit cover remote version Installation Instructions
Promag 10, 50, 51, 53, 55, 400, 800, Promass 80, 83, 84, CNGmass DCI,
Cubemass DCI, Prosonic Flow 92 F, t-mass 65

安装指南(EA)
Replacing the transmitter Installation Instructions
Promag 10, 23, 50, 53, 55

安装指南(EA)
Replacing power supply for harsh environment (HE) Installation Instructions
Promag 50, 53, 55, Promass 40, 80, 83, 84, CNGmass DCI, Cubemass DCI,
Prosonic Flow 93 P

安装指南(EA)
Replacing amplifier board for harsh environment (HE) Installation Instructions
Promag 50, 53, 55, Promass 80, 83, 84, Cubemass DCI 8CN, CNGmass DCI 8DF

安装指南(EA)
Replacing I/O-board and subprints for harsh environment (HE) Installation Instructions
Promag 50, 53, 55, Promass 80, 83, 84, CNGmass 8DF, Cubemass 8CN

安装指南(EA)
Safety Instructions for Spare Parts Installation Instructions
Flowmeter

安装指南(EA)
Mounting set for wall-mount housing Installation Instructions
Promag 50, 51, 53, 55, Promass 80, 83, 84, Prosonic Flow 90, 93, t-mass
65

安装指南(EA)
Replacing Power supply and display Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, Cubemass DCI 8CN,
CNGmass DCI 8DF, Prosonic Flow 90, 93, t-mass 65

安装指南(EA)
Replacing exchangeable measuring electrodes Installation Instructions
Promag 50, 51, 53, 400 Index C

安装指南(EA)
Change of device roots in CER database Installation Instructions
Promag 30, 33, 10, 50, 53, Promass 60, 63, 80, 83, Prowirl 70, 77, 72,
73

安装指南(EA)
Replacing Sensor parts remote version Installation Instructions
Promag 10, 50, 51, 53, 55, 400, 800, Promass 80, 83, 84, Cubemass 8CN,
CNGmass 8DF

安装指南(EA)
Installing ground disks
Promag 10, 23, 50, 51, 53, 55, 100, 200, 300, 500, 800, 400 Index C

安装指南(EA)
Proline Promag 50 ATEX II3G Ex documentation
Ex-Dokumentationen zu den Betriebsanleitungen Promag 50.
Ex
documentation for the Promag 50 operating instructions.

Documentation Ex relative aux mises en service Promag 50.

Ex 防爆说明(XA)
Proline Promag 50, 53 ATEX: II3G Ex nA nC IIC T5…T1 Gc Ex documentation
Ex-Dokumentationen zu den Betriebsanleitungen Promag 50, 53
Ex documentation for the Promag 50, 53 operating instructions
Documentation Ex relative aux mises en service Promag 50, 53

Ex 防爆说明(XA)
Proline Promag 50, 51 ATEX II2G, II2(1)G, II2D IECEx Zone 1, 21 Ex documentation
Ex-Dokumentationen zu den Betriebsanleitungen Promag 50 und Promag 51.
Ex documentation for the Promag 50 and Promag 51 operating instructions.
Documentation Ex relative aux mises en service Promag 50 et Promag 51.

Ex 防爆说明(XA)
PROline Promag 50 PROFIBUS-PA ATEX II 3G Ex documentation
Ex-Dokumentation zur Betriebsanleitung BA055D, BA056D.

Ex documentation for the operating instruction BA055D, BA056D.

Documentation Ex relative à la mise en service BA055D, BA056D.

Ex 防爆说明(XA)
Proline Promag 50 FM/CSA Div.1 Ex documentation
Ex-Dokumentation zur Betriebsanleitung BA046D, BA049D.

Ex documentation for the operating instruction BA046D, BA049D.

Documentation Ex relative à la mise en service BA046D, BA049D.

Ex 防爆说明(XA)
PROline Promag 50 ATEX II 3G Ex documentation
Ex-Dokumentation zur Betriebsanleitung BA046D, BA049D.

Ex documentation for the operating instruction BA046D, BA049D.

Documentation Ex relative à la mise en service BA046D, BA049D.

Ex 防爆说明(XA)
PROline Promag 50/51 ATEX II 2G Ex documentation
Ex-Dokumentationen zu den Betriebsanleitungen BA046D und BA049D.
Ex documentation for the BA046D and BA049D operating instructions.
Documentation Ex relative aux mises en service
BA046D et BA049D.

Ex 防爆说明(XA)
Proline Promag 50 Division 1 Ex documentation
Ex-Dokumentationen zu den Betriebsanleitungen Promag 50.
Ex
documentation for the Promag 50 operating instructions.

Documentation Ex relative aux mises en service Promag 50.

Ex 防爆说明(XA)
Proline Promag 50, 51 NEPSI Zone 1, Zone 21 Safety Instructions
Documentation for hazardous area

Ex 防爆说明(XA)
Proline Promag 50/53/W/P Sonderdokumentation Special documentation
Zusatzinformationen zu Messgeräten mit Flanschen gemäß der Australischen
Norm AS 4087.
Supplementary information for devices with
flanges according to the Australian AS 4087 standard.

特殊资料(SD)
Information NEMA 6P Special Documentation
Proline Promag W, P

特殊资料(SD)
Proline Promag 10W, 50W, 53W AS 4087 Flanschen/flanges Special Documentation
Zusatzinformationen zu Messgeräten mit Flanschen gemäß der Australischen
Norm AS 4087.
Supplementary information for devices with
flanges according to the Australian AS 4087 standard.

特殊资料(SD)
Proline Promag 50/53/W/P Sonderdokumentation Special documentation
Zusatzinformationen zu Messgeräten mit Flanschen gemäß der Australischen
Norm AS 2129.
Supplementary information for devices with
flanges according to the Australian AS 2129 standard.

特殊资料(SD)
Proline Promag 10/50/51/53W, 55S DN50 (2"): hard rubber lining Special Documentation
Supplementary information for devices with flanges, nominal diameter
DN50 (2") and hard rubber lining

特殊资料(SD)
Information on the Pressure Equipment Directive Proline flowmeters Special Documentation
Proline flowmeters

特殊资料(SD)
Proline Promag 10, 23, 50, 51, 53, 55 Information on the PED Special Documentation
Electromagnetic flowmeter

特殊资料(SD)
Proline Promag 50, 53 Functional safety manual Special Documentation
Electromagnetic flowmeter

特殊资料(SD)
Proline Promag 10W, 50W, 53W, 55S Supplementary information Spezial documentation
Supplementary information for devices with flanges according to the
Australian AS 2129 and AS 4087 standard.

特殊资料(SD)
Change of Directives Special Documentation
Change of Directives

特殊资料(SD)
Proline Promag 10W, 50W, 51W, 53W Pressure rating PN6 for DN & 8805;350 Special Documentation
Supplementary documentation for the Operating Instructions, Technical
Information
Pressure rating PN6 for nominal diameters DN 350
to 1000 (14"to 40")
Zusatzdokumentation zur
Betriebsanleitung, Technischen Information
Druckstufe PN6 für
Nennweiten DN 3501000 (14"40")

特殊资料(SD)
PROline promag 50 (PROFIBUS-PA) Sonderdokumentation / Additional documentation
Zusatzdokumentation zur Software-Version V 1.06.XX (Messverstärker) / V
2.03.00 (Kommunikation);

gültig für: BA056D/06/de/04.01

Additional documentation for software version V 1.06.XX (amplifier) / V
2.03.00 (communication);

valid for: BA056D/06/en/04.01

特殊资料(SD)
Proline Promag 50, 51, 53 Software Version 2.01.00 Special Documentation
Zusatzdokumentation zur Software-Version 2.01.00
Additional
documentation for software version 2.01.00

特殊资料(SD)
Simatic PDM HART Package 1.14.00 Manufacturer Information includes PDM - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.14.00

生产商信息(MI)
Simatic PDM PROFIBUS Package V1.12.00 Manufacturer Information includes PDM - Device List, Release Notes – PROFIBUS
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.12.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.01.02

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 1.06.01

生产商信息(MI)
PRM FOUNDATION fieldbus Package V1.05.00 Manufacturer Information includes PRM - Device List, Release Notes – FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.05.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.01.03

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS DP: 3.06.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.00.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.04.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.01.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS DP: 3.06.10

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS DP: 3.02.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS DP: 3.04.00

生产商信息(MI)
AMS FOUNDATION fieldbus Package V1.06.00 Manufacturer Information includes AMS - Device List, Release Notes – FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.06.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS PA: 3.05.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.03.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS PA: 2.03.01

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.02.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS PA: 3.06.01

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 50)
New software version:
Promag 50 PROFIBUS PA: 3.04.00

生产商信息(MI)
AMS HART Package V1.12.00 Manufacturer Information includes AMS - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.12.00

生产商信息(MI)
PRM HART Package V1.08.00 Manufacturer Information includes PRM - Device List, Release Notes – HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)

New software version: 1.08.00

生产商信息(MI)
Proline Promag 50 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 50 HART: 2.01.01

生产商信息(MI)
perspektiven Umwelt 2014
Kundenmagazin: Wasser ist unser Leben

用户杂志(CM)

01/14

德语
Flow measurement in utilities - for the US Market
Energy management in your hands - customized solutions for
compressed air, gas, steam and water

竞争力手册(CP)

12/10

英语
Modern measurement on filling machines
Filling, cleaning and sterilization

竞争力手册(CP)

07/10

英语
New control and management system with a touch panel for the complete water supply
The municipality of Hasliberg is located in the canton of Bern, approx.
1,100 m above sea level. The drinking water supplied to roughly 1,400
inhabitants derives exclusively from springs. The local administrative
area
of Hasliberg begins behind the Brünigpassand reaches its highest point
at 2,534 m above sea level. The main consumers of the municipality are
tourists. As a result, theirnumber fluctuates heavily depending on the

案例分析(CS)

10/07

英语
Wasserversorgung Gemeinde Baltschieder
Neues Leitsystem für optimale Anlagensicherheit

案例分析(CS)

08/13

德语
Approvisionnement en eau Commune de Baltschieder
Nouvelle Commande automatisée pour une disponibilité optimale de
l'installation

案例分析(CS)

01/14

French
GSD Single, GSD_EH_DP_FL_Promag_0x1546_0x07_0x02_DPLIB, 17.04.2014 (Flow, Promag, 0x1546)
PROFIBUS DP,
PROFIBUS System Version: Any

General Station Description (GSD)

3.06.10

Language neutral
GSD Single, GSD_EH_PA_FL_Promag_0x0x1525_0x08_0x01_PALIB, 22.04.2014 (Flo w, Promag, 0x1525)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

3.06.01

Language neutral
GSD Single, GSD_EH_DP_FL_Promag_0x1546_V03_01_00_DPLIB, 17.04.2014 (Flow, Promag, 0x1546)
PROFIBUS DP,
PROFIBUS System Version: Any

General Station Description (GSD)

3.01.00

Language neutral
GSD Single, GSD_EH_PA_FL_Promag_0x1525_V02_03_00_PALIB, 22.04.2014 (Flow, Promag, 0x1525)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

2.03.00

Language neutral
GSD Single, GSD_EH_PA_FL_Promag_0x1525_V01_00_00_PALIB, 22.04.2014 (Flow, Promag, 0x1525)
PROFIBUS PA,
PROFIBUS System Version: Any

General Station Description (GSD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x06_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x08_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x07_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x03_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x03_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x06_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x09_0x02, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_DP_FL_Promag50_0x1546_0x07_0x01, 16.01.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x01_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x04_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x05_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x08_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_DP_FL_Promag50_0x1546_0x06_0x01, 16.01.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50D_0x0041_0x09_0x02, 06.08.2015 (Flow, Pro mag)
HART,
PDM Version: 6.1, 8.2 SP 1

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x07_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_HART_FL_Promag50_0x0041_0x02_0x01, 12.11.2018 (Flow, Promag, 0x0041)
HART,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_DP_FL_Promag50_0x1546_0x05_0x01, 17.01.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_PA_FL_Promag50_0x1525_0x02_0x01, 17.01.2019 (Flow, Promag, 0x1525)
PROFIBUS PA,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
EDD Single, PDM_DP_FL_Promag50_0x1546_0x04_0x01, 17.01.2019 (Flow, Promag, 0x1546)
PROFIBUS DP,

PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, Promag_50_DP_V3_06_xx, 19.10.2020 (Flow, Promag, 0x1546)
PROFIBUS DP,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.11.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V3_05_xx, 20.10.2020 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V2_00_01___2_02_02, 20.10.2020 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_DP_V3_02_xx, 19.10.2020 (Flow, Promag, 0x1546)
PROFIBUS DP,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V2_03_00, 20.10.2020 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V3_04_xx, 20.10.2020 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_DP_V3_04_xx, 19.10.2020 (Flow, Promag, 0x1546)
PROFIBUS DP,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_DP_V3_01_00, 19.10.2020 (Flow, Promag, 0x1546)
PROFIBUS DP,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V3_06_xx, 20.10.2020 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_PA_V1_00_xx___V1_01_xx, 20.10.2020 (Flow, Promag, 0x1525)
PROFIBUS PA,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.5.153.348

Language neutral
DTM Single, Promag_50_V1_02_0x, 23.10.2020 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V2_03_xx, 23.10.2020 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.07.00

Field Device Manager Version: R430.1

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V2_02_xx, 23.10.2020 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V2_01_xx, 23.10.2020 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V1_06_0x, 23.10.2020 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_HART_FW2_04_zz_Dev_Rev_9, 23.10.2020 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V2_00_00, 23.10.2020 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_50_V1_04_0x, 23.10.2020 (Flow, Promag, 0x0041)
HART,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
Faceplate Library, PRM_HART_Package_Flow_1_08_00, 22.07.2015 (Flow)
HART,

Plant Resource Manager Version: R3.02, R3.05, R3.10, R3.11, R3.12

Faceplate

1.08.00

Language neutral
Product Family: Promag 10, Promag 50, Promag 53, Promag 55, Promag L, Promag W
产品型号: 5W4B-, 53W-, 50W-, 53L-, 50L-, 5L4B-, 10W-, 10L-, 55W-, 55L-

Manufacturer Declaration

英语
Promag 50, Promag 53
产品型号: 50E-, 50H-, 50P-, 50W-, 53E-, 53H-, 53P-, 53W-
一致性声明编号: EC_00286_01.16

EU Declaration

德语 , 英语 , French
Promag 50, Promag 53
产品型号: 53W-, 53P-, 53H-, 50W-, 50P-, 50H-

EU Declaration

德语 , 英语 , French
Promag 50
产品型号: 50W-, 50P-, 50H-
一致性声明编号: ID 54/2

EU Declaration

德语 , 英语 , French
Promag 50, Promag 51, Promag 53
产品型号: 50H-, 50P-, 50W-, 51P-, 53H-, 53P-, 53W-
一致性声明编号: EC_00022_03.15

EU Declaration

德语 , 英语 , French
Promag 10, Promag 50, Promag 51, Promag 53, Promag 55
产品型号: 50W-, 50P-, 50E-, 10W-, 10P-, 10E-, 55S-, 53W-, 53P-, 53E-, 51W-, 51P-
一致性声明编号: EC_00054_04.15

EU Declaration

德语 , 英语 , French
Promag 50, Promag 51, Promag 53
产品型号: 50D-, 50E-, 50H-, 50L-, 50P-, 50W-, 51P-, 51W-, 53E-, 53H-, 53L-, 53P-, 53W-
一致性声明编号: EC_00288_01.16

EU Declaration

德语 , 英语 , French
Promag W, Promag P, Promag L, Promag H, Promag E, Promag D, Promag 55, Promag 53, Promag 51, Promag 50, Promag 10, Dosimag
产品型号: 55S-, 5D4B-, 5D4C-, 5E1B-, 5H-, 5H1B-, 5H3B-, 5H5B-, 5L4B-, 5L4C-, 5P1B-, 5P3B-, 5P5B-, 5W3B-, 5W4D-, 5W5B-, 5W8B-, 5W8C-, DDA-, 55H-, 53W-, 53P-, 53L-, 53H-, 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-, 10W-, 10P-, 10L-, 10H-, 10E-, 10D-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: EAEC N RU D-CH.AD07.B.02228/20

Miscellaneous

俄语
Promag W, Promag P, Promag L, Promag H, Promag E, Promag D, Promag 55, Promag 53, Promag 51, Promag 50, Promag 10, Dosimag, Promass X, Promass S, Promass Q, Promass P, Promass O, Promass I, Promass H, Promass F, Promass E, Promass A, Promass 84, Promass 83, Promass 80, Dosimass OEM
产品型号: 5D4C-, 5P5B-, 5W5B-, 5P3B-, 5H5B-, 5W3B-, 5W4C-, 5L4C-, 53P-, 53W-, 5P1B-, 5H1B-, 5H3B-, 50W-, 50P-, 50H-, 53H-, 5E1B-, 55S-, 5P2B-, 53L-, 55H-, 5H2B-, 50L-, 53E-, 50D-, 50E-, 51W-, 5H-, 5L4B-, 5W4D-, 5W4B-, 5W8B-, 5W8C-, DDA-, 5D4B-, 10D-, 10E-, 10H-, 10P-, 10W-, 10L-, 51P-, 8E5B-, 8F1B-, 8F2B-, 8F3B-, 8H1B-, 8H3B-, 8H5B-, 8I1B-, 8I3B-, 8I5B-, 8O1B-, 8O3B-, 8P1B-, 8P3B-, 8P5B-, 8Q3B-, 8Q5B-, 8S1B-, 8S3B-, 8S5B-, 8X3B-, 8X5B-, 80A-, 80E-, 80F-, 80I-, 80P-, 80S-, 83A-, 83E-, 83F-, 83H-, 83I-, 83P-, 83S-, 83X-, 84F-, 84X-, 8A1B-, 8A3B-, 8A5B-, 8BE-, 8E1B-, 8E2B-, 8E3B-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: EAEC N RU D-CH.AD07.B.02246/20

Miscellaneous

俄语
Promag 50, Promag 51, Promag 53
产品型号: 50H-, 50P-, 50W-, 51P-, 51W-, 53H-, 53P-, 53W-
地区/国家: India
认证机构: CC(O)E
类别: zone 2

Explosion Protection

英语
Promag 50, Promag 51, Promag 53
产品型号: 53H-, 53W-, 53P-, 50H-, 50P-, 50W-, 51P-, 51W-
地区/国家: Europe (ATEX)
认证机构: DEKRA
类别: II 2 D, II 2(1) G
保护: Ex db eb, Ex tb

Explosion Protection

英语
Promag 50, Promag 51, Promag 53, Promag 55
产品型号: 55S-, 55H-, 53W-, 53P-, 53L-, 53H-, 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-
地区/国家: Canada, USA
认证机构: CSA
类别: I/1/A,B,C,D
保护: IS

Explosion Protection

英语
Promag 50, Promag 51, Promag 53, Promag 55
产品型号: 55W-, 55S-, 55P-, 55L-, 55H-, 55E-, 55D-, 53W-, 53S-, 53P-, 53L-, 53H-, 53E-, 53D-, 51W-, 51S-, 51P-, 51L-, 51H-, 51E-, 51D-, 50W-, 50S-, 50P-, 50L-, 50H-, 50E-, 50D-
地区/国家: USA
认证机构: FM
类别: I/2/A,B,C,D/T6...T1, II,III/1/E,F,G/T6...T1
保护: DIP, NI/ANI

Explosion Protection

英语
Promag 50, Promag 51, Promag 53
产品型号: 53H-, 53W-, 53P-, 50H-, 50P-, 50W-, 51H-, 51P-, 51W-
地区/国家: International (IECEx)
认证机构: EXAM (DMT, BVS)
保护: Ex db eb, Ex tb

Explosion Protection

英语
Promag 50, Promag 53
产品型号: 50H-, 53P-, 53W-, 53H-, 50P-, 50W-
地区/国家: South Korea
认证机构: KTL
保护: Ex d e [ia]

Explosion Protection
Promag 50, Promag 51, Promag 53, Promag 55
产品型号: 55S-, 55H-, 53W-, 53P-, 53L-, 53H-, 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-
地区/国家: Canada, USA
认证机构: CSA
类别: I/2/A,B,C,D
保护: NI

Explosion Protection

英语
Promag 50, Promag 53
产品型号: 50H-, 53P-, 53W-, 53H-, 50P-, 50W-
地区/国家: South Korea
认证机构: KTL
保护: Ex d e [ia]

Explosion Protection
Promag 50, Promag 51, Promag 53
产品型号: 53W-, 53P-, 53H-, 50P-, 50W-, 50H-, 50L-, 50D-, 51W-, 51P-
地区/国家: South Korea
认证机构: KTL

Explosion Protection
Promag 50, Promag 53
产品型号: 53W-, 53P-, 53H-, 50P-, 50W-, 50H-
地区/国家: South Korea
认证机构: KTL
保护: Ex d e [ia]

Explosion Protection
Promag 50, Promag 51, Promag 53
产品型号: 50H-, 50P-, 50W-, 51P-, 51W-, 53H-, 53P-, 53W-
地区/国家: South Africa
认证机构: SABS
类别: zone 21, zone 1

Explosion Protection

英语
Promag 50, Promag 53
产品型号: 50H-, 53P-, 53W-, 53H-, 50P-, 50W-
地区/国家: South Korea
认证机构: KTL
保护: Ex d e [ia]

Explosion Protection
Promag 50, Promag 51, Promag 53
产品型号: 53W-, 53P-, 53H-, 51W-, 51P-, 50W-, 50P-, 50H-
地区/国家: Russia (TR CU)
认证机构: EAC
保护: Ex d e [ia], Ex e [ia], Ex tb, Ex d e [ia Ga]

Explosion Protection

俄语
Promag 50, Promag 53, Promag 51
产品型号: 53W-, 53P-, 53H-, 50P-, 50W-, 50H-, 53L-, 50L-, 53E-, 51W-, 51P-, 50E-, 51L-, 51H-, 51E-
地区/国家: USA
认证机构: FM
保护: XP/IS/DIP

Explosion Protection

英语
Promag 50, Promag 51, Promag 53
产品型号: 53W-, 53P-, 53H-, 51W-, 51P-, 50W-, 50P-, 50H-
地区/国家: China
认证机构: NEPSI
类别: zone 1, zone 21
保护: Ex d e ia, Ex d e ia [ia Ga]

Explosion Protection

英语
Promag 50, Promag 51, Promag 53, Promag 55
产品型号: 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 50D-, 55S-, 55H-, 53W-, 53P-, 53L-, 53H-
地区/国家: Canada, USA
认证机构: CSA
类别: I/2/A,B,C,D/T6...T1, I/1/A,B,C,D/T5, II/1/E,F,G/T5
保护: Ex d e [ia Ga] IIC T6...T1 Gb, IS

Explosion Protection

英语
Promag 50, Promag 51, Promag 53
产品型号: 53H-, 53P-, 53W-, 50H-, 50P-, 50W-, 51P-
地区/国家: South Africa
认证机构: SABS
类别: zone 21, zone 1
保护: Ex e [ia], Ex tb, Ex d e [ia Ga]

Explosion Protection

英语
Promag 50, Promag 53, Promag 51, Promag 55
产品型号: 55S-, 53P-, 53W-, 53H-, 50P-, 50W-, 50H-, 55H-, 53L-, 50L-, 50D-, 53E-, 51W-, 51P-, 50E-
地区/国家: Canada, USA
认证机构: CSA
类别: I/2/A,B,C,D T6...T1, I/1/A,B,C,D T5, II/1/E,F,G T5
保护: Ex d e [ia Ga] IIC T6...T1 Gb, NI

Explosion Protection

英语
Promag 10, Promag 50, Promag 51, Promag 53, Promag L, Promag W
产品型号: O5W1B-, 5W8B-, 5W5B-, 5W4C-, 5W4B-, 5L4C-, 53W-, 51W-, 50W-, 10W-
地区/国家: Great Britain
认证机构: WRAS

Hygienic Equipment

英语
Promag 10, Promag 50, Promag 51, Promag 53, Promag D, Promag L, Promag P, Promag W
产品型号: 5L4B-, 5L4C-, 5L8B-, 5P1B-, 5P2B-, 5P3B-, 5P5B-, 5W4B-, 5W4C-, 5W5B-, 5W8B-, O5P1B-, O5P2B-, O5W1B-, 10D-, 10L-, 10P-, 10W-, 50D-, 50L-, 50P-, 50W-, 51P-, 51W-, 53P-, 53W-, 5D4B-, 5D4C-
地区/国家: USA
认证机构: NSF

Hygienic Equipment

英语
Promag 10, Promag W, Promag L, Promag 50, Promag 51, Promag 53, Promag 55, Promag P
产品型号: 5W5B-, 5W3B-, 5W4C-, 5L4C-, 53W-, 50W-, 55S-, 53L-, 50L-, 51W-, 5W4B-, 5L4B-, 5W8C-, 5W8B-, 5L8B-, 10W-, 10L-, O5P2B-, O5P1B-, 5P5B-, 5P3B-, 5P2B-, 5P1B-, 10P-, 50P-, 51P-, 53P-
地区/国家: France
认证机构: ACS

Hygienic Equipment

French
Promag 10, Promag 50, Promag 51, Promag 53, Promag W
产品型号: O5W1B-, 5W8B-, 5W5B-, 5W4C-, 5W4B-, 53W-, 51W-, 50W-, 10W-
地区/国家: USA
认证机构: NSF

Hygienic Equipment

英语
Promag 10, Promag 50, Promag 51, Promag 53, Promag L, Promag W
产品型号: O5W1B-, 5W8B-, 5W5B-, 5W4C-, 5W4B-, 5L4C-, 53W-, 51W-, 50W-, 50L-, 10W-
地区/国家: Germany
认证机构: Hy

Hygienic Equipment

德语
Promag 10, Promag 50, Promag 51, Promag 53, Promag L, Promag W
产品型号: O5W1B-, 5W8B-, 5W5B-, 5W4C-, 5W4B-, 5L4C-, 53W-, 53L-, 51W-, 50W-, 50L-, 10W-, 10L-
地区/国家: Germany
认证机构: Hy

Hygienic Equipment

德语
Promag 10, Promag 50, Promag 51, Promag 53, Promag L, Promag W
产品型号: O5W1B-, 5W8B-, 5W5B-, 5W4C-, 5W4B-, 5L4C-, 53W-, 51W-, 50W-, 10W-
地区/国家: USA
认证机构: NSF

Hygienic Equipment

英语
Promag 10, Promag 50, Promag 51, Promag 53, Promag L, Promag W
产品型号: O5W1B-, 5W8B-, 5W5B-, 5W4C-, 5W4B-, 5L4C-, 53W-, 51W-, 50W-, 10W-
地区/国家: France
认证机构: ACS

Hygienic Equipment

French
Promag 10, Promag 50, Promag 51, Promag 53, Promag 55, Promag L, Promag W
产品型号: 5W8C-, 5W8B-, 5W5B-, 5W4C-, 5W4B-, 5W3B-, 5L8B-, 5L4C-, 5L4B-, 55S-, 53W-, 53L-, 51W-, 50W-, 50L-, 10W-, 10L-
地区/国家: France
认证机构: ACS

Hygienic Equipment

英语
Promag 10, Promag 50, Promag 51, Promag 53, Promag L, Promag W
产品型号: 10W-, 50L-, 50W-, 51W-, 53W-, 5L4C-, 5W4B-, 5W4C-, 5W5B-, 5W8B-, O5W1B-
地区/国家: Germany
认证机构: Hy

Hygienic Equipment

德语
Promag 10, Promag W, Promag 53, Promag 50, Promag 51, Promag L
产品型号: O5W1B-, 53W-, 50W-, 5W4C-, 53L-, 50L-, 5W5B-, 5W4B-, 51W-, 10W-, 10L-, 5W8B-, 5L4B-, 5L4C-, 5L8B-
地区/国家: Great Britain
认证机构: WRAS

Hygienic Equipment

英语
Promag W, Promag 10, Promag 50, Promag 53, Promag L
产品型号: 5W5B-, 5W4C-, 5L4C-, 53W-, 50W-, 53L-, 50L-, 10L-, 10W-, 5W4B-, 5W8B-, O5W1B-
地区/国家: Germany
认证机构: Hy

Hygienic Equipment

德语
Promag 50
产品型号: 50D-, 50P-, 50W-, 50H-, 50L-
地区/国家: International
认证机构: PI, PROFIBUS International
软件版本号: PROFIBUS PA PROFILE 3.0

Fieldbus Conformance

英语
Product Family: Promag 50
产品型号: 50H-, 50P-, 50W-
地区/国家: International
认证机构: PI, PROFIBUS International
软件版本号: PROFILE 3.0

Fieldbus Conformance

英语
Promag 53, Promag 50, Promag 35, Promag 23, Promag 10
产品型号: 50W-, 53P-, 53W-, 53H-, 50P-, 50H-, 10P-, 10H-, 10W-, 23H-, 35S-, 23P-
地区/国家: Poland

Pressure Equipment

英语 , 波兰语
Promag 50, Promag 53
产品型号: 53W-, 50W-
地区/国家: Romania
认证机构: BRML
证书号: RO_BRML_298_02

Metrology
Promag 10, Promag 23, Promag 50, Promag 51, Promag 53, Promag 55
产品型号: 55S-, 55H-, 53W-, 53P-, 53H-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50D-, 23P-, 23H-, 10W-, 10P-, 10L-, 10H-, 10D-
地区/国家: Kazakhstan
认证机构: MEMST
证书号: GOST-12129

Metrology

俄语
Promag 10, Promag 50, Promag 51, Promag 53, Promag 55
产品型号: 53H-, 53W-, 53P-, 50H-, 50P-, 50W-, 55S-, 55H-, 50D-, 53L-, 53E-, 50L-, 51W-, 51P-, 50E-, 10W-, 10P-, 10L-, 10H-, 10E-, 10D-
地区/国家: Russia
认证机构: Rosstandart
证书号: CH.C.29.004.A № 56810_1

Metrology

俄语
Promag W, Promag P, Promag L, Promag H, Promag E, Promag D, Promag 55, Promag 53, Promag 51, Promag 50, Promag 10
产品型号: 55S-, 5D4B-, 5D4C-, 5E1B-, 5H1B-, 5H2B-, 5H3B-, 5H5B-, 5L4B-, 5L4C-, 5P1B-, 5P2B-, 5P3B-, 5P5B-, 5W4B-, 5W4C-, 5W5B-, 5W8B-, 55H-, 53W-, 53P-, 53L-, 53H-, 53E-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50E-, 10W-, 10P-, 10L-, 10H-, 10E-, 10D-
地区/国家: Uzbekistan
认证机构: UZS
证书号: 02.6720

Metrology

俄语
Promag 50, Promag 53
产品型号: 50H-, 53P-, 53W-, 53H-, 50P-, 50W-
地区/国家: International
认证机构: DNVGL

Marine

英语
Promag 50, Promag 53
产品型号: 53H-, 53W-, 53P-, 50H-, 50P-, 50W-
地区/国家: International
认证机构: RM RS

Marine

俄语
Promag 50, Promag 53
产品型号: 50H-, 53P-, 53W-, 53H-, 50P-, 50W-
地区/国家: International
认证机构: ABS

Marine

英语
Promag 50, Promag 53
产品型号: 50H-, 50P-, 50W-, 53H-, 53P-, 53W-
地区/国家: International
认证机构: RINA

Marine

英语
Promag 50, Promag 53
产品型号: 50H-, 53P-, 53W-, 53H-, 50P-, 50W-
地区/国家: International
认证机构: BV

Marine

英语

显示更多
显示更少

附件/备件

???显示为PDF???

搜索

过滤

Order code

Specification

F
- Nr F Order code 50096745

  电源板 50/51/53 85-260VAC

  Kit power s.b. PMAG5X 85-260VAC

  显示详细信息隐藏详细信息
- Nr F Order code 71039466

  电源板

  HE = harsh environment

  显示详细信息隐藏详细信息
- Nr F Order code 71039466

  电源板

  HE = harsh environment

  显示详细信息隐藏详细信息
- Nr F Order code 50096746

  电源板 PMAG5X 85-260VAC Ex

  显示详细信息隐藏详细信息
- Nr F Order code 71039467

  电源板

  HE = harsh environment

  显示详细信息隐藏详细信息
- Nr F Order code 50096747

  电源板电磁50/51/53 20-55VAC 16-62VDC

  显示详细信息隐藏详细信息
- Nr F Order code 71039468

  电源板

  HE = harsh environment

  显示详细信息隐藏详细信息
- Nr F Order code 50096744

  50/51/53电源板 20-55VAC16-62VDC Ex

  显示详细信息隐藏详细信息
- Nr F Order code 71039469

  电源板

  HE = harsh environment

  显示详细信息隐藏详细信息
7
- Nr 7 Order code 50094002

  10个 800mA 保险丝

  Kit 10 fuses 250 VAC T800 MA

  显示详细信息隐藏详细信息
- Nr 7 Order code 50094003

  10个 2A 保险丝

  Kit Bus/connec.b.5X/40/8X/65 field hous.

  显示详细信息隐藏详细信息
B
- Nr B Order code 50106076

  放大板

  Language: FR, ES, IT, NL, PT, DE, EN

  显示详细信息隐藏详细信息
- Nr B Order code 71039451

  放大板

  Language: FR, ES, IT, NL, PT, DE, EN HE = harsh environment

  显示详细信息隐藏详细信息
- Nr B Order code 50106073

  信号放大模块

  Language: FR, ES, IT, NL, PT, DE, EN

  显示详细信息隐藏详细信息
- Nr B Order code 71039445

  放大板

  Language: FR, ES, IT, NL, PT, DE, EN HE = harsh environment

  显示详细信息隐藏详细信息
- Nr B Order code 50106078

  放大板

  Language: JA, ID, EN

  显示详细信息隐藏详细信息
- Nr B Order code 71039453

  放大板

  Language: JA, ID, EN HE = harsh environment

  显示详细信息隐藏详细信息
- Nr B Order code 50106075

  PMAG 50 放大器备件

  Language: JA, ID, EN

  显示详细信息隐藏详细信息
- Nr B Order code 71039447

  放大板

  Language: JA, ID, EN HE = harsh environment

  显示详细信息隐藏详细信息
- Nr B Order code 50106077

  放大板

  Language: SV, FI, NO, RU, PL, CS, EN

  显示详细信息隐藏详细信息
- Nr B Order code 71039452

  放大板

  Language: SV, FI, NO, RU, PL, CS, EN HE = harsh environment

  显示详细信息隐藏详细信息
- Nr B Order code 50106074

  PMAG 50放大器

  Language: SV, FI, NO, RU, PL, CS, EN

  显示详细信息隐藏详细信息
- Nr B Order code 71039446

  放大板

  Language: SV, FI, NO, RU, PL, CS, EN HE = harsh environment

  显示详细信息隐藏详细信息
C
- Nr C Order code 50098302

  5X/40/8X/93/65 输出模块

  Kit com5X/40/8X/93/65 Iout pass/Freq.Exi

  显示详细信息隐藏详细信息
- Nr C Order code 71039479

  输入输出板

  50/53/8X HE = harsh environment

  显示详细信息隐藏详细信息
- Nr C Order code 50098303

  5X/40/8X/93/65 输出模块

  Kit com5X/40/8X/93/65 Iout act/Freq.Exi

  显示详细信息隐藏详细信息
- Nr C Order code 71039478

  输入输出板

  50/53/8X HE = harsh environment

  显示详细信息隐藏详细信息
- Nr C Order code 50096759

  50/51/40/80/90 防爆输出模块

  Kit com50/51/40/80/90 I+F/stat.in+outEx

  显示详细信息隐藏详细信息
- Nr C Order code 71039473

  输入输出板

  HE = harsh environment

  显示详细信息隐藏详细信息
- Nr C Order code 50096757

  50/40/80/90 防爆型电流/频率输出模块

  Kit com50/40/80/90 curr/Freq.out Ex

  显示详细信息隐藏详细信息
- Nr C Order code 71039474

  输入输出板

  HE = harsh environment

  显示详细信息隐藏详细信息
- Nr C Order code 71066579

  输入输出板 PA Ex

  50/53/55/80/83/93/65

  显示详细信息隐藏详细信息
- Nr C Order code 71066580

  输入输出板

  HE = harsh environment

  显示详细信息隐藏详细信息
- Nr C Order code 50096756

  Pline 50/90 防爆型电流输出模块

  Kit com Pline 50/90 current out Ex

  显示详细信息隐藏详细信息
- Nr C Order code 71039710

  I/O 电流输出

  HE = harsh environment

  显示详细信息隐藏详细信息
- Nr C Order code 71021742

  通讯模块

  显示详细信息隐藏详细信息
- Nr C Order code 71039484

  输入输出板

  HE = harsh environment

  显示详细信息隐藏详细信息
E
- Nr E Order code 50108132

  50/51/80/65 高于1.06.00版本的显示模块

  Kit display mod 50/51/80/65 >=V1.06.00

  显示详细信息隐藏详细信息
J
- Nr J Order code 50108131

  墙装型1.06.00以上显示模块

  Kit disp.50/51/80/90/65 Wall >=V1.06.00

  显示详细信息隐藏详细信息
21
- Nr 21 Order code 50094017

  5X/8X/9X/65 墙装型总线接口

  Kit Bus PCB/PCB carr.5X/8X/9X/65 wall

  显示详细信息隐藏详细信息
G
- Nr G Order code 50094016

  5X/40/8X/65 现场安装型总线接口

  显示详细信息隐藏详细信息
19
- Nr 19 Order code 50094015

  墙装型接线模块

  显示详细信息隐藏详细信息
- Nr 19 Order code 71039496

  墙装式接线板

  HE = harsh environment

  显示详细信息隐藏详细信息
18
- Nr 18 Order code 50094014

  墙装型接线模块

  Kit connec. board In/Output Wall encl

  显示详细信息隐藏详细信息
A
- Nr A Order code 50098018

  传感器部分接线端子

  Usage: 10/50/51/53/55/400/800

  显示详细信息隐藏详细信息
- Nr A Order code 71039497

  传感器部分接线端子

  Usage: 10/50/53/55 HE = harsh environment

  显示详细信息隐藏详细信息
29
- Nr 29 Order code 50108139

  5X/8X/40/65 现场安装型接线排

  Kit Termin.Block field hous. 5X/8X/40/65

  显示详细信息隐藏详细信息
30
- Nr 30 Order code 50108140

  5X/8X/9X/65 墙装型接线排

  Kit Termin.Block Wall encl. 5X/8X/9X/65

  显示详细信息隐藏详细信息
S
- Nr S Order code 71003946

  带设定S-Data模块

  Serialnumber is forceful required

  显示详细信息隐藏详细信息
8
- Nr 8 Order code 50094027

  5X/40/8X/93/65 防爆玻璃盖

  Kit Cover 5X/40/8X/93/65 with window Exd

  显示详细信息隐藏详细信息
- Nr 8 Order code 50094026

  5X/40/8X/65 玻璃盖

  Kit Cover 5X/40/8X/65 with window

  显示详细信息隐藏详细信息
9
- Nr 9 Order code 50094029

  5X/40/8X/93/65 防爆盲盖

  Kit Cover 5X/40/8X/93/65 vers. blind Exd

  显示详细信息隐藏详细信息
- Nr 9 Order code 50094028

  5X/40/8X/65 盲盖

  Kit Cover 5X/40/8X/65 version blind

  显示详细信息隐藏详细信息
10
- Nr 10 Order code 50094040

  隔爆型接线腔盖

  Kit Cover 5X/40/8X/93/65 Conn.termi.Exd

  显示详细信息隐藏详细信息
- Nr 10 Order code 50094039

  增安型接线腔盖

  Kit Cover 5X/40/8X/93/65 Conn.termi.Exe

  显示详细信息隐藏详细信息
- Nr 10 Order code 50094038

  接线腔盖

  10/5X/40/8X/93/65/92F

  显示详细信息隐藏详细信息
26
- Nr 26 Order code 50094038

  接线腔盖

  10/5X/40/8X/93/65/92F

  显示详细信息隐藏详细信息
- Nr 26 Order code 71247838

  维修盖,分离型

  Usage: 10/5X/8X/8DF/8CN/92F/65/400/800 acc. service info SI01351D-1/06 Consists of: Cover Rep.kit for G14, O-Ring 110.00 x 4.50 HNBR, Grease

  显示详细信息隐藏详细信息
15
- Nr 15 Order code 50098036

  10个 M20x1.5 防爆缆塞

  Kit 10 cable glands M20x1.5 Ex

  显示详细信息隐藏详细信息
- Nr 15 Order code 50098036

  10个 M20x1.5 防爆缆塞

  Kit 10 cable glands M20x1.5 Ex

  显示详细信息隐藏详细信息
- Nr 15 Order code 50098036

  10个 M20x1.5 防爆缆塞

  Kit 10 cable glands M20x1.5 Ex

  显示详细信息隐藏详细信息
- Nr 15 Order code 50096840

  10个 M20x1,5 缆塞

  Kit 10 cable glands M20x1,5

  显示详细信息隐藏详细信息
- Nr 15 Order code 50098040

  M20x1.5/PG13,5 转换接头

  显示详细信息隐藏详细信息
- Nr 15 Order code 50098042

  M20x1.5/NPT 1/2" 转接头

  Kit 10 extension M20x1.5/NPT 1/2"

  显示详细信息隐藏详细信息
- Nr 15 Order code 50098042

  M20x1.5/NPT 1/2" 转接头

  Kit 10 extension M20x1.5/NPT 1/2"

  显示详细信息隐藏详细信息
- Nr 15 Order code 50098041

  M20x1.5/G 1/2" 转接头

  Kit 10 extension M20x1.5/G 1/2"

  显示详细信息隐藏详细信息
- Nr 15 Order code 50098041

  M20x1.5/G 1/2" 转接头

  Kit 10 extension M20x1.5/G 1/2"

  显示详细信息隐藏详细信息
- Nr 15 Order code 50098037

  PA 总线缆塞

  Kit Cable gland Profibus PA Kit 10 extension M20x1.5/PG13,5

  显示详细信息隐藏详细信息
- Nr 15 Order code 71029349

  缆塞

  显示详细信息隐藏详细信息
- Nr 15 Order code 71029350

  缆塞

  显示详细信息隐藏详细信息
- Nr 15 Order code 71029351

  缆塞

  显示详细信息隐藏详细信息
- Nr 15 Order code 71029352

  缆塞

  显示详细信息隐藏详细信息
12
- Nr 12 Order code 50096839

  电路板支架（现场/不锈钢外壳)

  Kit Circuit board cpl field/SS-housing

  显示详细信息隐藏详细信息
14
- Nr 14 Order code 50099102

  铸铝/不锈钢外壳套管

  显示详细信息隐藏详细信息
13
- Nr 13 Order code 50096841

  接地端/盖子锁紧扣

  Kit Ground terminal / Cover clamp

  显示详细信息隐藏详细信息
20
- Nr 20 Order code 50094041

  墙装型密封盖

  Kit Seal cover to Wall enclosure

  显示详细信息隐藏详细信息
11
- Nr 11 Order code 50094050

  现场安装型密封盖

  Kit 10 Seal cover to field housing

  显示详细信息隐藏详细信息
22
- Nr 22 Order code 50098020

  安装螺丝及安装附件

  Usage: 10/23/50/51/53/55 Sensor: D/E/H/L/P/S/W

  显示详细信息隐藏详细信息
24
- Nr 24 Order code 50098019

  安装螺丝及安装附件

  Usage: 10/50/51/53/55/400/800 Sensor: D/E/H/L/P/S/W

  显示详细信息隐藏详细信息
25
- Nr 25 Order code 50098023

  垫圈

  Usage: 10/50/51/53/55/400/800 Sensor: D/E/L/P/S/W

  显示详细信息隐藏详细信息
23
- Nr 23 Order code 50098024

  垫圈

  Usage: 10/23/50/51/53/55 Sensor: D/E/L/P/S/W

  显示详细信息隐藏详细信息
- Order code 50093681

  交换模块

  显示详细信息隐藏详细信息
- Order code DK5CA-

  Promag 10/50/51/53/55 分离型的电缆 DK5CA

  10/50/51/53/55/400/800 1 kit includes 1 coil cable and 1 signal cable

  显示详细信息隐藏详细信息
- Order code 50XXX-

  Promag 50 变送器 50XXX

  显示详细信息隐藏详细信息
- Order code DK5WM-

  Promag10/50/51/53/55变送器安装组件 DK5WM

  10/50/51/53/55/800

  显示详细信息隐藏详细信息
- Order code DK5GC-

  接地线 DK5GC

  A kit includes 2 cables

  显示详细信息隐藏详细信息
- Order code DK5GD-

  接地环 DK5GD

  Includes 1 grounding disc/protection disc

  显示详细信息隐藏详细信息
- Order code FXA193-

  通讯接口 FXA193

  The service interface connects the service port of Proline and ToF devices with the serial interface RS 232C (9 pin.) of a personal computer. Contents of delivery: - Serviceinterface with RS 232C connection cable (9 pin.) - FXA "USB" cable, the additional power supply for FXA193 from USB-port of the PC. - Service Softw.ToF Tool-Fieldtool Package

  显示详细信息隐藏详细信息

显示更多
显示更少

替代产品

F

L

E

X
Proline Promag W 400 / 5W4C

多功能标准流量计，适用于水和污水行业，例如：饮用水、公用水和工业/城市污水测量。
更多信息

价格核算中…

暂时无价格信息

登录后显示价格

from CHF 803.-

简易产品
轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

什么是FLEX产品选型

标准产品
测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

什么是FLEX产品选型

高端产品
功能丰富，适用范围广

仪表技术性能

选型便捷程度

什么是FLEX产品选型

定制产品
专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

什么是FLEX产品选型

FLEX产品选型	仪表技术性能	选型便捷程度
F L E X Fundamental选型完美胜任基本测量任务	仪表技术性能	选型便捷程度
F L E X Lean选型轻松应对关键工艺的测量挑战	仪表技术性能	选型便捷程度
F L E X Extended选型创新技术助力工艺流程优化	仪表技术性能	选型便捷程度
F L E X Xpert选型满足严苛工况的特殊测量要求	仪表技术性能	选型便捷程度特殊选型

获取FLEX产品选型的详细信息

Promag 50W

特征和规格

Details

测量原理

产品标题

传感器特点

变送器特点

公称口径范围

最大测量误差

测量范围

最大过程压力

介质温度范围

环境温度范围

防护等级

显示/操作

输出

输入

数字通信

防爆认证

产品安全性

压力认证和证书

卫生型认证和证书

文档/手册/软件

附件/备件

替代产品

Proline Promag W 400 / 5W4C
