Proline Promass S 100 / 8S1B

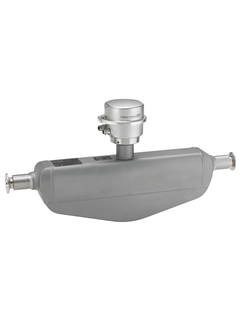

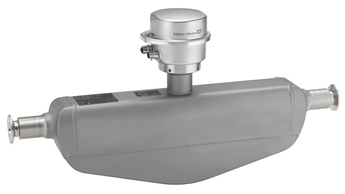

科里奥利质量流量计 -  Proline Promass S 100 ©Endress+Hauser

此产品现已不再销售。

想要查看新产品,请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    The easy‐to‐clean flowmeter with self‐drainable singletube system and an ultra‐compact transmitter. Dedicated for applications requiring optimal cleanability under hygienic conditions.

  • 传感器特点

    Increased process safety – easy cleanable and fully self‐drainable tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Large range of hygienic process connections. 3-A and EHEDG conform.

  • 变送器特点

    Space‐saving transmitter – full functionality on smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra‐compact transmitter housing. High ingress protection: IP69K.

  • 公称口径范围

    DN 8 to 50 (⅜ to 2")

  • 接液部件材质

    Measuring tube: 1.4435 (316L)

    Connection: 1.4435 (316L); 1.4404 (316/316L)

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • 最大测量误差

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 70 000 kg/h (0 to 2570 lb/min)

  • 最大过程压力

    PN 40, Class 150, 20K

  • 介质温度范围

    –50 to +150 °C (–58 to +302 °F)

  • 环境温度范围

    Standard: –40 to +60 °C (–40 to +140 °F)
    Option: –50 to +60 °C (–58 to +140 °F)

  • 传感器外壳材质

    1.4301 (304), corrosion resistant

  • 变送器外壳材质

    Compact: AlSi10Mg, coated
    Compact/ultra‐compact: 1.4301 (304), 1.4404 (316L)

  • 防护等级

    Standard: IP66/67, type 4X enclosure
    Option: IP69K

  • 显示/操作

    4‐line backlit display available (no local operation)
    Configuration via web browser and operating tools possible

  • 输出

    4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)

  • 输入

    None

  • 数字通信

    HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

  • 电源

    DC 20 to 30 V

  • 防爆认证

    ATEX, IECEx, cCSAus, INMETRO, NEPSI, TIIS

  • 其他认证和证书

    3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV Attestation)

    PED, CRN

    3-A, EHEDG

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 47
  • 45
  • 30
  • 39
    • Nr 39 Order code 71185788

      T-DAT模块

      Usage: Promag/Promass 100/300/500, 500 digital, Prosonic Flow E 100, Prosonic Flow 300, 500 digital, Promag 400(C). (C) = generation index C.

  • 50
  • 21
    • Nr 21 Order code 71185789

      铝表盖

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Consists of: Cover Aluminium, coated. O-Ring 113,90 x 3,53 NBR for cover.

    • Nr 21 Order code 71185790

      不锈钢表盖

      Usage: Promass 100, Promag 100, Prosonic Flow 100. Consists of: Cover stainless 1.4301. Gasket EPDM for cover.

    • Nr 21 Order code 71185793

      不锈钢表盖

      Usage: Promag/Promass 100, Promag/Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket EPDM for cover.

  • 20
    • Nr 20 Order code 71266334

      铝盖组件, 玻璃视窗, 一体化

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat. Consists of: Cover with sight glass Aluminium, coated. O-Ring 113,90 x 3,53 NBR for cover.

    • Nr 20 Order code 71266335

      铝盖组件, 玻璃视窗, 一体化

      Usage: Promass 100, Promag 100, Prosonic Flow 100. Consists of: Cover with sight glass stainless 1.4301. Gasket EPDM for cover.

    • Nr 20 Order code 71266337

      铝盖组件, 玻璃视窗, 超紧凑

      Usage: Promass 100, Promag 100. Consists of: Cover with sight glass stainless 1.4301. Gasket EPDM for cover.

  • 70
    • Nr 70 Order code 71185795

      铝外壳密封圈

      Usage: Promass 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Consists of: O-Ring 113,90 x 3,53 NBR for cover. Gasket EPDM for housing/sensor.

    • Nr 70 Order code 71185797

      不锈钢外壳密封圈

      Usage: Promass 100, Prosonic Flow 100. Consists of: Gasket EPDM for cover. Gasket EPDM for housing/sensor.

    • Nr 70 Order code 71185799

      外壳密封圈

      Usage: Promass 100, Promass 500 digital, sensor connection housing. Consists of: gasket EPDM for cover, gasket EPDM for housing/sensor.

  • 15
  • 12
    • Nr 12 Order code 71276494

      卡箍紧固,螺丝

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Sensor housing: Promag 400(C), (C) = generation index C, Promag/Promass 500, Promag/Promass/Prosonic Flow 500 digital. Consists of: cover clamp, screw M4x16.
