Proline Promass E 200 / 8E2B

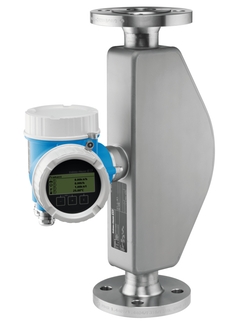

科里奥利质量流量计 Proline Promass E 200 ©Endress+Hauser

此产品现已不再销售。

想要查看新产品,请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    真正回路供电两线制流量计,最低使用成本。在标准应用中进行液体和气体的高精度测量,应用广泛。

  • 传感器特点

    使用经济:多用途仪表;传统体积流量计的替代优选。更少的过程测量点:多变量测量(流量、密度、温度)。所需安装空间小:无前后直管段长度要求。一体式双管系统。最高介质温度为+140 °C (+284 °F)。

  • 变送器特点

    仪表接线方便:配备独立接线腔。操作安全:配备带触摸键控制的背光显示单元,无需打开仪表操作。自校验:Heartbeat Technology(心跳技术)。两线制回路供电。坚固耐用的双腔室外壳。

  • 公称口径范围

    DN 8...50 (⅜...2")

  • 接液部件材质

    测量管:1.4539 (904L)
    连接部件:1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度

  • 最大测量误差

    质量流量(液体):±0.25 %
    体积流量(液体):±0.25 %
    质量流量(气体):±0.75 %
    密度(液体):±0.0005 g/cm³

  • 测量范围

    0...70 000 kg/h (0...2570 lb/min)

  • 最大过程压力

    PN 100,Cl. 600,63K

  • 介质温度范围

    –40...+140 °C (–40...+284 °F)

  • 环境温度范围

    –40...+60 °C (–40...+140 °F)

  • 传感器外壳材质

    1.4301 (304),耐腐蚀

  • 变送器外壳材质

    铝合金AlSi10Mg涂层:1.4404 (316L)

  • 防护等级

    IP66/67,Type 4X

  • 显示/操作

    四行背光显示,触摸键操作
    (外部操作)
    通过现场显示屏和调试软件设置
    提供分离型显示单元

  • 输出

    4...20 mA HART(无源)
    4...20 mA(无源)
    脉冲/频率/开关量输出(无源)

  • 输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus

  • 电源

    18...35 VDC(4...20 mA HART,带/不带脉冲/频率/开关量)
    18...30 VDC(20 mA HART,4...20 mA)
    9...32 VDC(PROFIBUS PA)

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、TIIS

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上标定(符合ISO/IEC 17025标准)

  • 压力认证和证书

    PED、CRN

  • 卫生型认证和证书

    3-A

  • 测量原理

    科里奥利质量流量

  • 产品标题

    真正回路供电两线制流量计,最低使用成本。在标准应用中进行液体和气体的高精度测量,应用广泛。

  • 传感器特点

    使用经济:多用途仪表;传统体积流量计的替代优选。更少的过程测量点:多变量测量(流量、密度、温度)。所需安装空间小:无前后直管段长度要求。一体式双测量管传感器。最高介质温度为+140 °C (+284 °F)。

  • 变送器特点

    仪表接线方便:配备独立接线腔。操作安全:配备带触摸键控制的背光显示单元,无需打开仪表操作。自校验:Heartbeat Technology(心跳技术)。两线制回路供电。双腔室外壳坚固耐用。

  • 公称口径范围

    DN 8...50 (⅜...2")

  • 接液部件材质

    测量管:1.4539 (904L)
    连接部件:1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度

  • 最大测量误差

    质量流量(液体):±0.25 %
    体积流量(液体):±0.25 %
    质量流量(气体):±0.75 %
    密度(液体):±0.0005 g/cm³

  • 测量范围

    0...70 000 kg/h (0...2570 lb/min)

  • 最大过程压力

    PN 100,Cl. 600,63K

  • 介质温度范围

    –40...+140 °C (–40...+284 °F)

  • 环境温度范围

    –40...+60 °C (–40...+140 °F)

  • 传感器外壳材质

    1.4301 (304),耐腐蚀

  • 变送器外壳材质

    带铝合金AlSi10Mg涂层

  • 防护等级

    IP66/67,Type 4X (外壳)

  • 显示/操作

    四行背光显示,触摸键操作(外部操作)
    通过现场显示屏和调试软件设置
    提供分离型显示单元

  • 输出

    4...20 mA HART(无源)
    4...20 mA(无源)
    脉冲/频率/开关量输出(无源)

  • 输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus

  • 电源

    18...35 VDC(4...20 mA HART,带/不带脉冲/频率/开关量)
    18...30 VDC(20 mA HART,4...20 mA)
    9...32 VDC(PROFIBUS PA)

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、TIIS

  • 其他认证和证书

    3.1材料证书,在认证标定装置上标定(遵循ISO/IEC 17025标准),NAMUR、SIL PED、CRN 3-A、EHEDG

  • 产品安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上标定(符合ISO/IEC 17025标准)

  • 压力认证和证书

    PED、CRN

  • 材料证书

    3.1材料证书

  • 卫生型认证和证书

    3-A认证

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 34
    • Nr 34 Order code 71108602

      I/O 模块

      Non-Ex, Ex. Current output, 4-20mA HART + 4-20mA analog. Usage: FTM50/FTM51/FTM52. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 34 Order code 71164940

      I/O 模块

      Non-Ex, Ex. PROFIBUS PA, FOUNDATION Fieldbus. PFS=switch output. Version 2. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass 200, Prowirl 200, Promag 200.

    • Order code 71128617

      过压保护器

      4-20mA HART. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71128619

      过压保护器

      4-20mA HART, PROFIBUS PA, FOUNDATION Fieldbus, Imp./Freq./Switch output. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/FMR54/FMR56/ FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Order code 71197334

      变送器 FHX50

      Consists of: electronics, ribbon cable. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57. Usage: Promass200, Prowirl 200, Promag 200, Prosonic Flow 200.

    • Order code

      Remote display FHX50 please order with separate order structure.

    • Order code 71296840

      Plug M12, VA

      To connect FHX50. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57. Not for dust Ex. Usage: Prowirl 200, Promass 200, Promag 200, Prosonic Flow 200.

  • 30
  • 34
  • 37
    • Nr 37 Order code 71110280

      端子套件 2-接线, I/O 模块

      Consists of: 4x terminal 2-pole, green. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 34
  • 40
    • Nr 40 Order code XPD0024-

      Display module, SD02, push buttons

      For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Consists of: Display SD02, helix cable, ribbon cable, connector cover.

    • Nr 40 Order code XPD0025-

      Display module, SD03, Touch Control

      For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200. Consists of: Display SD03 illuminated, ribbon cable, connector cover.

  • 20
    • Nr 20 Order code 71110281

      铝盖

      Material: 316L. O-ring, EPDM, PTFE coated. Usage: FMP51/FMP52/FMP54/FMP55/ FMP56/FMP57, FMR51/FMR52/FMR53/ FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 20 Order code 71110282

      铝盖

      Material: 316L. O-ring NBR, PTFE coated. Usage: FMP51/FMP52/FMP54/FMP55/ FMP56/FMP57, FMR51/FMR52/FMR53/ FMR54/FMR57, FMR62/FMR67, FHX50. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

  • 25
    • Nr 25 Order code 71110291

      铝盖

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, not for Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71110284

      铝盖

      Material: 316L. O-ring EPDM /PTFE coated. Usage: terminal compartment Ex d/XP, FMP51/FMP52/FMP54/FMP55/FMP56/FMP57, FMR51/FMR52/FMR53/FMR54/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 25 Order code 71185516

      Material: 316L. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMP54/FMP56/FMP57, FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Prowirl 200.

  • 20
    • Nr 20 Order code 71110299

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 20 Order code 71110297

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 25
    • Nr 25 Order code 71110301

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: terminal compartment, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71110302

      铝盖

      Material: aluminium, coated. O-ring EPDM, PTFE coated. Usage: terminal compartment Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

    • Nr 25 Order code 71185517

      铝盖

      Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 15
  • 65
    • Nr 65 Order code 71110303

      外壳密封套件

      Consists of: O-ring 88.5x3.53 EPDM/PTFE, cover electronics compartment, housing GT19. O-Ring 88.5x3.53 NBR, cover electronics compartment, housing GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, cover terminal compartment, housing GT19. O-Ring 91.67x3.53 NBR, cover terminal compartment, housing GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, housing/sensor. FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 19
    • Nr 19 Order code 71115174

      外壳过滤塞(304)

      Consists of: 2x filter plug metall 316L. 1x pressure compensation filter. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Prowirl 200.

    • Nr 19 Order code 71115175

      外壳过滤塞(黄铜/镍)

      Consists of: 2x filter plug brass nickel, pressure compensation filter. Usage: FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.

  • 17
    • Nr 17 Order code 71115176

      外壳设置固定夹

      Usage: housing GT18/GT19/GT20, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
