Proline Promag H 300
电磁流量计

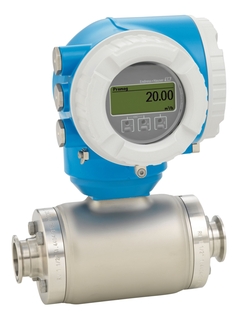

电磁流量计 Proline Promag H 300,适用于食品与饮料、生命科学行业 ©Endress+Hauser

Proline Promag H 300,适用于食品与饮料、生命科学行业

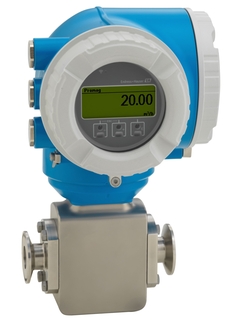

电磁流量计 Proline Promag H 300,适用于食品与饮料、生命科学行业 ©Endress+Hauser

Proline Promag H 300 适用于食品与饮料、生命科学行业

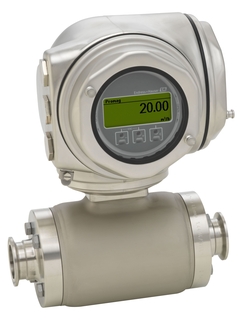

电磁流量计 Proline Promag H 300,适用于食品与饮料、生命科学行业 ©Endress+Hauser

Proline Promag H 300,适用于食品与饮料、生命科学行业

电磁流量测量原理

心跳技术简要说明(3'14")

配备操作简便的一体式变送器,卫生行业应用专家

Promag H 传感器特别适用于卫生应用场合,满足食品和饮料、生命科学行业中的最高要求。与一体式变送器配套使用,Promag H 300 操作灵活,系统集成便捷:在仪表的同一侧接线、远程显示、改进的连接方式。Heartbeat Technology(心跳技术)始终确保合规性和过程安全性。

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富,适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 最大测量误差

      体积流量(标准):±0.5 % o.r. ± 1 mm/s (0.04 in/s)
      体积流量(可选):±0.2 % o.r. ± 2 mm/s (0.08 in/s)

    • 测量范围

      0.06...600 m³/h (0.015...2 650 gal/min)

    • 介质温度范围

      –20...+150 °C (–4...+302 °F)

    • 最大过程压力

      PN 40,Cl. 150,20K

    • 接液部件材质

      内衬:PFA
      电极:1.4435 (316L)、Alloy C22 2.4602 (UNS N06022)合金、钽、铂

please wait Loading alternative products

快速选择

从我们建议的选项中选择
售价
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 安装灵活:提供多种卫生型过程连接

    • 节能的流量测量:无节流部件,确保无压损

    • 免维护:无可移动部件

    • 完整查看过程信息和诊断信息:提供多种用户自定义输入/输出组合方式和现场总线

    • 降低复杂性和多样性:用户自定义输入/输出功能

    • 自带验证功能:内置Heartbeat Technology (心跳技术)

  • 应用领域

    • 双向测量原理不受压力、密度、温度和粘度的影响。

    • 适用于食品与饮料、生命科学行业中的苛刻应用。

    仪表特点

    • PFA内衬

    • 不锈钢传感器外壳 (3-A认证、EHEDG测试)

    • 接液部件材料耐CIP、SIP清洗

    • 一体式卫生型双腔室外壳,IP69,最多带3路输入/输出

    • 背光显示、触摸键控制和WLAN访问

    • 提供分离型显示单元

特征和规格

返回

Details

  • 测量原理

    电磁

  • 产品标题

    Specialist for hygienic applications with a compact, easily accessible transmitter.
    Dedicated to demanding applications in the food and beverage as well as in life sciences industries.

  • 传感器特点

    Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
    Liner made of PFA. Sensor housing made of stainless steel (3-A, EHEDG).

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Wetted materials CIP, SIP cleanable. Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os. Backlit display with touch control and WLAN access.

  • 公称口径范围

    DN 2...150 (¹⁄₁₂...6⁄")

  • 接液部件材质

    内衬:PFA
    电极:1.4435 (316L)、Alloy C22 2.4602 (UNS N06022)合金、钽、铂

  • 测量变量

    体积流量、温度、电导率、质量流量、校正体积流量、校正电导率

  • 最大测量误差

    体积流量(标准):±0.5 % o.r. ± 1 mm/s (0.04 in/s)
    体积流量(可选):±0.2 % o.r. ± 2 mm/s (0.08 in/s)

  • 测量范围

    0.06...600 m³/h (0.015...2 650 gal/min)

  • 最大过程压力

    PN 40,Cl. 150,20K

  • 介质温度范围

    –20...+150 °C (–4...+302 °F)

  • 环境温度范围

    –40...+60 °C (–40...+140 °F)

  • 传感器外壳材质

    1.4301 (304),耐腐蚀

  • 变送器外壳材质

    卫生型变送器设计:铝合金AlSi10Mg涂层;1.4409 (CF3M),类同316L;不锈钢

  • 防护等级

    IP66/67,type 4X
    IP69

  • 显示/操作

    四行背光显示,触摸键操作(外部操作)
    通过现场显示屏和调试软件设置
    提供分离型显示单元

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC(非危险区)

  • 防爆认证

    ATEX、IECEx、cCSAus、INMETRO、NEPSI、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定(符合ISO/IEC 17025标准)
    Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, BV approval

  • 压力认证和证书

    PED、CRN

  • 材料证书

    3.1材料证书

  • 卫生型认证和证书

    卫生认证:3-A、EHEDG;密封圈:符合FDA认证

文档/手册/软件
