Proline Promass Q 300
科里奥利质量流量计

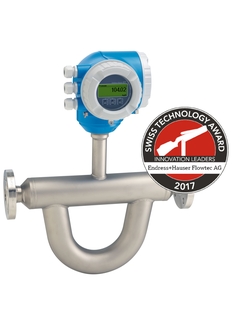

产品图片:Proline Promass Q 300 / 8Q3B,法兰连接,一体式变送器 ©Endress+Hauser

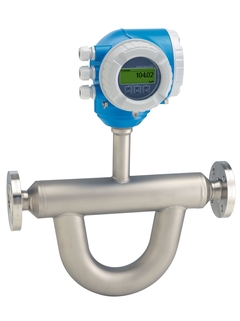

Proline Promass Q 300,法兰连接,一体式变送器

Proline Promass Q 300 产品图片(水平) ©Endress+Hauser

Proline Promass Q 300

乳制品厂 Meierei Barmstedt 采用 Proline Promass Q 使接收含气原奶时的测量更加精准

2018德国创新大奖金奖

德国创新大奖表彰业内创新产品,这些产品往往因其高附加值而从众多现有解决方案中脱颖而出。

Promass Q - 精确测量含气液体的流量测量专家

科氏力流量测量原理

创新的苛刻工况流量测量专家,搭配易操作的一体式变送器

Promass Q 300具有最高质量流量、体积流量和密度测量精度。它是计量交接应用的最佳选择,并已针对含气液体的测量应用进行优化。与一体式变送器配套使用, 操作灵活,系统集成便捷:在仪表的同一侧接线、远程显示、改进的连接方式。Heartbeat Technology (心跳技术)确保始终合规,保证过程安全。

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富,适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 最大测量误差

      质量流量(液体):±0.10 %(标准)、0.05 %(可选)
      体积流量(液体):±0.10 %
      质量流量(气体):±0.35 %
      密度(液体):±0.2 kg/m³

    • 测量范围

      0...550 000 kg/h (0...20 210 lb/min)

    • 介质温度范围

      标准:–50...+205 °C (–58...+401 °F)
      可选:–196...+150 °C (–321...+302 °F)

    • 最大过程压力

      PN 100,Cl. 600,63K

    • 接液部件材质

      测量管:1.4404 (316/316L)、不锈钢(适用低温应用)
      连接部件:1.4404 (316/316L)

please wait Loading alternative products

快速选择

从我们建议的选项中选择
售价
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 保证测量质量:最高质量流量、体积流量和密度测量精度

    • 优化含气液体测量性能:MFT (多频技术)

    • 较少过程测量点:多参数测量(流量、密度、温度)

    • 节省安装空间:无前/后直管段长度要求

    • 完整查看过程信息和诊断信息:提供多种用户自定义输入/输出组合方式和现场总线

    • 降低复杂性和多样性:用户自定义输入/输出功能

    • 自带验证功能:内置Heartbeat Technology (心跳技术)

  • 应用领域

    • 测量原理不受流体物理特性的影响(例如:粘度和密度)

    • 计量交接、密度测量及苛刻工况下具有优异的测量性能

    仪表特点

    • 质量流量测量误差:±0.05 % (PremiumCal)

    • 密度测量误差:±0.2 kg/m3

    • 低压损/小零点,高量程比

    • 一体式双腔室外壳,最多带3路输入/输出

    • 背光显示、触摸键控制和WLAN访问

    • 提供分离型显示单元

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Innovative specialist for challenging applications with a compact, easily accessible transmitter.
    Highest measurement performance for custody transfer, density and under tough process conditions.

  • 传感器特点

    Optimized performance for liquids with entrained gas – MFT (Multi-Frequency Technology). Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
    Mass flow: measurement error ±0.05 % (PremiumCal). Density: measurement error ±0.2 kg/m³. High turndown due to low pressure loss/zero point.

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

  • 公称口径范围

    DN 25...100 (1...4")

  • 接液部件材质

    测量管:1.4404 (316/316L)、不锈钢(适用低温应用)
    连接部件:1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量(液体):±0.10 %(标准)、0.05 %(可选)
    体积流量(液体):±0.10 %
    质量流量(气体):±0.35 %
    密度(液体):±0.2 kg/m³

  • 测量范围

    0...550 000 kg/h (0...20 210 lb/min)

  • 最大过程压力

    PN 100,Cl. 600,63K

  • 介质温度范围

    标准:–50...+205 °C (–58...+401 °F)
    可选:–196...+150 °C (–321...+302 °F)

  • 环境温度范围

    标准:- 20...+60 °C (–40...+140 °F)
    可选:–40...+60 °C (–40...+140 °F)

  • 传感器外壳材质

    1.4404 (316L),强耐腐蚀

  • 变送器外壳材质

    带铝合金AlSi10Mg涂层:1.4409 (CF3M),类似316L;不锈钢或卫生型变送器外壳

  • 防护等级

    IP66/67,type 4X
    IP69

  • 显示/操作

    四行背光显示,触摸键操作(外部操作)
    通过现场显示屏和调试软件设置
    提供分离型显示单元

  • 输出

    3路输出:
    4...20 mA HART(有源/无源)
    4...20 mA WirelessHART
    4...20 mA(有源/无源)
    脉冲/频率/开关量输出(有源/无源)
    双脉冲输出(有源/无源)
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC(非危险区)

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定(符合ISO/IEC 17025标准)
    Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)
    MI-005非水液体(碳水化合物、低温液体)
    OIML R117(非水液体、液化气、低温液体)
    NTEP(非水液体、液化气、低温液体)

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, BV approval

  • 压力认证和证书

    PED、CRN、AD 2000

  • 材料证书

    3.1材料证书
    NACE MR0175/MR0103,PMI,焊接测试遵循EN ISO、ASME、NORSOK标准

  • 卫生型认证和证书

    3-A、EHEDG

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Innovative specialist for challenging applications with a compact, easily accessible transmitter.
    Highest measurement performance for custody transfer, density and under tough process conditions.

  • 传感器特点

    Optimized performance for liquids with entrained gas – MFT (Multi-Frequency Technology). Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
    Mass flow: measurement error ±0.05 % (PremiumCal). Density: measurement error ±0.2 kg/m³. High turndown due to low pressure loss/zero point.

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

  • 公称口径范围

    DN 25...100 (1...4")

  • 接液部件材质

    测量管:1.4404 (316/316L)、不锈钢(适用低温应用)
    连接部件:1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量(液体):±0.10 %(标准)、0.05 %(可选)
    体积流量(液体):±0.10 %
    质量流量(气体):±0.35 %
    密度(液体):±0.5 kg/m³

  • 测量范围

    0...400 000 kg/h (0...14 697 lb/min)

  • 最大过程压力

    PN 100,Cl. 600,63K

  • 介质温度范围

    标准:–50...+205 °C (–58...+401 °F)
    可选:–196...+150 °C (–321...+302 °F)

  • 环境温度范围

    标准:- 20...+60 °C (–40...+140 °F)
    可选:–40...+60 °C (–40...+140 °F)

  • 传感器外壳材质

    1.4404 (316L),强耐腐蚀

  • 变送器外壳材质

    带铝合金AlSi10Mg涂层:1.4409 (CF3M),类似316L;不锈钢或卫生型变送器外壳

  • 防护等级

    IP66/67,type 4X
    IP69

  • 显示/操作

    四行背光显示,触摸键操作(外部操作)
    通过现场显示屏和调试软件设置
    提供分离型显示单元

  • 输出

    3路输出:
    4...20 mA HART(有源/无源)
    4...20 mA WirelessHART
    4...20 mA(有源/无源)
    脉冲/频率/开关量输出(有源/无源)
    双脉冲输出(有源/无源)
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC(非危险区)

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定(符合ISO/IEC 17025标准)
    Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)
    MI-005非水液体(碳水化合物、低温液体)
    OIML R117(非水液体、液化气、低温液体)
    NTEP(非水液体、液化气、低温液体)

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, BV approval

  • 压力认证和证书

    PED、CRN、AD 2000

  • 材料证书

    3.1材料证书
    NACE MR0175/MR0103,PMI,焊接测试遵循EN ISO、ASME、NORSOK标准

  • 卫生型认证和证书

    3-A、EHEDG

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Innovative specialist for challenging applications with a compact, easily accessible transmitter.
    Highest measurement performance for custody transfer, density and under tough process conditions.

  • 传感器特点

    Optimized performance for liquids with entrained gas – MFT (Multi-Frequency Technology). Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
    Mass flow: measurement error ±0.05 % (PremiumCal). Density: measurement error ±0.2 kg/m³. High turndown due to low pressure loss/zero point.

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

  • 公称口径范围

    DN 25 to 100 (1 to 4")

  • 接液部件材质

    Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications
    Connection: 1.4404 (316/316L)

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • 最大测量误差

    Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
    Volume flow (liquid): ±0.10 %
    Mass flow (gas): ±0.35 %
    Density (liquid): ±0.2 kg/m³

  • 测量范围

    0 to 550 000 kg/h (0 to 20 210 lb/min)

  • 最大过程压力

    PN 100, Class 600, 63K

  • 介质温度范围

    Standard: –50 to +205°C (–58 to +401 °F)
    Option: –196 to +150 °C (–321 to +302 °F)

  • 环境温度范围

    Standard: - 40 to +60 °C (–40 to +140 °F)
    Option:–50 to +60 °C (–58 to +140 °F)

  • 传感器外壳材质

    1.4404 (316L), highest corrosion resistance

  • 变送器外壳材质

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

  • 防护等级

    IP66/67, type 4X enclosure
    IP69

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • 输出

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • 输入

    Status input
    4-20 mA input

  • 数字通信

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • 电源

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • 防爆认证

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex

  • 产品安全性

    CE, C-tick, EAC marking

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
    MI-005 Liquids other than water (Hydrocarbons, Liquified gases, Cryogenic liquids)
    OIML R117 (Liquids other than water, Liquified gases, Cryogenic liquids)
    NTEP (Liquids other than water, Cryogenic liquids)

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, BV approval

  • 压力认证和证书

    PED, CRN, AD 2000

  • 材料证书

    3.1 material
    NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK

  • 卫生型认证和证书

    3-A, EHEDG, cGMP

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Innovative specialist for challenging applications with a compact, easily accessible transmitter.
    Highest measurement performance for custody transfer, density and under tough process conditions.

  • 船级认证和证书

    LR approval, DNV GL approval, ABS approval, BV approval

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Innovative specialist for challenging applications with a compact, easily accessible transmitter.
    Highest measurement performance for custody transfer, density and under tough process conditions.

  • 传感器特点

    Optimized performance for liquids with entrained gas – MFT (Multi-Frequency Technology). Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
    Mass flow: measurement error ±0.05 % (PremiumCal). Density: measurement error ±0.2 kg/m³. High turndown due to low pressure loss/zero point.

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

  • 公称口径范围

    DN 25 to 100 (1 to 4")

  • 接液部件材质

    Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications
    Connection: 1.4404 (316/316L)

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • 最大测量误差

    Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
    Volume flow (liquid): ±0.10 %
    Mass flow (gas): ±0.35 %
    Density (liquid): ±0.2 kg/m³

  • 测量范围

    0 to 550 000 kg/h (0 to 20 210 lb/min)

  • 最大过程压力

    PN 100, Class 600, 63K

  • 介质温度范围

    Standard: –50 to +205°C (–58 to +401 °F)
    Option: –196 to +150 °C (–321 to +302 °F)

  • 环境温度范围

    Standard: - 40 to +60 °C (–40 to +140 °F)
    Option:–50 to +60 °C (–58 to +140 °F)

  • 传感器外壳材质

    1.4404 (316L), highest corrosion resistance

  • 变送器外壳材质

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

  • 防护等级

    IP66/67, type 4X enclosure
    IP69

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • 输出

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • 输入

    Status input
    4-20 mA input

  • 数字通信

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • 电源

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • 防爆认证

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex

  • 其他认证和证书

    CE, C-tick, EAC marking

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511


    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
    MI-005 Liquids other than water (Hydrocarbons, Liquified gases, Cryogenic liquids)
    OIML R117 (Liquids other than water, Liquified gases, Cryogenic liquids)
    NTEP (Liquids other than water, Cryogenic liquids)
    MC (Liquids other than water, Cryogenic liquids)


    LR approval, DNV GL approval, ABS approval, BV approval

    PED, CRN, AD 2000


    3.1 material
    NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK


    3-A, EHEDG, cGMP

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 31
    • Nr 31 Order code 71323007

      电源组件

      Usage: Promag/Promass 300/500, Prosonic Flow/t-mass 300, transmitter housing, electronic compartment.

    • Nr 31 Order code 71323008

      电源组件

      Usage: Promag/Promass 300/500, Prosonic Flow/t-mass 300, transmitter housing, electronic compartment.

    • Nr 31 Order code 71323009

      电源组件

      Usage: Promag/Promass/Prosonic Flow/ t-mass 300/500 digital, Non-haz, Zone 2, transmitter housing, electronic compartment.

  • 33
  • 39
  • 34
  • 37
    • Nr 37 Order code 71323010

      模块盒, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

    • Nr 37 Order code 71323011

      模块盒, 300, Non-haz

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 35
  • 46
  • 50
  • 45
    • Nr 45 Order code 71323073

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323074

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option B = EtherNet, PROFINET. Consists of: 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71327818

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323075

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323076

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

    • Nr 45 Order code 71327819

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323075

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323076

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

    • Nr 45 Order code 71327819

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

  • 49
    • Nr 49 Order code 71323079

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment with remote display DKX001. Consists of: 1x connection terminal 4-Pol.

  • 20
    • Nr 20 Order code 71323016

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Promag/Promass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323017

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Non-haz. Promass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 21
    • Nr 21 Order code 71323018

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Non-haz. Promag/Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 HNBR.

    • Nr 21 Order code 71323019

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Non-haz. Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71323020

      铝盖组件 玻璃视窗

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323021

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 21
    • Nr 21 Order code 71323022

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 HNBR.

    • Nr 21 Order code 71323023

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71323024

      盖组件

      Usage: Promass/Prosonic Flow 300, Promag/Promass/Prosonic Flow 500, transmitter housing cast, Ex. Consists of: cover sight glass, cast, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323025

      盖组件

      Usage: Promass/Prosonic Flow 300, Promag/Promass/Prosonic Flow 500, transmitter housing cast, Ex. Consists of: cover sight glass cast, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 21
    • Nr 21 Order code 71327102

      盲盖组件

      Usage: Promass/Prosonic Flow 300 with remote display, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 110.7x3.53 HNBR.

    • Nr 21 Order code 71327103

      盲盖组件

      Usage: Promass/Prosonic Flow 300 with remote display, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 70
    • Nr 70 Order code 71323026

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

    • Nr 70 Order code 71323027

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323028

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 HNBR.

    • Nr 22 Order code 71323029

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323030

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: 10x O-Ring 117,1x3,53 HNBR.

    • Nr 74 Order code 71323031

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: O-Ring 117,1x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323032

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323033

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 22 Order code 71323034

      盖组件

      Usage: Promass/Prosonic Flow 300, Promag/Promass/Prosonic Flow 500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323035

      盖组件

      Usage: Promass/Prosonic Flow 300, Promag/Promass/Prosonic Flow 500, transmitter housing cast, Ex. Consists of: cover cast, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323036

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

    • Nr 74 Order code 71323036

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 28
  • 76
  • 71
    • Nr 71 Order code 71323071

      界面密封圈组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promass/Prosonic Flow 500, transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface.

    • Nr 71 Order code 71323072

      界面密封圈组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promass/Prosonic Flow 500, transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

    • Nr 71 Order code 71323072

      界面密封圈组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promass/Prosonic Flow 500, transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

    • Nr 71 Order code 71368491

      接口垫圈

      Usage: transmitter housing/sensor. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface, 5x gasket EPDM for interface.

    • Nr 71 Order code 71368492

      接口垫圈

      Usage: transmitter housing/sensor. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF, cryogenic -196oC/-320oF. Gasket EPDM for interface, -50oC/-58oF, cryogenic -196oC/-320oF.

    • Nr 71 Order code 71368492

      接口垫圈

      Usage: transmitter housing/sensor. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF, cryogenic -196oC/-320oF. Gasket EPDM for interface, -50oC/-58oF, cryogenic -196oC/-320oF.

  • 11
    • Nr 11 Order code 71368488

      保护壳

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71368489

      保护壳

      Usage: transmitter housing Alu/hygienic, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323081

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323081

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 87
    • Nr 87 Order code 71343505

      防护外壳组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing. Consists of: weather protection cover 4404, installation material.

下载
