Proline Promass P 500
科里奥利质量流量计

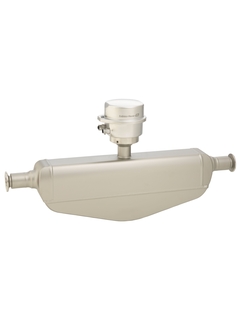

产品图片:科里奥利质量流量计 Proline Promass P 500 / 8P5B,适用于生命科学行业 ©Endress+Hauser

Proline Promass P 500,适用于生命科学行业

科里奥利力流量测量原理

生命科学领域专用流量计,搭配最多带4路输入/输出的分体式变送器

Promass P是生命科学领域的无菌过程专家,专门针对要求最高合规性的生物技术应用。Promass P 500配备了创新型分体式变送器,最大限度地提高了苛刻环境中的安装灵活性和操作安全性。心跳技术(Heartbeat Technology)始终确保合规性与过程安全。

  • 优势

    • 最高过程质量:完全满足行业要求

    • 较少过程测量点:多参数测量(流量、密度、温度)

    • 节省安装空间:无前/后直管段长度要求

    • 完整查看过程信息和诊断信息:提供多种用户自定义输入/输出组合方式和现场总线

    • 降低复杂性和多样性:用户自定义输入/输出功能

    • 自带验证功能:内置Heartbeat Technology (心跳技术)

  • 应用领域

    • 测量原理不受流体物理特性的影响(例如:粘度和密度)。

    • 生命科学行业的无菌条件下的专用流量计。

    仪表特点

    • ASME BPE认证、3-A认证和EHEDG认证,低铁素体含量

    • 测量管材质:不锈钢1.4435 (316L),电抛光处理

    • CIP/SIP清洗后能够快速恢复

    • 分体式仪表,最多带4路输入/输出,卫生型传感器接线盒,IP69 可选

    • 背光显示、触摸键控制和WLAN访问

    • 传感器和变送器通过标准电缆连接

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    生命科学领域的专用流量计,搭配最多带4路输入/输出的分体式变送器。生命科学行业中无菌条件下使用的专用流量计。

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Specialist for life sciences, as remote version with up to 4 I/Os. Dedicated to applications under sterile conditions in the life sciences industry.

  • 传感器特点

    Highest process quality – fully compliant to industry requirements. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. ASME BPE, 3-A and EHEDG conform & low delta ferrite. Electropolished measuring tube in 1.4435 (316L).

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access.

  • 公称口径范围

    DN 8 to 50 (⅜ to 2")

  • 接液部件材质

    Measuring tube: 1.4435 (316L)
    Connection: 1.4435 (316L); 1.4404 (316/316L)

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • 最大测量误差

    Mass flow (liquid): ±0.10 %
    Volume flow (liquid): ±0.10 %
    Mass flow (gas): ±0.50 %
    Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 70 000 kg/h (0 to 2570 lb/min)

  • 最大过程压力

    PN 40, Class 150, 20K

  • 介质温度范围

    Standard: –50 to +150 °C (–58 to +302 °F)
    Option: –50 to +205 °C (–58 to +401 °F)

  • 环境温度范围

    Standard: –40 to +60 °C (–40 to +140 °F)
    Option: –50 to +60 °C (–58 to +140 °F)

  • 传感器外壳材质

    1.4301 (304), corrosion resistant
    Sensor connection housing (standard): AlSi10Mg, coated
    Sensor connection housing (option): 1.4301 (304); 1.4404 (316L)

  • 变送器外壳材质

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • 防护等级

    Sensor remote version (standard): IP66/67, type 4X enclosure
    Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible

  • 输出

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • 输入

    Status input
    4-20 mA input

  • 数字通信

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • 电源

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • 防爆认证

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

  • 产品安全性

    CE, C-tick, EAC marking

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • 压力认证和证书

    PED, CRN

  • 材料证书

    3.1 material

  • 卫生型认证和证书

    3-A, EHEDG, ASME BPE, ISPE, cGMP

  • 测量原理

    科里奥利质量流量

  • 产品标题

    生命科学领域专用流量计,搭配最多带4路输入/输出的分体式变送器。生命科学行业的无菌条件下的专用流量计。

  • 传感器特点

    最高过程质量:完全满足行业要求。更少的过程测量点:多变量测量(流量、密度、温度)。所需安装空间小:无前后直管段长度要求。ASME BPE认证、3-A认证和EHEDG认证,低铁素体含量。1.4435 (316L)材质的测量管经过电抛光处理。

  • 变送器特点

    提供完整的过程信息和诊断信息:多种用户自行组合的I/O接口和现场总线。降低复杂性和多样性:用户自定义输入/输出功能。自校验:Heartbeat Technology(心跳技术)。分体式仪表,最多带4路输入/输出。背光显示,触摸键操作和WLAN访问。

  • 公称口径范围

    DN 8...50 (⅜...2")

  • 接液部件材质

    测量管:1.4435 (316L)
    连接部件:1.4435 (316L)、1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量(液体):±0.10 %
    体积流量(液体):±0.10 %
    质量流量(气体):±0.50 %
    密度(液体):±0.0005 g/cm³

  • 测量范围

    0...70 000 kg/h (0...2570 lb/min)

  • 最大过程压力

    PN 40,Cl. 150,20K

  • 介质温度范围

    标准:–50...+150 °C (–58...+302 °F)
    可选:–50...+205 °C (–58...+401 °F)

  • 环境温度范围

    标准:–40...+60 °C (–40...+140 °F)
    可选:–50...+60 °C (–58...+140 °F)

  • 传感器外壳材质

    1.4301 (304),耐腐蚀
    传感器接线盒(标准):铝合金AlSi10Mg涂层
    传感器接线盒(可选):1.4301 (304)、1.4404 (316L)

  • 变送器外壳材质

    铝合金AlSi10Mg涂层;1.4409 (CF3M),类同316L;聚碳酸酯

  • 防护等级

    分体式传感器(标准):IP66/67,Type 4X
    分体式传感器(可选):IP69。分体式变送器:IP66/67, Type 4X

  • 显示/操作

    四行背光显示,触摸键操作(外部操作)
    通过现场显示单元和调试软件设置

  • 输出

    4路输出:
    4...20 mA HART(有源/无源)
    4...20 mA WirelessHART
    4...20 mA(有源/无源)
    脉冲/频率/开关量输出(有源/无源)
    双脉冲输出(有源/无源)
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC(非危险区)

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准,允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定(符合ISO/IEC 17025标准)
    Heartbeat Technology(心跳技术)符合ISO 9001:2008标准章节7.6 a的溯源校验要求(TÜV认证)

  • 压力认证和证书

    PED、CRN

  • 材料证书

    3.1材料证书

  • 卫生型认证和证书

    3-A、EHEDG、ASME BPE、ISPE

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Specialist for life sciences, as remote version with up to 4 I/Os. Dedicated to applications under sterile conditions in the life sciences industry.

  • 卫生型认证和证书

    cGMP
