Proline Promass A 500 / 8A5B

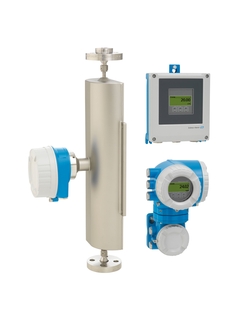

产品图片：科里奥利质量流量计 Proline Promass A 500 / 8A5B，搭配不同的分体式变送器 ©Endress+Hauser

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    单测量管流量计，用于极小流量测量，搭配最多带4路输入/输出的分体式变送器。用于连续过程控制中的极小流量液体和气体的高精度测量。

  • 测量原理

    科里奥利质量流量

  • 产品标题

    单测量管流量计，用于极小流量测量，搭配最多带4路输入/输出的分体式变送器。用于连续过程控制中的极小流量液体和气体的高精度测量。

  • 传感器特点

    最高过程安全性：自排空测量管。更少的过程测量点：多变量测量（流量、密度、温度）。所需安装空间小：无前后直管段长度要求。公称口径：DN 1...4 (¹⁄₂₄...¹⁄₈")。最大过程压力为400 bar (5800 psi)。

  • 变送器特点

    提供完整的过程信息和诊断信息：多种用户自行组合的I/O接口和现场总线。降低复杂性和多样性：允许用户自定义输入/输出功能。自校验：Heartbeat Technology（心跳技术）。分体式仪表，最多带4路输入/输出。背光显示，按键操作和WLAN访问。

  • 公称口径范围

    DN 1...4 (¹⁄₂₄...¹⁄₈")

  • 接液部件材质

    测量管：1.4539 (904L)；Alloy C22 2.4602 (UNS N06022)合金
    连接部件：1.4539 (904L)；Alloy C22 2.4602 (UNS N06022)合金；1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量（液体）：±0.10 %
    体积流量（液体）：±0.10 %
    质量流量（气体）：±0.50 %
    密度（液体）：±0.0005 g/cm³

  • 测量范围

    0...450 kg/h (0...16.5 lb/min)

  • 最大过程压力

    PN 40，Cl. 300，20K，400 bar (5800 psi)

  • 介质温度范围

    –50...+205 °C (–58...+401 °F)

  • 环境温度范围

    标准：–40...+60 °C (–40...+140 °F)
    可选：–50...+60 °C (–58...+140 °F)

  • 传感器外壳材质

    1.4301 (304)，耐腐蚀
    传感器接线盒（标准）：铝合金AlSi10Mg涂层
    传感器接线盒（可选）：1.4301 (304)、1.4404 (316L)

  • 变送器外壳材质

    铝合金AlSi10Mg涂层；1.4409 (CF3M)，类同316L；聚碳酸酯

  • 防护等级

    分体式传感器（标准）：IP66/67，Type 4X
    分体式传感器（可选）：IP69分体式变送器：IP66/67，Type 4X

  • 显示/操作

    四行背光显示，触摸键操作（外部操作）
    通过现场显示单元和调试软件设置

  • 输出

    4路输出：
    4...20 mA HART（有源/无源）
    4...20 mA WirelessHART
    4...20 mA（有源/无源）
    脉冲/频率/开关量输出（有源/无源）
    双脉冲输出（有源/无源）
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC（非危险区）

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准，允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定（符合ISO/IEC 17025标准）
    Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

  • 压力认证和证书

    CRN

  • 材料证书

    3.1材料证书

  • 卫生型认证和证书

    3-A、EHEDG

  • 测量原理

    科里奥利质量流量

  • 产品标题

    The single-tube flowmeter for smallest flow quantities, as remote version with up to 4 I/Os. Measuring accurately smallest quantities of liquids and gases for continuous process control.

  • 传感器特点

    Highest process safety – self-drainable measuring tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in/outlet run needs. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 400 bar (5800 psi).

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access.

  • 公称口径范围

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • 接液部件材质

    Measuring tube: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022)
    Connection: 1.4539 (904L); Alloy C22, 2.4602 (UNS N06022); 1.4404 (316/316L)

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • 最大测量误差

    Mass flow (liquid): ±0.10 %
    Volume flow (liquid): ±0.10 %
    Mass flow (gas): ±0.50 %
    Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 450 kg/h (0 to 16.5 lb/min)

  • 最大过程压力

    PN 40, Class 300, 20K, 400 bar (5800 psi)

  • 介质温度范围

    –50 to +205 °C (–58 to +401 °F)

  • 环境温度范围

    Standard: –40 to +60 °C (–40 to +140 °F)
    Option: –50 to +60 °C (–58 to +140 °F)

  • 传感器外壳材质

    1.4301 (304), corrosion resistant
    Sensor connection housing (standard): AlSi10Mg, coated
    Sensor connection housing (option): 1.4301 (304); 1.4404 (316L)

  • 变送器外壳材质

    AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

  • 防护等级

    Sensor remote version (standard): IP66/67, type 4X enclosure
    Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible

  • 输出

    4 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • 输入

    Status input
    4-20 mA input

  • 数字通信

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • 电源

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • 防爆认证

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC

  • 产品安全性

    CE, C-tick, EAC marking

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • 压力认证和证书

    CRN

  • 卫生型认证和证书

    3-A, EHEDG

  • 测量原理

    科里奥利质量流量

  • 产品标题

    单测量管流量计，用于极小流量测量，搭配最多带4路输入/输出的分体式变送器。用于连续过程控制中的极小流量液体和气体的高精度测量。

  • 传感器特点

    最高过程安全性：自排空测量管。更少的过程测量点：多变量测量（流量、密度、温度）。所需安装空间小：无前后直管段长度要求。公称口径：DN 1...4 (¹⁄₂₄...¹⁄₈")。最大过程压力为400 bar (5800 psi)。

  • 变送器特点

    提供完整的过程信息和诊断信息：多种用户自行组合的I/O接口和现场总线。降低复杂性和多样性：用户自定义输入/输出功能。自校验：Heartbeat Technology（心跳技术）。分体式仪表，最多带4路输入/输出。背光显示，按键操作和WLAN访问。

  • 公称口径范围

    DN 1...4 (¹⁄₂₄...¹⁄₈")

  • 接液部件材质

    测量管：1.4539 (904L)；Alloy C22 2.4602 (UNS N06022)合金
    连接部件：1.4539 (904L)；Alloy C22 2.4602 (UNS N06022)合金；1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量（液体）：±0.10 %
    体积流量（液体）：±0.10 %
    质量流量（气体）：±0.50 %
    密度（液体）：±0.0005 g/cm³

  • 测量范围

    0...450 kg/h (0...16.5 lb/min)

  • 最大过程压力

    PN 40，Cl. 300，20K，400 bar (5800 psi)

  • 介质温度范围

    –50...+205 °C (–58...+401 °F)

  • 环境温度范围

    标准：–40...+60 °C (–40...+140 °F)
    可选：–50...+60 °C (–58...+140 °F)

  • 传感器外壳材质

    1.4301 (304)，耐腐蚀
    传感器接线盒（标准）：铝合金AlSi10Mg涂层
    传感器接线盒（可选）：1.4301 (304)、1.4404 (316L)

  • 变送器外壳材质

    铝合金AlSi10Mg涂层；1.4409 (CF3M)，类同316L；聚碳酸酯

  • 防护等级

    分体式传感器（标准）：IP66/67，Type 4X
    分体式传感器（可选）：IP69。分体式变送器：IP66/67, Type 4X

  • 显示/操作

    四行背光显示，触摸键操作（外部操作）
    通过现场显示单元和调试软件设置

  • 输出

    4路输出：
    4...20 mA HART（有源/无源）
    4...20 mA WirelessHART
    4...20 mA（有源/无源）
    脉冲/频率/开关量输出（有源/无源）
    双脉冲输出（有源/无源）
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC（非危险区）

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准，允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定（符合ISO/IEC 17025标准）
    Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

  • 压力认证和证书

    CRN

  • 材料证书

    3.1材料证书

  • 卫生型认证和证书

    3-A、EHEDG

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 31
  • 47
    • Nr 47 Order code 71323012

      主电子连接板组件，防爆，Promass 500数字式

      Usage: transmitter housing, electronic compartment.

    • Nr 47 Order code 71323013

      主电子连接板组件，非防爆，500数字式

      Usage: Promag/Promass/Prosonic Flow 500 digital transmitter housing, electronic compartment.

  • 36
  • 33
  • 39
    • Nr 39 Order code 71185788

      T-DAT模块

      Usage: Promag/Promass 100/300/500, 500 digital, Prosonic Flow E 100, Prosonic Flow 300, 500 digital, Promag 400(C). (C) = generation index C.

  • 34
  • 37
    • Nr 37 Order code 71323010

      模块盒, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 46
  • 35
  • 45
    • Nr 45 Order code 71323075

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

  • 50
  • 45
    • Nr 45 Order code 71323076

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

    • Nr 45 Order code 71327819

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323077

      接线端子组件

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

    • Nr 45 Order code 71323078

      接线端子组件

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option B = EtherNet, PROFINET. Consists of: 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

    • Nr 45 Order code 71327820

      接线端子组件

      Usage: transmitter housing Alu/polycarbonate, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol., 1x connection terminal 6-Pol.

  • 44
  • 20
    • Nr 20 Order code 71323016

      盖组件

      Usage: Promag/Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Promag/Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323017

      盖组件

      Usage: Promass/Prosonic Flow 300, transmitter housing Alu, Non-haz. Promag 500, Promass 300/500, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

    • Nr 20 Order code 71323020

      铝盖组件 玻璃视窗

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323021

      盖组件

      Usage: Promag 500, Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, sight glass, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 70
    • Nr 70 Order code 71323026

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

    • Nr 70 Order code 71323027

      盖组件

      Usage: Promag 500, Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323032

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323033

      盖组件

      Usage: Promag 500, Promass 300/500, Prosonic Flow 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323036

      盖组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      盖组件

      Usage: Promag 500, Promass 300/500, Prosonic Flow 300, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 23
    • Nr 23 Order code 71323038

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 HNBR.

    • Nr 23 Order code 71323039

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu, Ex, connection compartment. Consists of: cover Alu, O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 75
    • Nr 75 Order code 71323042

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: 10x O-Ring 88,50x3,53 HNBR.

    • Nr 75 Order code 71323043

      盖组件

      Usage: Promag/Promass 500, wall mount transmitter Alu/cast, Ex, connection compartment. Consists of: O-Ring 88,50x3,53 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71384170

      Kit cover, alu,Promag 400(C),500 digital

      Usage: Promag 400(C) = generation index C, Promag/Promass/Prosonic Flow 500 digital, transmitter housing Alu. Consists of: cover Alu complete included O-Ring 196,40x3,53 HNBR, default and -50oC/-58oF, wire with screw lock 1,5x150.

    • Nr 20 Order code 71408508

      表盖

      Usage: Promag/Promass/Prosonic Flow 500 digital, transmitter housing polycarbonate. Consists of: Cover polycarbonate complete, O-Ring 196,44x3,53 VMQ, default and -50oC/-58oF, wire with screw lock 1,5x150.

  • 70
    • Nr 70 Order code 71278078

      表盖密封圈

      Usage: Promag 400(C) = generation index C, Promag/Promass/Prosonic Flow 500 digital, transmitter housing Alu. Consists of: 10x O-Ring 196,40x3,53 HNBR, default and -50oC/-58oF.

    • Nr 70 Order code 71278077

      表盖聚碳酸酯垫圈

      Usage: Promag 400(C) = generation index C, Promag/Promass/Prosonic Flow 500 digital, transmitter housing polycarbonate. Consists of: 10x O-Ring 196,44x3,53 VMQ.

  • 24
    • Nr 24 Order code 71228796

      表盖

      Usage: Promag 400(C) = generation index C, Promag 500, Promag/Promass/Prosonic Flow 500 digital, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 HNBR.

    • Nr 24 Order code 71323050

      盖组件

      Usage: Promass/Prosonic Flow 500 digital, sensor connection housing. Consists of: cover Alu, O-Ring 113,90x3,53 FVMQ, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71323051

      外壳密封圈组件

      Usage: Promass/Prosonic Flow 500 digital, sensor connection housing. Consists of: O-Ring 113,90x3,53 HNBR for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323052

      外壳密封圈组件

      Usage: Promass/Prosonic Flow 500 digital, sensor connection housing. Consists of: O-Ring 113,90x3,53 FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 24
    • Nr 24 Order code 71323053

      盖组件

      Usage: Promass 500, Promag/Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket EPDM for cover.

    • Nr 24 Order code 71323054

      盖组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket FVMQ for cover, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71323057

      外壳密封圈组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: gasket EPDM for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323058

      外壳密封圈组件

      Usage: Promass 500, Promass 500 digital, sensor connection housing. Consists of: gasket FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 24
    • Nr 24 Order code 71185793

      不锈钢表盖

      Usage: Promag/Promass 100, Promag/Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket EPDM for cover.

    • Nr 24 Order code 71323060

      盖组件

      Usage: Promass 500 digital, sensor connection housing. Consists of: cover stainless 1.4301, gasket FVMQ for cover, -50oC/-58oF.

  • 73
    • Nr 73 Order code 71185799

      外壳密封圈

      Usage: Promass 100, Promass 500 digital, sensor connection housing. Consists of: gasket EPDM for cover, gasket EPDM for housing/sensor.

    • Nr 73 Order code 71323062

      外壳密封圈组件

      Usage: Promass 500 digital, sensor connection housing stainless. Consists of: gasket FVMQ for cover, -50oC/-58oF, gasket FVMQ for housing/sensor, -50oC/-58oF.

  • 71
    • Nr 71 Order code 71323071

      界面密封圈组件

      Usage: Promass 300/500, Prosonic Flow 300, transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface.

    • Nr 71 Order code 71323072

      界面密封圈组件

      Usage: Promass 300/500, Prosonic Flow 300, transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

  • 11
    • Nr 11 Order code 71323081

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 13
    • Nr 13 Order code 71276494

      卡箍紧固，螺丝

      Usage: Promass 100, Promag 100, Prosonic Flow E 100/E Heat, CNGmass, LPGmass, LNGmass. Sensor housing: Promag 400(C), (C) = generation index C, Promag/Promass 500, Promag/Promass/Prosonic Flow 500 digital. Consists of: cover clamp, screw M4x16.

  • 82
    • Nr 82 Order code 71228792

      显示保护盖

      Usage: Promag 400(C) = generation index C, Promag/Promass/Prosonic Flow 500 digital, transmitter housing Alu. Consists of: display protection 1.4301, installation material.

  • 87
    • Nr 87 Order code 71343504

      防护外壳组件

      Usage: Promag/Promass/Prosonic Flow 500 digital, transmitter housing. Consists of: weather protection cover 4404.

    • Nr 87 Order code 71343505

      防护外壳组件

      Usage: Promag/Promass 300/500, Prosonic Flow 300, transmitter housing. Consists of: weather protection cover 4404, installation material.

  • 替代产品

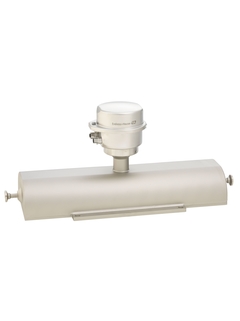

    • 产品图片：科里奥利流量计 Proline Promass A 500 / 8A5C，适用于过程应用

      Proline Promass A 500 / 8A5C

      单测量管流量计，用于极小流量的高精度测量，分体式仪表最多可以连接四路输入/输出。适用于所有行业中的极小流量测量。

比较产品
