此产品现已不再销售。
想要查看新产品,请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

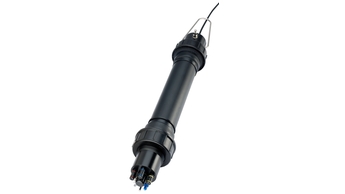

Measurement of ammonium and nitrate with
ionenselective electrodes in the
aeration basin of muncipal waste water
treatment plants.
Compressed air cleaning.
Options: pH-, potassium-or chloride-
compensation
-
替代产品
FLEX产品选型 仪表技术性能 选型便捷程度 - F
- L
- E
- X
Fundamental选型
完美胜任基本测量任务
仪表技术性能 选型便捷程度 - F
- L
- E
- X
Lean选型
轻松应对关键工艺的测量挑战
仪表技术性能 选型便捷程度 - F
- L
- E
- X
Extended选型
创新技术助力工艺流程优化
仪表技术性能 选型便捷程度 - F
- L
- E
- X
Xpert选型
满足严苛工况的特殊测量要求
仪表技术性能 选型便捷程度 特殊选型
-
测量原理
电位计/ ISE
-
特点
Online measurement of nutrient parameters
Ion-selective electrode system for the continuous measurement of
ammonium and nitrate -
尺寸
diameter 75mm , (2.95inch)
immersion depth 510mm , (20,1 inch) -
设计
Ion-selective electrode(s) for ammonium and/or nitrate
Reference electrode
Ion-selective electrode for compensating cross-interference
pH glass electrode -
过程温度
2°C ... 40°C
(36 ...100°F) -
环境温度
2°C ... 50°C
(36 ...120°F) -
过程压力
400 mbar (160 inH2O) max. permitted overpressure
-
应用
waste water
-
测量范围
Ammonium:
0.1 to 1000 mg/l (NH4-N)
• Nitrate:
0,1 to 1000 mg/l (NO3-N)
• Potassium:
1 to 1000 mg/l
• Chloride:
1 to 1000 mg/l
